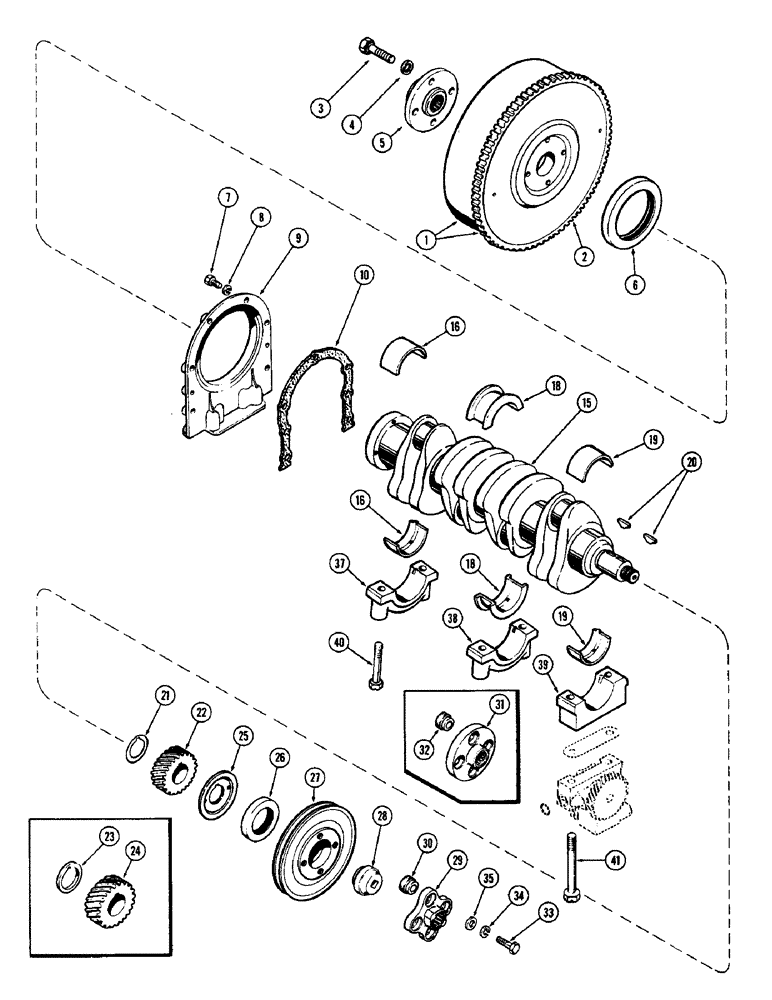

Запчасти Case 580B (064) - CRANKSHAFT AND FLYWHEEL, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

G11860

FLYWHEEL

ASSY., Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135 teeth)

1шт.

3

A37216

BOLT

- place

4шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- (29/64 x 3/4 x 16 ga.)

4шт.

5

A39338

HUB

- engine output shaft

1шт.

6

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2") (Replaces A39111)

1шт.

7

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer to block (1/4 x 3/4 N.C. hex.) (Grade 8)

4шт.

7

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer to block (1/4 x 1" N.C. hex.) (Grade 8)

3шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

9

A38390

RETAINER

- crankshaft rear oil seal

1шт.

10

A39188

GASKET

- crankshaft oil seal retainer

1шт.

15

A39146

CRANKSHAFT

1шт.

16

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

BEARING - main, crankshaft, rear (Std.) (Set of 2)

1шт.

16

A36496

LINING

LINER - main bearing, rear (.002" undersize)

1шт.

16

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (.010" undersize)

1шт.

16

A36498

KIT

LINER - main bearing, rear (.020" undersize)

1шт.

16

A36499

BEARING LINER

LINER - main bearing, rear (.030" undersize)

1шт.

18

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

BEARING - main, crankshaft, center (Std.) (Set of 2)

1шт.

18

A36491

LINING

LINER - main bearing, center (.002" undersize)

1шт.

18

A36943

LINER - main bearing, center (.020" undersize)

1шт.

18

A36494

LINING

LINER - main bearing, center (.030" undersize)

1шт.

19

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

BEARING - main, crankshaft, front (Std.) (Set of 2)

1шт.

19

A36481

LINING

LINER - main bearing, front (.002" undersize)

1шт.

19

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (.010" undersize)

1шт.

19

A36483

LINING

LINER - main bearing, front (.020" undersize)

1шт.

19

A36484

LINING

LINER - main bearing, front (.030" undersize)

1шт.

20

A39132

KEY

- crankshaft

2шт.

21

A29293

SHIM,.010" Thk

Thrust, Crankshaft front bearing .010" Thk

1шт.

22

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide) (Replaces A29294 spacer & A29263 gear)

1шт.

23

A29294

BUSHING

SPACER - thrust (Use w/A29263 gear)

1шт.

24

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide) (Order A39288)

1шт.

25

A29259

SLINGER

- oil, crankshaft

1шт.

26

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front, crankshaft (2 x 3 x 1/2")

1шт.

27

A50962

PULLEY

- fan drive (Replaces G11342 & A39931)

1шт.

28

A35673

NUT

- fan drive, Serial Range: pulley-crankshaft

1шт.

29

A51885

COUPLING, BREAK AWAY

COUPLING ASSY. - pump drive (Replaces A35558), Includes: Ref. 30

1шт.

30

A45216

BUSHING

- coupling

4шт.

31

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - pump drive (Order A51885), Includes: Ref. 32

1шт.

32

G36905

BLOCK

BUSHING - flex

4шт.

33

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Coupling to pulley

4шт.

34

92-7

LOCK WASHER,7/16"

4шт.

35

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- (29/64 x 3/4 x 16 ga.)

4шт.

37

G2062

CAP - crankshaft main bearing, rear

1шт.

38

G2060

CAP - crankshaft main bearing, center

1шт.

39

G2059

CAP - crankshaft main bearing, front

1шт.

40

G49038

BOLT - place, center & rear bearing cap

4шт.

41

G49059

BOLT

- place, oil pump & front bearing

2шт.
