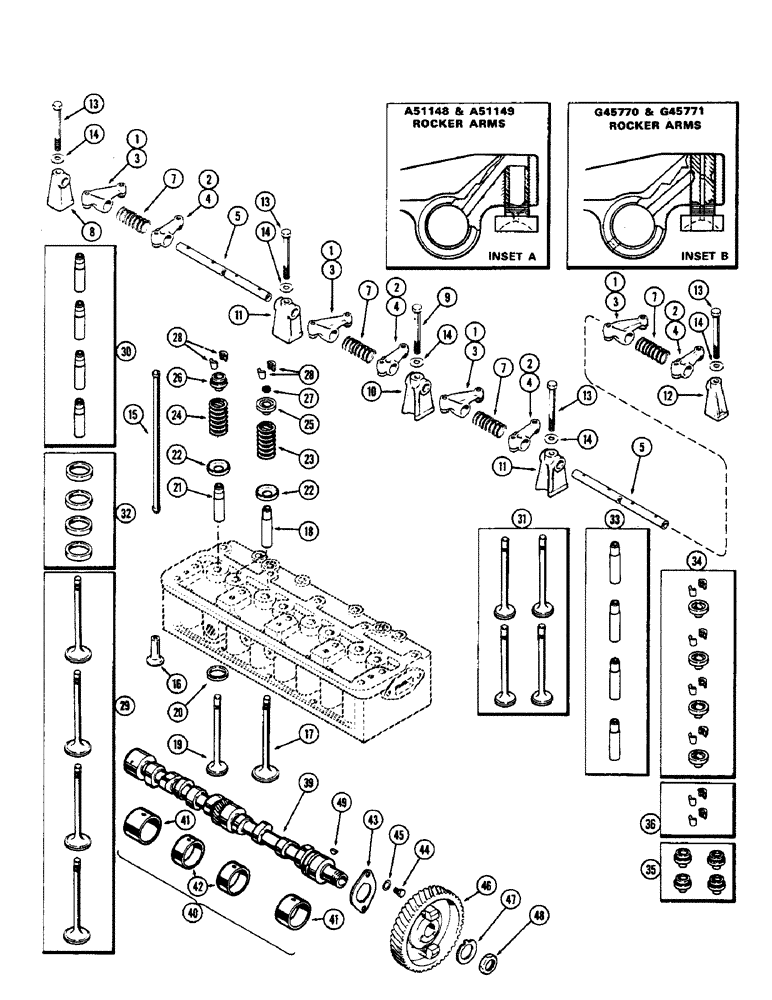

Запчасти Case 580B (060) - VALVE MECHANISM AND CAMSHAFT, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A51149

ARM

ASSY. - rocker, left hand, w/adj. screw (1st used eng. ser. No. 2715764) (See inset A)

4шт.

2

A51148

ARM

ASSY. - rocker, right hand, w/adj. screw (1st used eng. ser. No. 2715764) (See inset A)

4шт.

3

G45771

ARM

ASSY. - rocker, left hand, w/adj. screw (Used prior to eng. ser. No. 2715764) (See inset B)

4шт.

4

G45770

ARM

ASSY. - rocker, right hand, w/adj. screw (Used prior to eng. ser. No. 2715764) (Inset B)

4шт.

5

A38181

SHAFT

- rocker arm

2шт.

7

G48501

SPRING

- rocker shaft

4шт.

8

A36615

BRACKET

- rocker arm, rear end

1шт.

9

G49067

BOLT

- center bracket with drilled hole

1шт.

10

G2101

BRACKET

- rocker arm, center

1шт.

11

G2102

BRACKET

- rocker arm, intermediate

2шт.

12

G2100

BRACKET

- rocker arm, front end

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

4шт.

14

A30058

WASHER

- 3/8 x 7/8 x 1/8"

5шт.

15

G47129

PUSH ROD

ROD - valve push

8шт.

16

A30006

TAPPET

LIFTER - valve push rod

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 29)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 33)

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 31)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 32)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 30)

4шт.

22

G49065

SEAT

- valve spring

8шт.

23

A30025

SPRING

- intake valve (2-3/8" free length)

4шт.

24

G10004

SPRING

- exhaust valve (2-3/16" free length)

4шт.

25

NSS

NOT SOLD SEPARAT

RETAINERS - intake valve springs (Order ref. 34)

4шт.

26

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 25)

4шт.

27

G46851

SEAL

- rubber, intake valve

4шт.

28

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer (Order ref. 36)

16шт.

29

G11987

VALVE

KIT - intake (Set of 4)

1шт.

30

G11946

GUIDE

KIT - exhaust valve stem (Set of 4)

1шт.

31

A43047

VALVE

KIT - exhaust (Set of 4)

1шт.

32

G11986

KIT

INSERT KIT - exhaust valve seat (Set of 4)

1шт.

33

G11861

GUIDE

KIT - intake valve stem (Set of 4)

1шт.

34

G11927

RETAINER

KIT - valve spring (Set of 4 w/locks)

1шт.

35

G11928

CAP

ROTO-CAP - exhaust valve (Set of 4)

1шт.

36

G11929

LOCK

KIT - retainer (Set of 4)

4шт.

39

G2091

CAMSHAFT

1шт.

40

A41229

BUSHING

KIT - camshaft bushing (Set of 4), Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1/2" wide)

2шт.

43

A29290

PLATE

- thrust, camshaft

1шт.

44

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - camshaft thrust plate

2шт.

45

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

46

G37066

GEAR

- camshaft

1шт.

47

A29438

LOCK NUT

LOCK - camshaft nut

1шт.

48

A30063

NUT

- camshaft

1шт.

49

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.
