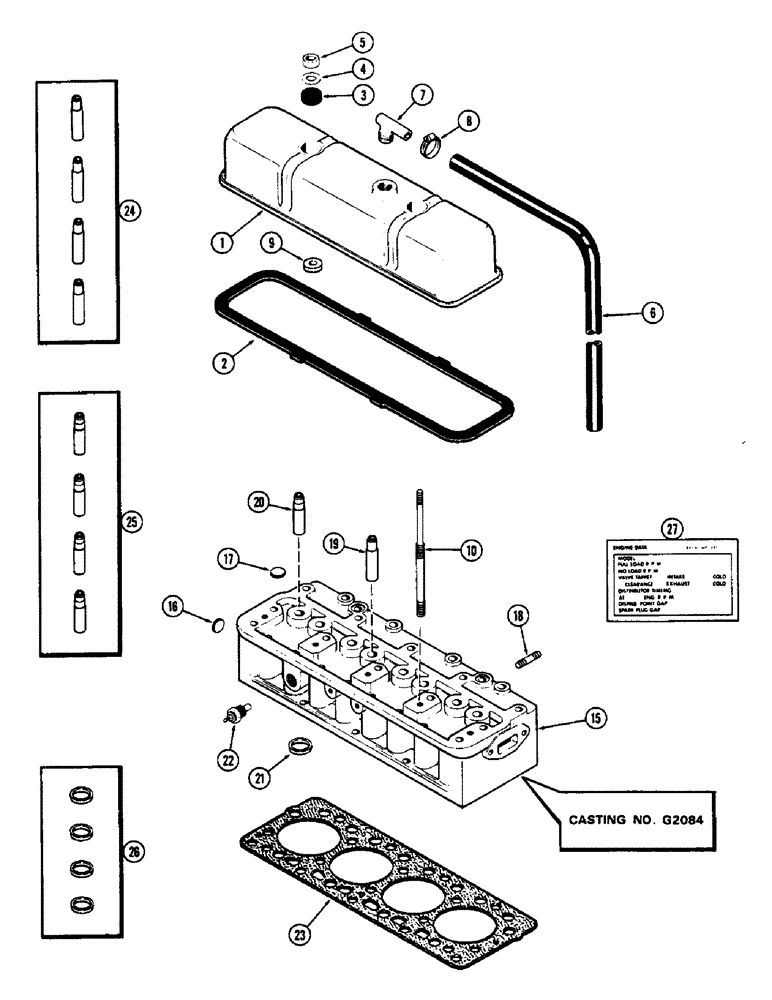

Запчасти Case 580B (058) - CYLINDER HEAD AND COVER, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A36815

COVER

ASSY. - cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cylinder head cover

1шт.

3

G46867

GROMMET

- cylinder head cover studs

2шт.

4

G49400

WASHER

- cylinder head cover

2шт.

5

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

6

A39570

HOSE

- cylinder head breather

1шт.

7

A9155

90 ELBOW

- cylinder head breather

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16 to 1-1/16")

1шт.

9

G11352

BUSHING

SPACER - cylinder head cover

2шт.

10

A36780

STUD

- cover

2шт.

15

A39270

HEAD

ASSY. - cylinder (Stripped) (Casting No. #G2084), Includes: Ref. 16 - 21

1шт.

16

41-18

PLUG

- expansion (1-1/8" dia., steel)

1шт.

17

41-13

GUARD,Exp, 13/16"

- expansion (13/16")

2шт.

18

A29431

STUD

- (3/8 x 1-3/4")

7шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - valve stem intake (Order Ref. No. 24)

4шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - valve stem exhaust (Order Ref. No. 25)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. No. 26)

4шт.

22

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

23

A36585

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

1шт.

24

G11861

GUIDE

KIT - intake valve stem (Set of 4)

1шт.

25

G11946

GUIDE

KIT - exhaust valve stem (Set of 4)

1шт.

26

A43048

KIT

INSERT KIT - exhaust valve stem (Set of 4)

1шт.

27

321-1827

DECAL - engine data

1шт.
