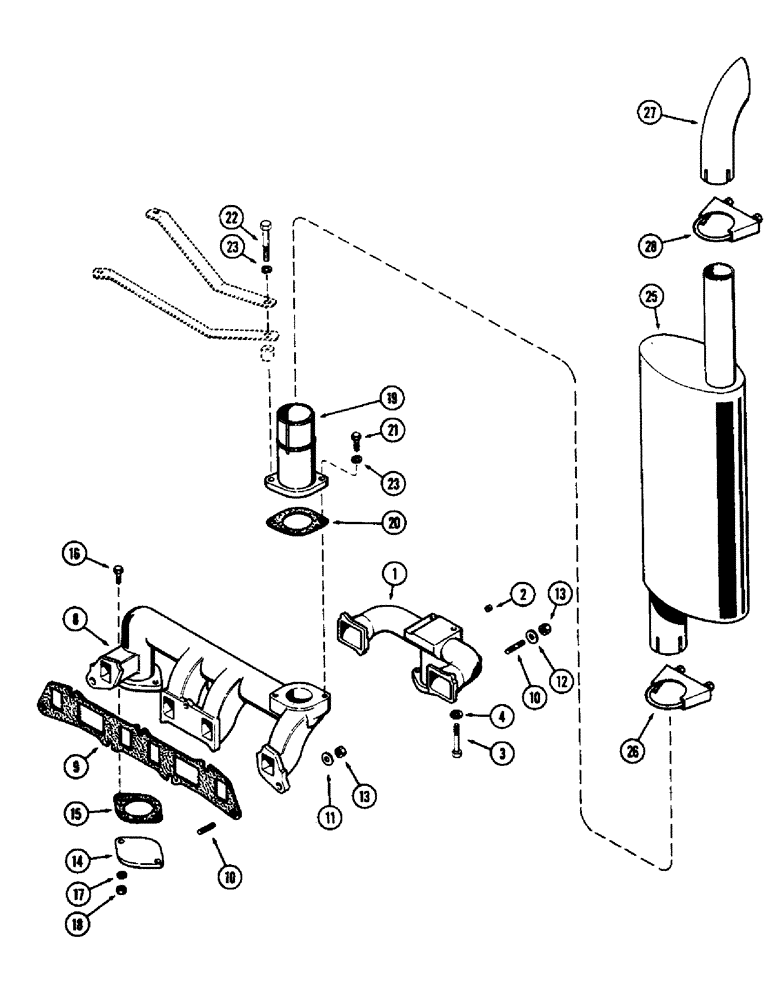

Запчасти Case 580B (056) - MANIFOLD AND MUFFLER, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A37170

MANIFOLD

- intake

1шт.

2

221-12

PLUG,Sq Hd, 1/4"-18

- pipe (1/4" P.T. square head) (Intake manifold)

1шт.

3

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

8

G2097

MANIFOLD

- exhaust

1шт.

9

G46868

MANIFOLD GASKET

- manifold (To head)

1шт.

10

A29431

STUD

- (3/8" N.C. x 1-3/4")

7шт.

11

A30058

WASHER

- stud, Serial Range: manifold-head

4шт.

12

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

13

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex)

7шт.

14

A38188

PLATE

- exhaust manifold outlet cover

1шт.

15

G46853

MANIFOLD GASKET

- exhaust manifold outlet plate

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

2шт.

17

185-25

WASHER - plain (3/8")

2шт.

18

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex.)

2шт.

19

G2095

FITTING

OUTLET - exhaust manifold

1шт.

20

G46853

MANIFOLD GASKET

- exhaust manifold outlet

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

1шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

1шт.

23

92-6

LOCK WASHER,3/8"

2шт.

25

A39561

MUFFLER

- upright

1шт.

26

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

27

A39571

PIPE, EXHAUST SYSTEM

EXTENSION - muffler

1шт.

28

G45410

CLAMP

- muffler extension

1шт.
