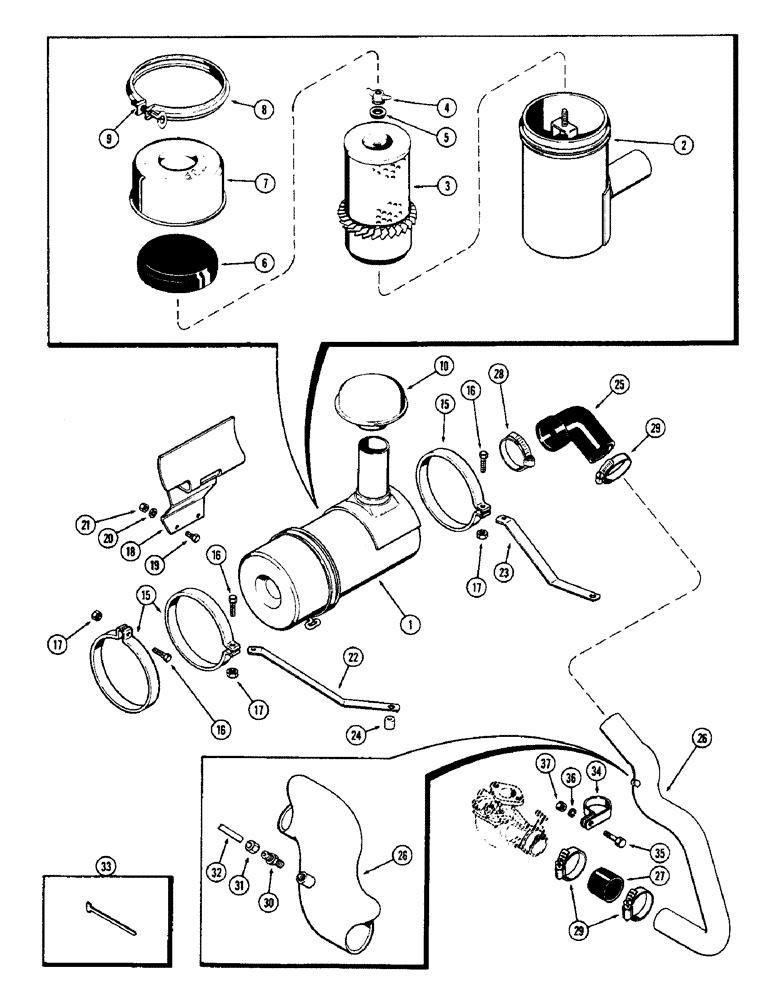

Запчасти Case 580B (054) - AIR CLEANER, (188) SPARK IGNITION ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A39346
AIR CLEANER
CLEANER ASSY. - air, Includes: Ref. 2 - 9
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - air cleaner
1шт.
3
A42274
AIR FILTER
ELEMENT - cleaner
1шт.
4
F91761
WING NUT
- wing, element retaining (Replaced D37977)
1шт.
5
D37976
GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk
- seal, element retaining nut
1шт.
6
F22312
BAFFLE
- rubber
1шт.
7
F91760
CUP
- air cleaner access
1шт.
8
F84999
CLAMP,168.28mm
ASSY. - cup retaining
1шт.
9
25-224
SQUARE NUT,Sq, 1/4"-20
- (1/4" N.C. hex.)
1шт.
10
A61276
AIR CLEANER
CAP - air inlet
1шт.
15
A39347
BAND
- mounting, air cleaner
3шт.
16
113-132
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
- (1/4 x 1-3/4" N.C. hex.) (Plated)
3шт.
17
131-48
LOCK NUT,1/4"-20, GB
NUT - (1/4" N.C. ESNA lock)
3шт.
18
A39348
BRACKET
- mounting, air cleaner
1шт.
19
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
2шт.
20
92-6
LOCK WASHER,3/8"
2шт.
21
25-106
NUT,3/8"-16, G5
- (3/8" N.C. hex.)
2шт.
22
A39350
STRAP
- air cleaner support
1шт.
23
A39607
STRAP
- support, air cleaner
1шт.
24
71029
SPACER - support strap
1шт.
25
A39357
HOSE
- air cleaner to air tube
1шт.
26
A39524
TUBE
- air, Serial Range: cleaner-carburetor
1шт.
27
G46157
AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L
HOSE, 2.00" ID x 2.00", SAE 20R2 - Carburetor to Air Tube
1шт.
28
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
CLAMP - hose (2-5/16 to 3-1/4")
1шт.
29
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
3шт.
30
D36264
FITTING
FILTER - safety
1шт.
31
222-5130
FITTING,7/16"-24 x 1/8" NPT Fem
COUPLING - vacuum tube to filter (3/8" P.T. for 1/4" tube)
1шт.
32
A39527
TUBE - vacuum
1шт.
33
L11541
CABLE TIE,203.2mm L, Nylon
STRAP - vacuum tube to tachometer cable
1шт.
34
A39356
CLAMP - air cleaner tube
1шт.
35
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
- (5/8 x 1-3/4" N.C. hex.)
1шт.
36
92-6
LOCK WASHER,3/8"
1шт.
37
25-106
NUT,3/8"-16, G5
- (5/8" N.C. hex.)
1шт.
Выбрано товаров: 33
