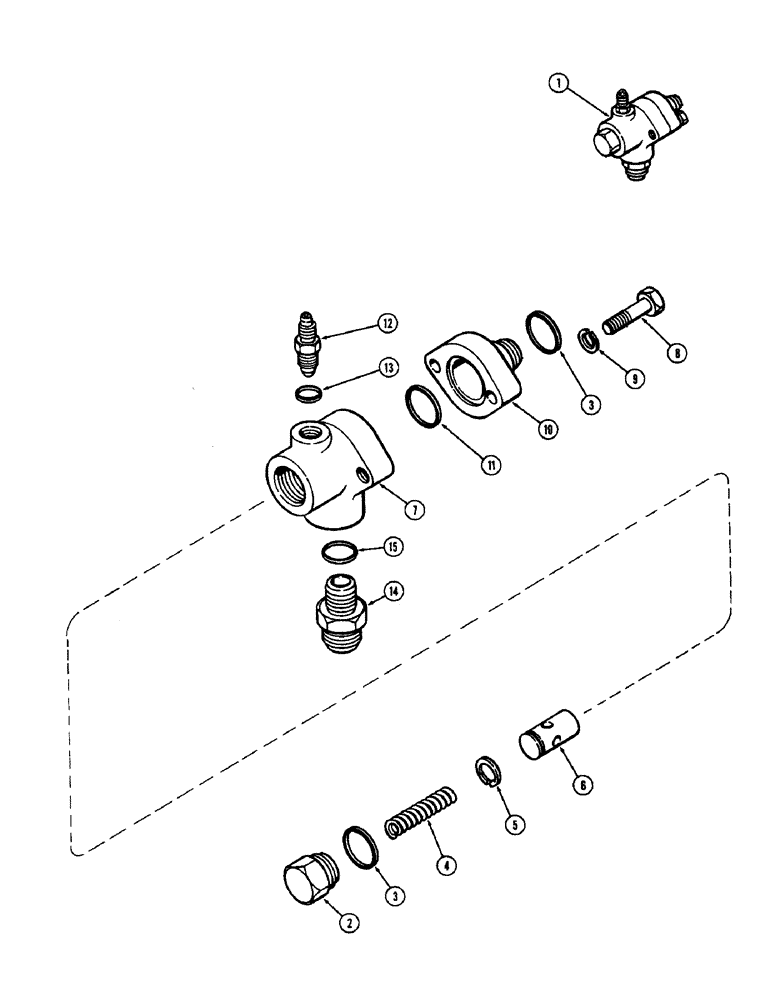

Запчасти Case 580B (050) - OIL FILTER PRESSURE VALVE, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A39583

CYLINDER END CAP

VALVE ASSY. - oil filter pressure, Includes: Ref. 2 - 15

1шт.

2

A39586

PLUG

- valve body

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - valve body plug

2шт.

4

A23082

SPRING

- valve spool

1шт.

5

A60273

SNAP RING,#62, Ext

Ring, Snap, , valve spool #62, Ext

1шт.

6

A39585

SPOOL - valve metering

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve (Order A39583)

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

A39587

FITTING - flange

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

RING - swivel head

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSY. - straight (1/4" tube x 7/16" P.T.), Incl. Ref. 13

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - straight (5/8" tube x 7/8" P.T.), Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.
