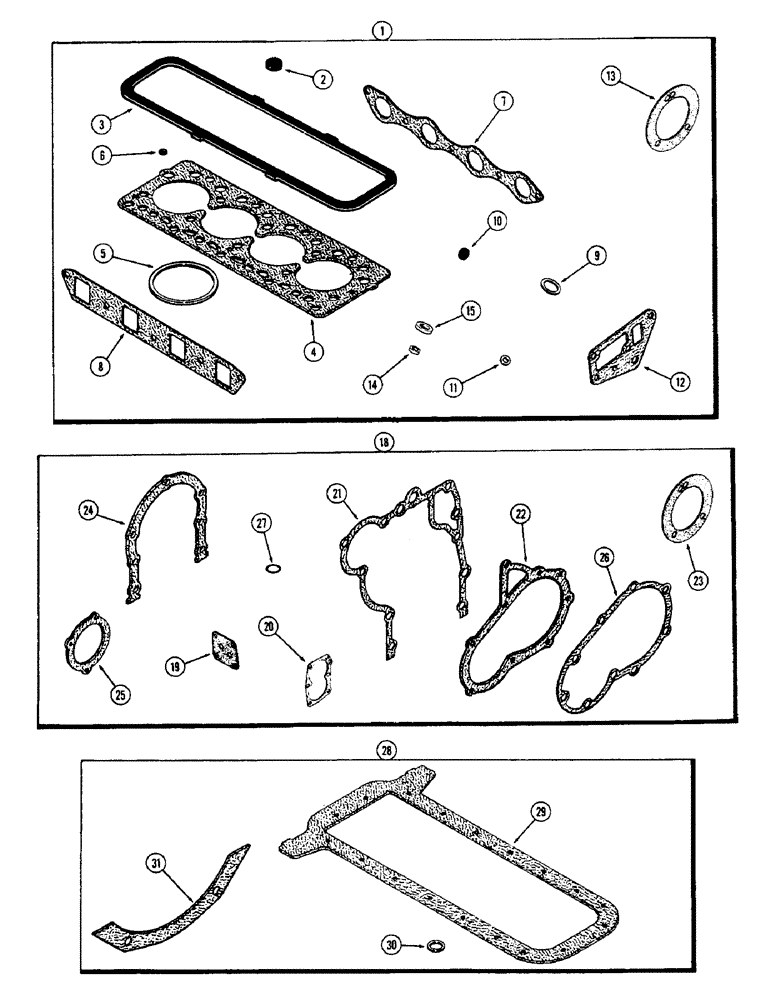

Запчасти Case 580B (033A) - ENGINE GASKET KITS, (188) DIESEL ENGINE, USED PRIOR TO ENG. SN 2711005 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A42001
GASKET
VALVE GRIND GASKET KIT - (See Note), Includes: Ref. 2 - 15
1шт.
2
G46867
GROMMET
- cylinder head cover, rubber
2шт.
3
A43030
GASKET,3.05mm Thk
- cylinder head cover
1шт.
4
13490891C1
- cylinder head
1шт.
5
A38639
RING
- fire, cylinder head gasket
4шт.
6
G46851
SEAL
- valve stem, rubber
8шт.
7
G46872
MANIFOLD GASKET
- manifold, exhaust
1шт.
8
G46871
GASKET
- manifold, intake
1шт.
9
G49068
GASKET
- fuel injector seat (Not applicable)
4шт.
10
222-101
SLEEVE,3/16" Tube
- for (Not applicable) 3/16" Tube
4шт.
10
222-103
SLEEVE,5/16" Tube
(Not applicable) 5/16" Tube
2шт.
11
G49407
WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk
WASHER - injection lines
8шт.
12
A38084
GASKET,1.27mm Thk
- timing gear cover, upper
1шт.
13
A38083
GASKET
- water pump
1шт.
14
A41402
SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk
- carbon stop, fuel injector
4шт.
15
A41403
WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk
- fuel injector
4шт.
18
A43198
GASKET
CYL. BLOCK GASKET KIT - (Replaced A41426) (See Note), Includes: Ref. 19 - 25
1шт.
19
G46854
GASKET
- oil filter bracket (Not applicable)
1шт.
20
G46852
GASKET
- oil pump cover
1шт.
21
A51529
GASKET
- timing gear cover, lower (Replaced A38228)
1шт.
22
G46859
GASKET
- timing gear cover, front
1шт.
23
A38083
GASKET
- water pump
1шт.
24
A39188
GASKET
- rear oil seal retainer
1шт.
25
A30042
GASKET
- power steering pump
1шт.
26
A39925
GASKET
- inj. pump drive gear cover (Not applicable), Includes: Ref. 27
1шт.
27
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O" RING - water pump body (Not applicable)
1шт.
28
A43064
GASKET
OIL PAN GASKET KIT - (See Note), Includes: Ref. 29 - 31
1шт.
29
NSS
NOT SOLD SEPARAT
GASKET - oil pan (Order A43064)
1шт.
30
A58608
GASKET
- drain plug, nylon
1шт.
31
G46913
GASKET
- block to torque tube (Not applicable)
1шт.
Выбрано товаров: 30
