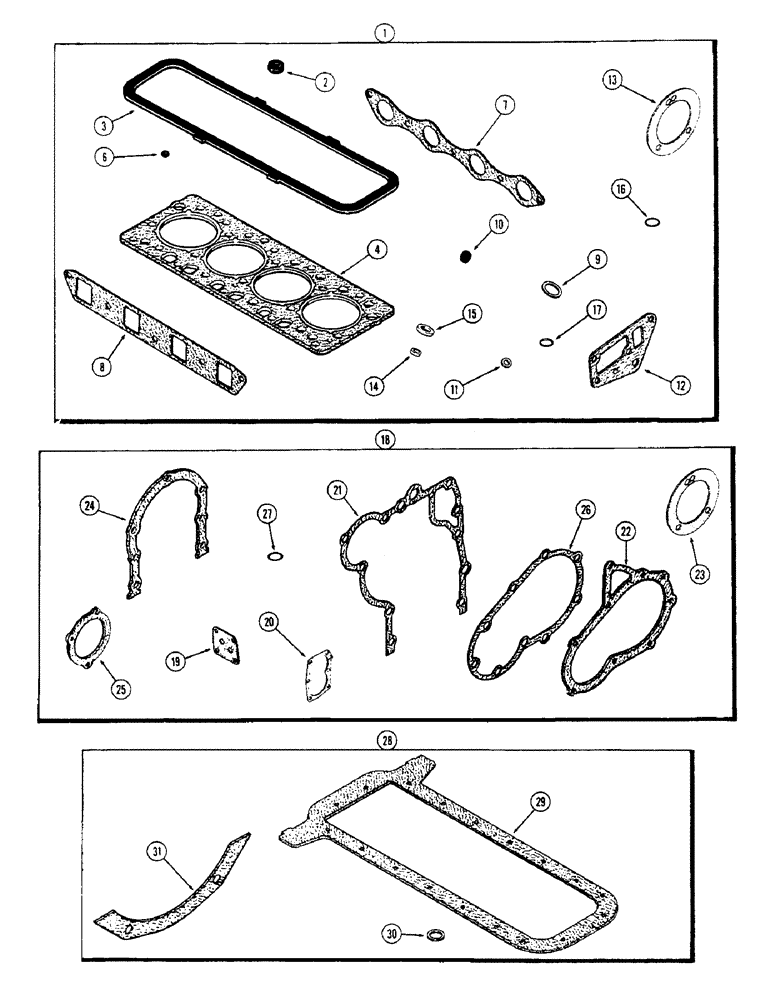

Запчасти Case 580B (032) - ENGINE GASKET KITS, (188) DIESEL ENGINE, 1ST USED ENG. SN 2711005 (02) - ENGINE

1

A43193

GASKET

KIT - valve grind (Replaced A43069 (See Note), Includes: Ref. 2 - 17

1шт.

2

G46867

GROMMET

- valve cover stud (Rubber)

2шт.

3

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

4

A39279

GASKET

- cylinder head

1шт.

6

G46851

SEAL

- valve stem (Rubber)

8шт.

7

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

8

G46871

GASKET

- manifold, intake

1шт.

9

G49068

GASKET

- fuel injector seat (Not applicable)

4шт.

10

222-101

SLEEVE,3/16" Tube

- for (Not applicable) 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

(Not applicable) 5/16" Tube

2шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection lines

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover, upper

1шт.

13

A38083

GASKET

- water pump

1шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, fuel injector

4шт.

15

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- fuel injector

4шт.

16

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body

1шт.

17

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - intake manifold mounting stud

3шт.

18

A43198

GASKET

CYLINDER BLOCK GASKET KIT - (Replaced A41426), Includes: Ref. 19 - 27

1шт.

19

G46854

GASKET

- oil filter bracket (Not applicable)

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A51529

GASKET

- timing gear cover, lower (Replaced A38228)

1шт.

22

G46859

GASKET

- timing gear cover, front

1шт.

23

A38083

GASKET

- water pump

1шт.

24

A39188

GASKET

- rear oil seal retainer

1шт.

25

A30042

GASKET

- power steering pump

1шт.

26

A39925

GASKET

- inj. pump drive gear cover (Not applicable)

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body (Not applicable)

1шт.

28

A43064

GASKET

OIL PAN GASKET KIT - (See Note), Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43064)

1шт.

30

A58608

GASKET

- drain plug (Nylon)

1шт.

31

G46913

GASKET

- block to torque tube (Not applicable)

1шт.
