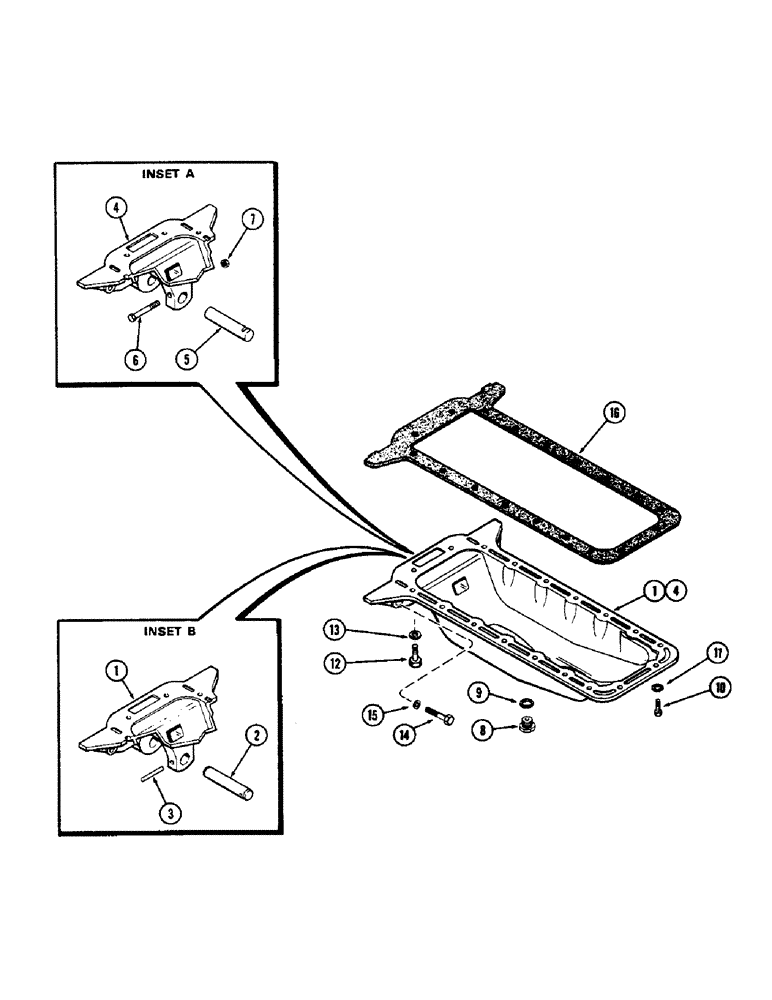

Запчасти Case 580B (031A) - OIL PAN, (188) DIESEL ENGINE (02) - ENGINE

1

A38425

PAN

- oil (Used w/A51356 radius rod rear pivot pin & 135-361 groove pin) (See Inset A) (Order 1-A51539 oil pan, 1-A51537 pivot pin, 1-26-544 bolt & 1-131-351 nut)

1шт.

2

A51536

SPOOL

PIN - radius rod rear pivot

1шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

Pin, Grooved, 1/4" x 2", Type F

1шт.

4

A51539

PAN

- oil (Used with A51537 pivot pin, 26-544 bolt & 1-131-351 nut) (See Inset B)

1шт.

5

A51537

PIN

- radius rod rear pivot

1шт.

6

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- (5/16 x 2-3/4" N.C. hex.)

1шт.

7

131-351

LOCK NUT,5/16"-18, GA

NUT - lock (5/16" N.C. hex.)

1шт.

8

A14280

PLUG

- drain

1шт.

9

A58608

GASKET

- drain plug, nylon

1шт.

10

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- 5/16 x 1-3/4" N.C. hex.

14шт.

10

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

11

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - Shakeproof, 5/16" ext.

16шт.

12

26-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

- (5/16 x 4" N.C. hex.)

2шт.

13

195-1019

WASHER

- 11/32 x 7/8 x 1/16", brass

2шт.

14

113-663

BOLT (SPREADER)

BOLT - (5/8 x 2-1/4" N.C. hex.) (Oil pan to torque tube)

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43064 Figure 32)

1шт.
