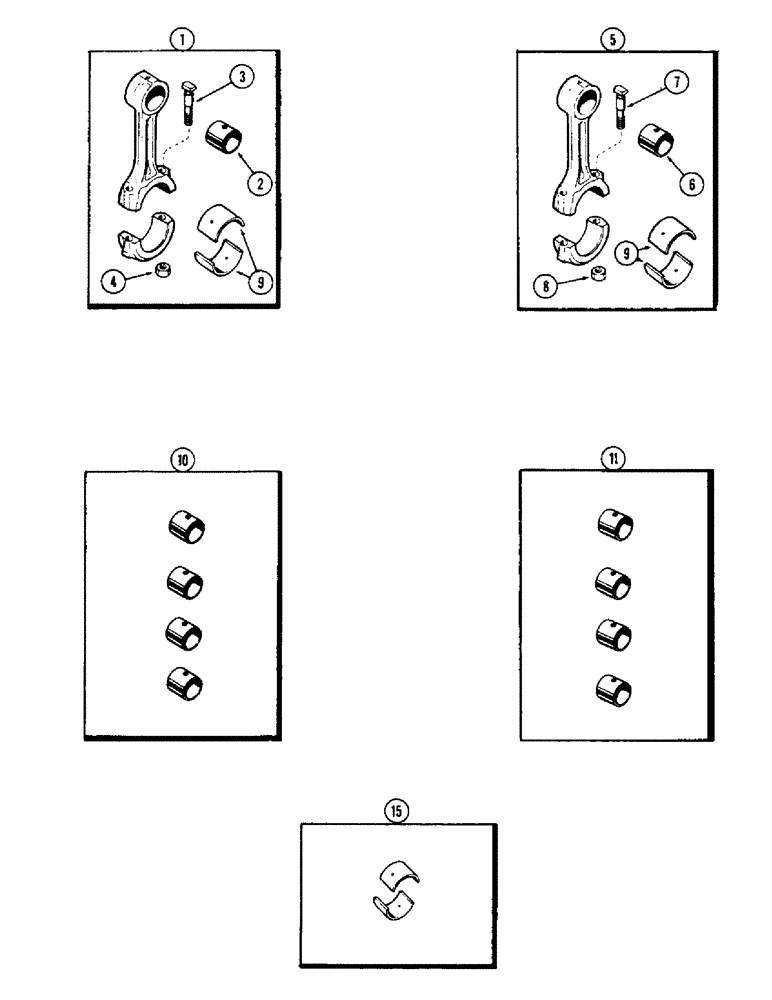

Запчасти Case 580B (029A) - CONNECTING RODS, (188) DIESEL ENGINE (02) - ENGINE

1

A136931

ROD, CONNECTING

ROD ASSY. - connecting (w/1-5/16" wide pin boss) (1st used eng. ser. no. 2767997), Includes: Ref. 2 - 4

4шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Split type 1-5/16" wide) (Order ref. 10)

1шт.

3

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

4

A51904

NUT

NUT - conn. rod, 3/8" N.F.

2шт.

5

G11847

ROD

ASSY. - connecting (w/1-1/4" wide pin boss) (Used prior to eng. ser. no. 2767997), Includes: Ref. 6 - 8

4шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Solid type 1-1/4" wide) (Order ref. 11)

1шт.

7

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

8

A51904

NUT

NUT - conn. rod, 3/8" N.F.

2шт.

9

NSS

NOT SOLD SEPARAT

LINER - conn. rod bearing (Order ref. 15)

4шт.

10

A44083

KIT

BUSHING SET - (Set of 4 split type 1-5/16" wide) (1st used eng. ser. no. 2767997)

1шт.

11

G11953

BUSHING

SET - (Set of 4 solid type 1-1/4" wide) (Used prior to eng. ser. no. 2767997)

1шт.

15

A36500

SEAL

LINER - conn. rod brg. (Std.)

4шт.

15

A36501

BEARING LINER

LINER - conn. rod brg. (.002" undersize)

4шт.

15

A36502

LINING

LINER - conn. rod brg. (.010" undersize)

4шт.

15

A36503

BEARING LINER

LINER - conn. rod brg. (.020" undersize)

4шт.

15

A36504

KIT

LINER - conn. rod brg. (.030" undersize)

4шт.
