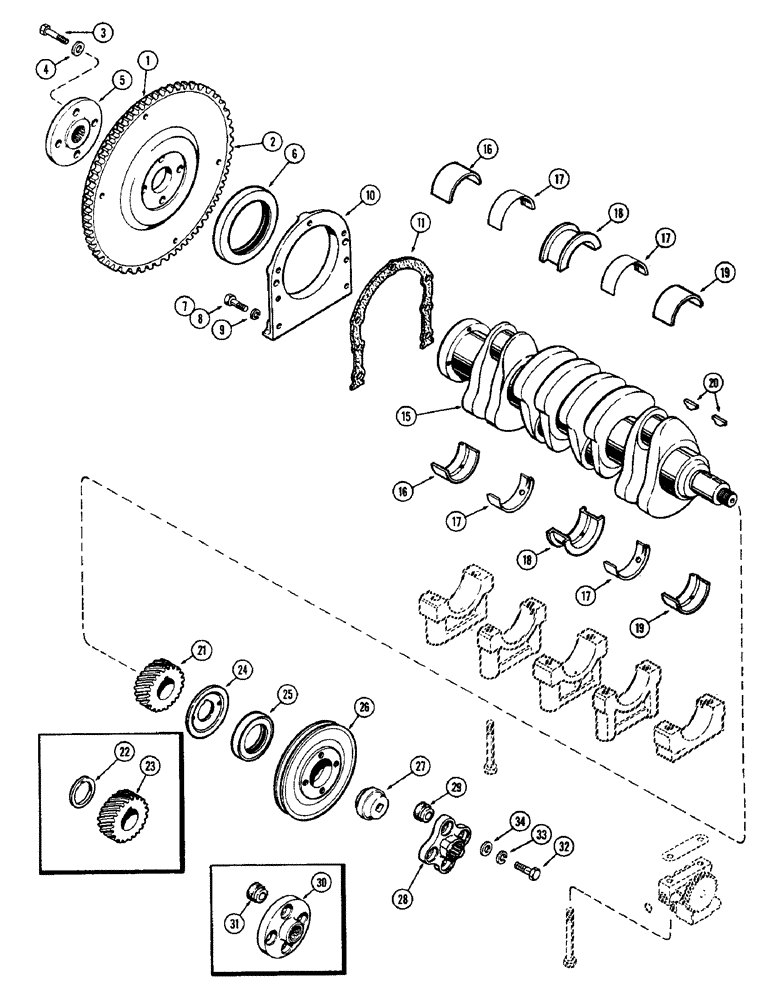

Запчасти Case 580B (026) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE (02) - ENGINE

1

A39336

FLYWHEEL

ASSY., Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135 teeth)

1шт.

3

A37216

BOLT

- place

4шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.

5

A39338

HUB

- engine output shaft

1шт.

6

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2) (Replaces A39111)

1шт.

A51339 rear oil seal - The seal wear ring repair kit for this part is A49851.

1шт.

7

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- (1/4 x 3/4" N.C. hex.) (1st used eng. ser. no. 2728315)

4шт.

7

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- (1/4 x 1" N.C. hex.) (1st used eng. ser. no. 2728315)

3шт.

8

113-25

X

BOLT - 1/4 x 3/4" N.C. hex. (Used prior to eng. ser. no. 2728315)

4шт.

8

113-26

BOLT

- 1/4 x 1" N.C. hex. (Used prior to eng. ser #2728315)

3шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

10

A38390

RETAINER

- rear oil seal

1шт.

11

A39188

GASKET

- retainer

1шт.

15

A39146

CRANKSHAFT

- (With internal spline)

1шт.

16

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (Std.)

1шт.

16

A36496

LINING

LINER - main bearing, rear (.002" undersize)

1шт.

16

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER - main bearing, rear (.010" undersize)

1шт.

16

A36498

KIT

LINER - main bearing, rear (.020" undersize)

1шт.

16

A36499

BEARING LINER

LINER - main bearing, rear (.030" undersize)

1шт.

17

A36485

LINING

LINER - main bearing, intermediate (Std.)

2шт.

17

A36486

LINING

LINER - main bearing, intermediate (.002" undersize)

2шт.

17

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER - main bearing, intermediate (.010" undersize)

2шт.

17

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER - main bearing, intermediate (.020" undersize)

2шт.

17

A36489

LINING

LINER - main bearing, intermediate (.030" undersize)

2шт.

18

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (Std.)

1шт.

18

A36491

LINING

LINER - main bearing, center (.002" undersize)

1шт.

18

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (.010" undersize)

1шт.

18

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main bearing, center (.020" undersize)

1шт.

18

A36494

LINING

LINER - main bearing, center (.030" undersize)

1шт.

19

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (Std.)

1шт.

19

A36481

LINING

LINER - main bearing, front (.002" undersize)

1шт.

19

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER - main bearing, front (.010" undersize)

1шт.

19

A36483

LINING

LINER - main bearing, front (.020" undersize)

1шт.

19

A36484

LINING

LINER - main bearing, front (.030" undersize)

1шт.

20

A39132

KEY

- pulley &, Serial Range: gear-crankshaft

2шт.

21

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide) (Replaces A29294 spacer & A29263 gear)

1шт.

22

A29294

BUSHING

SPACER - thrust, crankshaft (Only w/A29263 gear)

1шт.

23

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide) (Order A39288)

1шт.

24

A29259

SLINGER

- oil

1шт.

25

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

A39110 front oil seal - The seal wear ring repair kit for this part is A155893.

1шт.

26

A50962

PULLEY

- fan drive (Replaces G11342 & A39931)

1шт.

27

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

28

A51885

COUPLING, BREAK AWAY

COUPLING ASSY. - pump drive (Replaces A35558), Includes: Ref. 29

1шт.

29

A45216

BUSHING

- coupling

4шт.

30

D140524

FLEXIBLE COUPLING,13T

COUPLING - pump drive (Order A51885), Includes: Ref. 31

1шт.

31

G36905

BLOCK

BUSHING - coupling

4шт.

32

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

33

92-7

LOCK WASHER,7/16"

4шт.

34

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.
