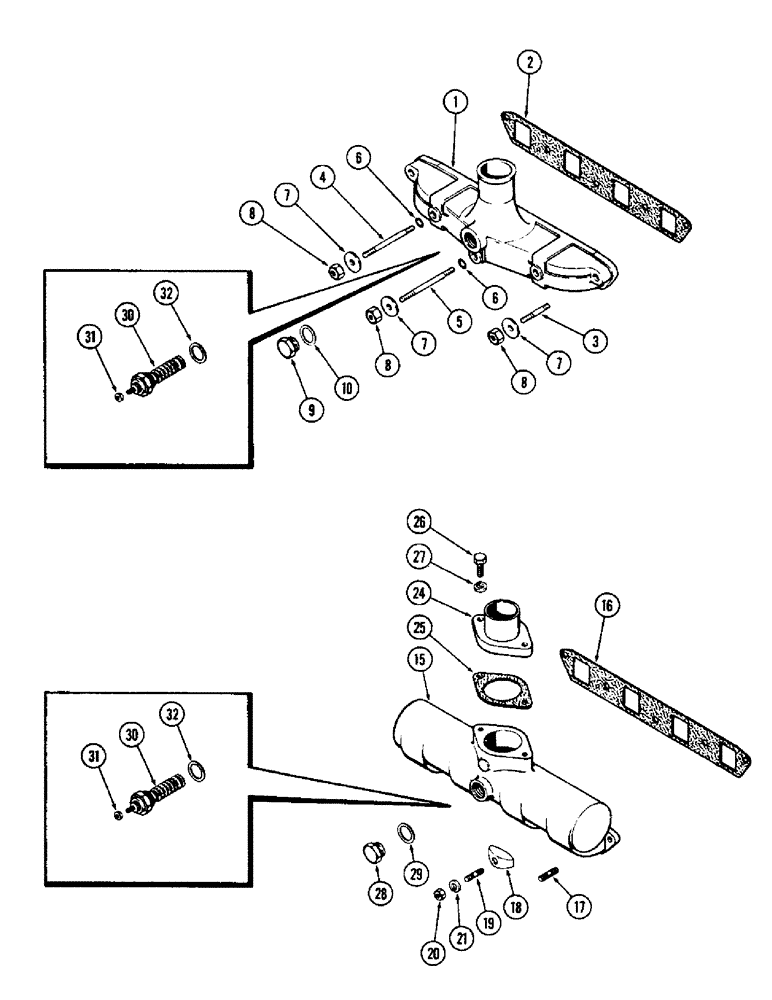

Запчасти Case 580B (018) - INTAKE MANIFOLD (ALUMINUM), (188) DSL ENG, 1ST ENG SN 8740820 (02) - ENGINE

1

A51501

TUBE

MANIFOLD - intake (Aluminum)

1шт.

2

G46871

GASKET

, Serial Range: manifold-head

1шт.

3

A35175

STUD

manifold to head (3/8" N.C. x 2-7/17")

2шт.

4

A51499

STUD

- manifold to head (3/8" N.C. x 4-5/16")

2шт.

5

A51500

STUD

manifold to head (3/8" N.C. x 5-5/16")

1шт.

6

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

manifold stud (3/8 x 9/16 x 3/32")

3шт.

7

D41740

WASHER

plain, manifold stud (25/64 x 1 x 7/64")

5шт.

8

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

5шт.

9

A20917

PLUG

manifold (Heater hole)

1шт.

10

A20916

MANIFOLD GASKET

plug

1шт.

15

A35782

MANIFOLD

- intake (Cast iron) used prior eng. s/n 8740820

1шт.

16

G46871

GASKET

manifold to head, intake (Cast iron) used prior eng. s/n 8740820

1шт.

17

A29431

STUD

manifold to head (3/8" N.C. x 1-3/4"), intake (Cast iron) used prior eng. s/n 8740820

2шт.

18

A35028

CLAMP

manifold to head, intake (Cast iron) used prior eng. s/n 8740820

3шт.

19

A39129

STUD

- manifold clamp (3/8" N.C. x 2-1/16"), intake (Cast iron) used prior eng. s/n 8740820

3шт.

20

25-106

NUT,3/8"-16, G5

3/8" N.C. hex., intake manifold(Cast iron) used prior eng. s/n 8740820

5шт.

21

92-6

LOCK WASHER,3/8"

intake manifold (Cast iron) used prior eng. s/n 8740820 3/8"

5шт.

24

A37098

FLANGE

inlet, air cleaner tube, intake manifold (Cast iron) used prior eng. s/n 8740820

1шт.

25

D22670

GASKET

flange, intake manifold (Cast iron) used prior eng. s/n 8740820

1шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Intake manifold (Cast iron) used prior eng. S/N 8740820 Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

intake manifold (Cast iron) used prior eng. s/n 8740820 3/8"

2шт.

28

A20917

PLUG

(Heater hole), intake manifold (Cast iron) used prior eng. s/n 8740820

1шт.

29

A20916

MANIFOLD GASKET

plug, intake manifold (Cast iron) used prior eng. s/n 8740820

1шт.

30

A37775

HEATER

ASSY. -manifold heater, if equip.

1шт.

31

129-503

NUT,1/4"-20, Brass

Manifold heater, if equip. 1/4"-20, Brass

1шт.

32

A20916

MANIFOLD GASKET

manifold heater, if equip.

1шт.
