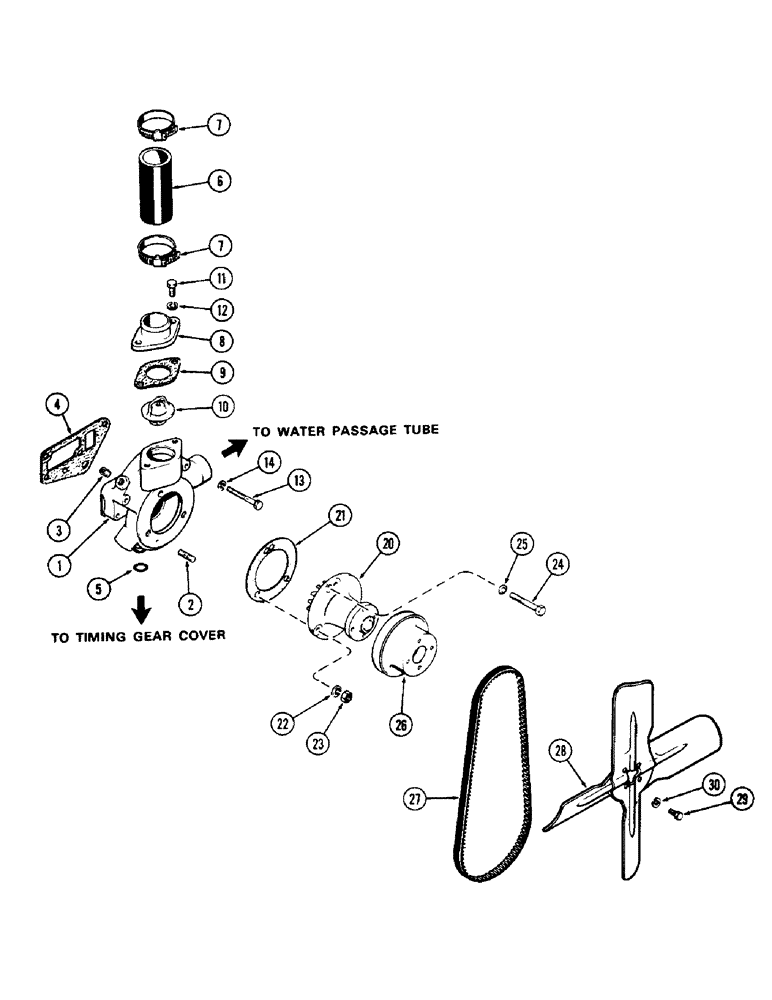

Запчасти Case 580B (015A) - WATER PUMP, FAN & BELT, (188) DIESEL ENGINE, 1ST USED END. SN 2728315 (02) - ENGINE

1

A51735

BODY

ASSY. - water pump, Includes: Ref. 2 and 3

1шт.

2

A29433

STUD

- water pump (3/8" N.C. x 1")

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex. socket hd.)

1шт.

4

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - pump body to cover (3/4 x 1 x 1/8")

1шт.

6

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

8

G2144

FITTING

OUTLET - thermostat hsg. & water

1шт.

9

G46907

GASKET

- water outlet to pump body

1шт.

10

A57641

THERMOSTAT

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.)

2шт.

13

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- (3/8 x 1-7/8" N.C. hex.)

1шт.

14

92-6

LOCK WASHER,3/8"

3шт.

20

A39074

PUMP

ASSY. - water, Includes: Ref. 21

1шт.

21

A38083

GASKET

-, Serial Range: pump-cover

1шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

1шт.

25

A7085

WASHER

- 25/64 x 9/16 x 1/32", copper

1шт.

26

G11339

PULLEY

- fan

1шт.

27

A38824

BELT

Fan and Alternator Drive

1шт.

28

G45243

FAN

- radiator

1шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.
