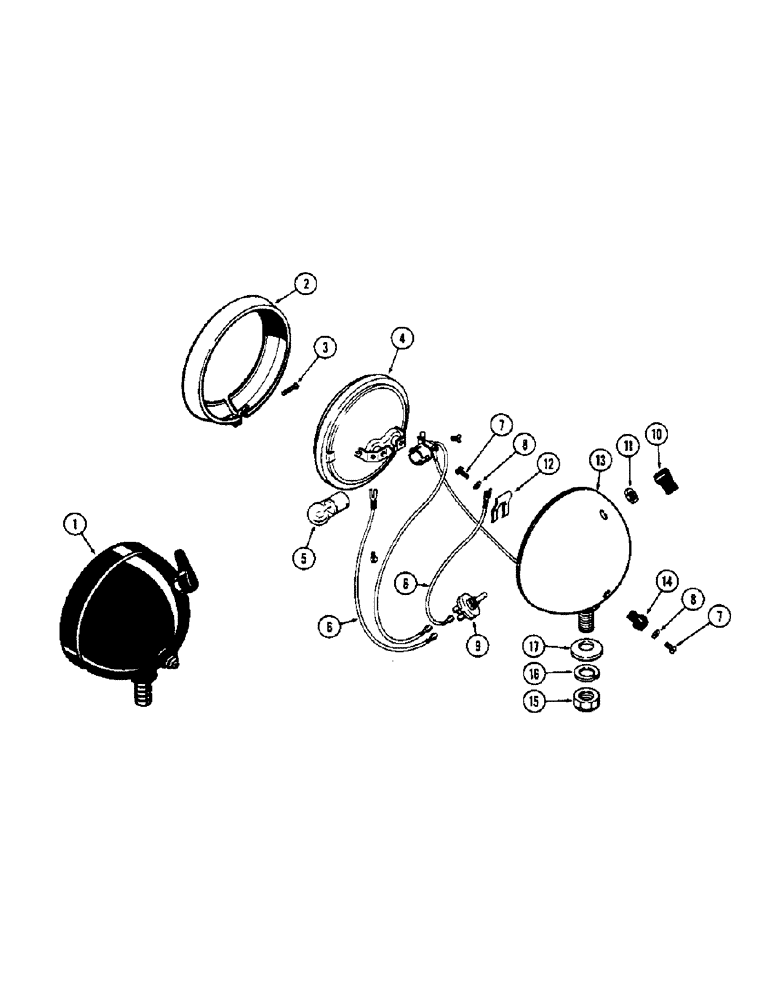

Запчасти Case 580B (194) - OPERATORS CAB, CAB REAR FLOOD LIGHTS (09) - CHASSIS/ATTACHMENTS

1

A20965

LAMP BASE

LAMP ASSY. - flood & tail, Includes: Ref. 2 - 17

1шт.

2

B50255

MOLDING

- lamp retaining

1шт.

3

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding

1шт.

4

A40855

LAMP BASE

LAMP - sealed unit

1шт.

5

B50223

BULB

- red (15 C.P., 12 volt)

1шт.

B50223 bulb - Delete reference "red (15 C.P., 12 volt)".

1шт.

6

B50273

WIRE - switch

2шт.

7

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- wire

2шт.

8

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - (1/4" lock)

2шт.

9

B50275

SWITCH

1шт.

10

B50310

SWITCH

KNOB - switch

1шт.

11

A39888

NUT

- 3/8-32, switch (Replaced B50224)

1шт.

12

10927

SPRING

- terminal

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

B50293

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

10923

WASHER

- bearing

1шт.
