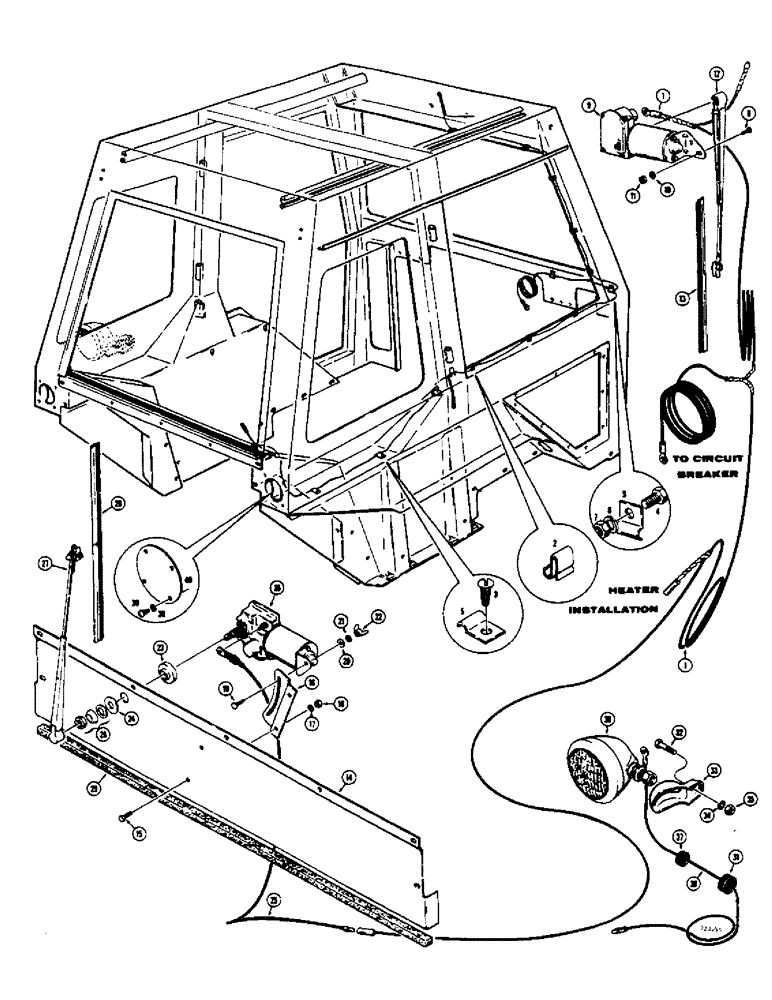

Запчасти Case 580B (190) - OPERATORS CAB, CAB ELECTRICAL SYSTEM (09) - CHASSIS/ATTACHMENTS

F93163

CAB - operator (Machinery item), Includes: Ref. 1 - 13

1шт.

1

F42215

wiring, cab

1шт.

2

F54095

wire harness to cab (Push-on type)

1шт.

3

187-1075

self-tapping (#12-24 N.C. x 1/2")

4шт.

4

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

5

A26673

CLIP

wire (Bolt-on type)

6шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

machine, round head (#10-24 N.C. x 1/2")

1шт.

9

F93209

WIPER MOTOR

ASSEMBLY - front

1шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

11

129-17

NUT,Hex, #10 - 24

hex. ( N.C.) #10-24

1шт.

12

F42213

ARM

windshield wiper (14" long)

1шт.

13

F42214

WIPER

BLADE - windshield (16" long)

1шт.

14

F42134

PANEL

rear closure and wiper mounting (used w/ backhoe models only)

1шт.

15

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Used w/ backhoe models only Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

16

F42211

wiper adjustment (used w/ backhoe models only)

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Used w/ backhoe models only) 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used w/ backhoe models only

2шт.

19

11-310

CARRIAGE BOLT,Short NK, 3/16"-24 x 5/8", G2, Full Thd

BOLT, CARRIAGE, , Used w/ backhoe models only Short NK, 3/16"-24 x 5/8", G2, Full Thd

1шт.

20

195-101

WASHER,3/16"

plain () (used w/ backhoe models only) 3/16"

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used w/ backhoe models only #10

1шт.

22

129-402

NUT - winged (#10-24 N.C.) (used w/ backhoe models only)

1шт.

23

F42212

SPACER - wiper motor to panel (used w/ backhoe models only)

1шт.

24

195-541

WASHER,5/8", SAE

- plain (5/8") wiper mounting (used w/ backhoe models only)

1шт.

25

F42216

umper, cab harness to rear wiper (used w/ backhoe models only)

1шт.

26

F93209

WIPER MOTOR

ASSEMBLY - rear (used w/ backhoe models only)

1шт.

27

F42213

ARM

wiper (16" long) (used w/ backhoe models only)

1шт.

28

F42214

WIPER

BLADE - (18" long) (used w/ backhoe models only)

1шт.

29

F42136

SEAL

rear closure panel (39.2" long) (used w/ backhoe models only)

1шт.

30

A37516

harness to rear light (used w/ backhoe models only)

1шт.

31

D50667

light wire at fender (Inner) (used w/ backhoe models only)

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Used w/ backhoe models only) Hex, 3/8"-16 x 1 1/2", G5

1шт.

33

A34046

BRACKET

light mounting (used w/ backhoe models only)

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used w/ backhoe models only) 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used w/ backhoe models only) 3/8"-16, G5

1шт.

36

A20965

LAMP BASE

LIGHT - backhoe, rear (Standard) (used w/ backhoe models only)

1шт.

37

L13765

GROMMET

light, wire at fender (Outer) (used w/ backhoe models only)

1шт.

38

187-1075

self-tapping (#12-24 N.C. x 1/2") (used w/ backhoe models only)

8шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Used w/ backhoe models only) 1/4"

8шт.

40

F42106

rear light (Used if optional rear light is not installed) (used w/ backhoe models only)

2шт.
