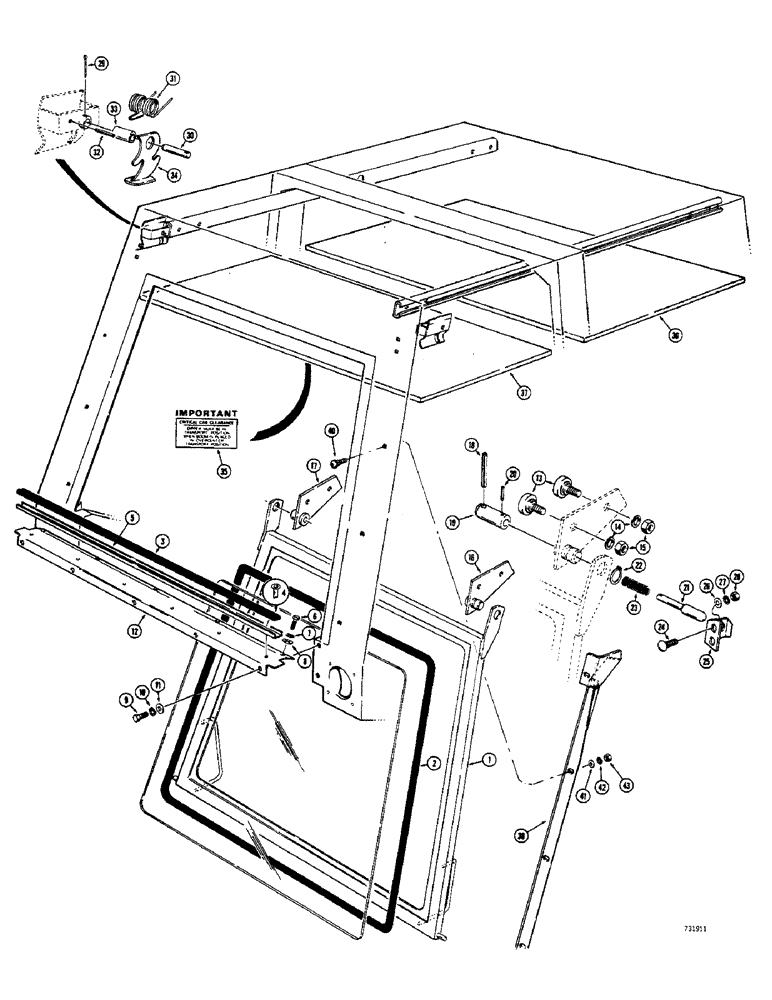

Запчасти Case 580B (182) - OPERATORS CAB, REAR ROLLUP WINDOW & RELATED PTS (09) - CHASSIS/ATTACHMENTS

F93163

CAB - operator (Machinery item), Includes: Ref. 1 - 37

1шт.

1

F93109

FRAME

WINDOW - rear, roll-up

1шт.

2

F42115

MOULDING - glass, rear window (For repairs order A42677)

1шт.

3

F42114

SEAL

WEATHERSTRIP - rear window, lower (44-1/4" long) Cut from 653011 roll

1шт.

4

151-526

RIVET,Pop, 1/8" x .337"

6шт.

5

F42107

CHANNEL - weatherstrip, lower

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

195-18

WASHER,1/4"

plain () 1/4"

2шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

12

F42050

MEMBER

SUPPORT - rear window, lower

1шт.

13

F42201

BEARING CARRIER

ROLLER - bearing type, window

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

F93208

CARRIER

rear window (R.H.)

1шт.

17

F93207

CARRIER

C rear window (L.H.)

1шт.

18

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

19

F42190

COLLAR

plunger

2шт.

20

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

21

F42189

PLUNGER

latch

2шт.

22

T25683

SNAP RING,#75, Ext

plunger #75, Ext

2шт.

23

F42202

SPRING

return, plunger

2шт.

24

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

25

F42188

BRACKET

plunger latch

2шт.

26

195-103

WASHER,5/16"

plain (3/8")

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

132-8

X

PIN - cotter, 1/16" dia. x 7/8"

2шт.

30

F42204

PIN

pivot, latch

2шт.

31

F42169

SPRING

latch

2шт.

32

138-64

LOCK PIN,1/8" x 1 3/8", Slotted

Pin, 1/8" x 1 3/8", Slotted

2шт.

33

NSS

NOT SOLD SEPARAT

SLEEVE - latch (Part of F93163 latch)

2шт.

34

F93161

LATCH

rear window opening

2шт.

35

321-2115

DECAL - "Cab Clearance"

1шт.

36

F42209

cab, front section

1шт.

37

F42210

ROOF LINING

HEADLINER - cab, rear section

1шт.

F93421

rear window, Includes: Ref. 38 - 43

1шт.

38

F93345

R.H., F93421 rear window guide kit for cabs prior s/n 7812063

1шт.

39

F93345

L.H. (R.H. shown), F93421 rear window guide kit for cabs prior s/n 7812063

1шт.

40

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

sq. shoulder (1/4" - 20 N.C. x 3/4") (Zinc plated), F93421 rear window guide kit for cabs prior s/n 7812063

8шт.

41

195-518

WASHER,1/4", SAE

- plain (1/4") (Zinc plated), F93421 rear window guide kit for cabs prior s/n 7812063

8шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , F93421 rear window guide kit for cabs prior S/N 7812063 1/4"

8шт.

43

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, F93421 rear window guide kit for cabs prior S/N 7812063

8шт.
