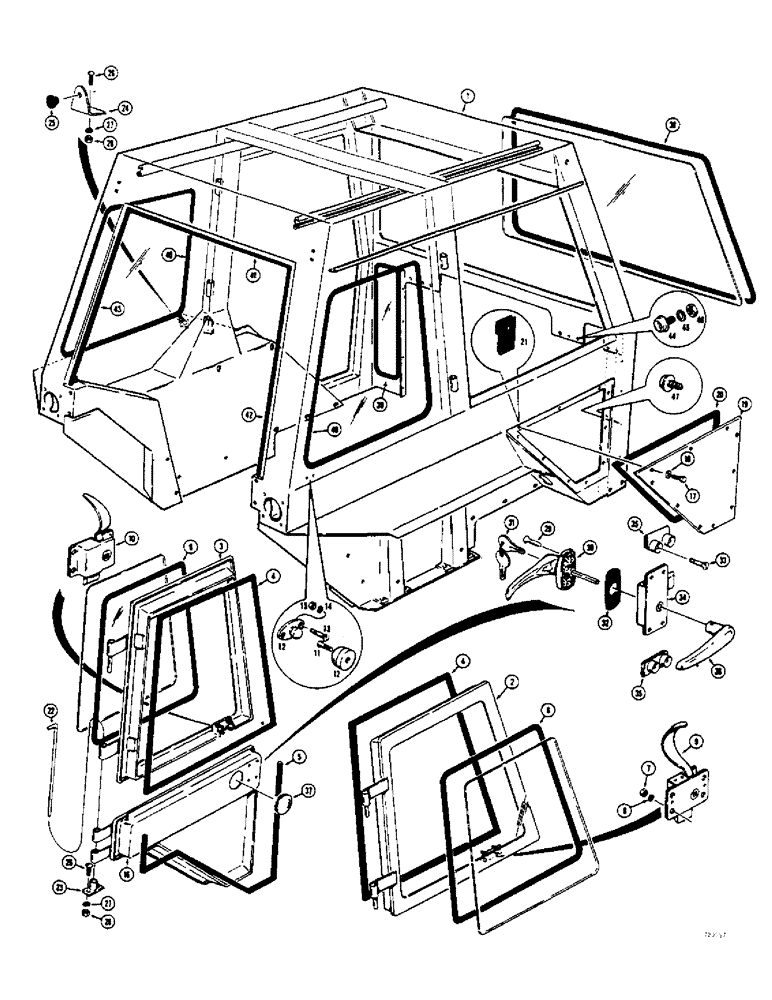

Запчасти Case 580B (178) - OPERATORS CAB, DOOR, WINDOWS & RELATED PARTS (09) - CHASSIS/ATTACHMENTS

F93163

CAB - operator (Machinery item), Includes: Ref. 1 - 47

1шт.

1

F93124

FRAME - operator cab

1шт.

2

F93096

WINDOW FRAME - cab, R.H. side

1шт.

3

F93095

WINDOW FRAME - cab, L.H. side

1шт.

4

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, R.H. and L.H. (122.2" long) Cut from roll A42504 roll

2шт.

5

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door (66.5" long) Cut from A42504 roll

1шт.

6

F42011

MOULDING - window glass, front (For repairs Order A42677)

2шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

9

F93203

LATCH

- window, R.H.

1шт.

10

F93204

LATCH ASSY.

LATCH - window, L.H.

1шт.

11

173-207

X

SCREW - machine, round head (1/4" - 20 N.C. x 5/8")

2шт.

12

F93104

HOLDER

SOCKET AND BRACKET - door holder

2шт.

13

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head (#10-24 N.C. x 5/8")

4шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15

129-17

NUT,Hex, #10 - 24

NUT - hex. ( N.C.) #10-24

4шт.

16

F93122

CHASSIS

DOOR FRAME - cab

1шт.

17

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

10шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

19

F42030

PANEL - access, R.H. front1

1шт.

20

F42031

GASKET - access panel

1шт.

21

131-617

NUT,Ret, J, 1/4"-20

- Tinnerman (1/4" - 20 N.C.)

10шт.

22

F42100

PIN

ROD - pivot, L.H. door and window

1шт.

23

F93231

BRACKET - support, pivot rod

1шт.

24

F42231

BRACKET

- door stop

1шт.

25

F42232

STOP

- door, rubber

1шт.

26

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

29

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head (#10-24 N.C. x 5/8")

2шт.

30

F93131

HANDLE

- door lock, outside, Includes: Ref. 31

1шт.

31

A42653

SET OF 2 KEYS

KEY - lock (Set of two)

1шт.

32

A42913

GASKET

- door handle

1шт.

33

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

- machine, flat head (#10-24 N.C. x 1")

4шт.

34

F93107

LATCH

ASSEMBLY - door, L.H.

1шт.

35

F93108

CLIP

- retainer, door latch

2шт.

36

A42588

HANDLE

- door, inside

1шт.

37

205-72

HOLE PLUG BUTTON,3"

BUTTON - access, latch

1шт.

38

NSS

NOT SOLD SEPARAT

MOULDING - glass, windshield (For repairs order A42677)

1шт.

39

NSS

NOT SOLD SEPARAT

MOULDING - glass, lower front window (For repairs order A42677)

1шт.

40

NSS

NOT SOLD SEPARAT

MOULDING - glass, L.H. and R.H. rear windows (For repairs order A42677)

2шт.

41

F42206

WEATHERSTRIP - rear window, top (34.56" long)

1шт.

42

F42207

WEATHERSTRIP - rear window, R.H. side (37.4" long)

1шт.

43

F42208

WEATHERSTRIP - rear window, L.H. side (37.4" long)

1шт.

44

216-152

FASTENER - snap type

10шт.

45

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

10шт.

46

129-16

NUT,#8-32

10шт.

47

216-153

FASTENER - snap type (Phillips head screw)

4шт.
