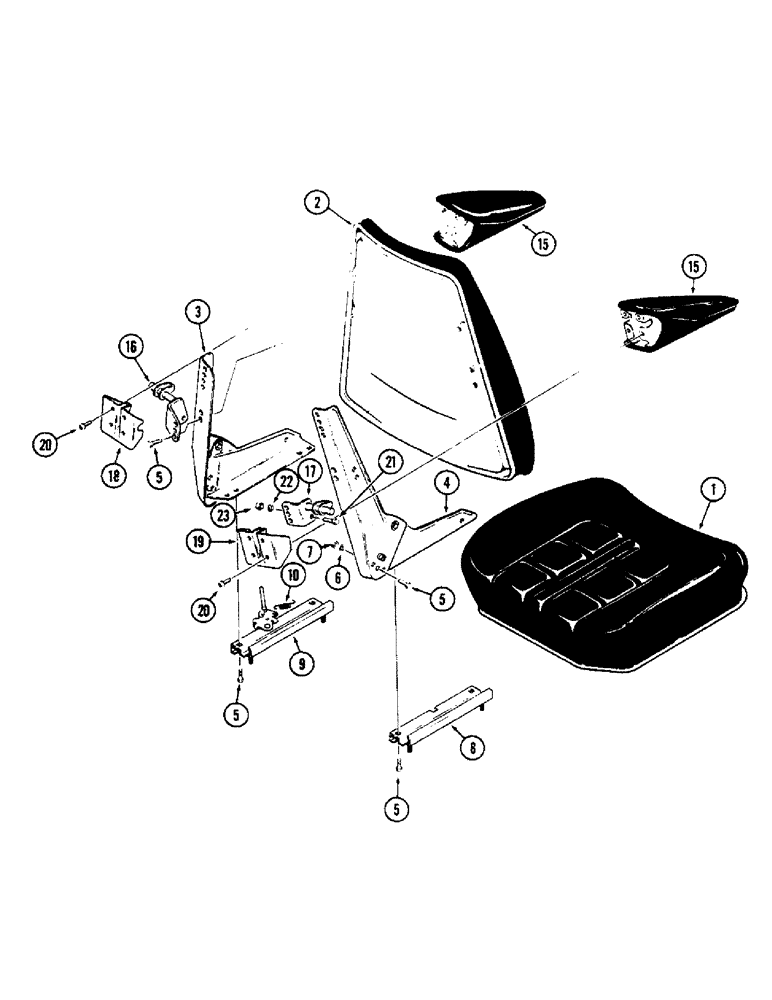

Запчасти Case 580B (175A) - SEAT ASSEMBLIES, D56409 OPERATOR SEAT, (IDENTIFIED BY BLOCK PATTERN ON SEAT) (09) - CHASSIS/ATTACHMENTS

D56409

SEAT

ASSY. - operator, Includes: Ref. 1 - 10

1шт.

1

D56883

SEAT

CUSHION

1шт.

2

D56884

BACKREST

CUSHION

1шт.

3

D56885

RAIL ASSY.

SUPPORT - seat, L.H.

1шт.

4

D56886

RAIL ASSY.

SUPPORT - seat, R.H.

1шт.

5

113-143

BOLT,5/16" x 5/8"

HHCS - (5/16" - 18 N.C. x 5/8")

14шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D56887

SEAT

SLIDE - seat, R.H.

1шт.

9

D56888

ADJUSTER

SLIDE - seat, L.H. (Adjustment side)

1шт.

10

D56889

SPRING

adjustment lever

1шт.

D56424

ARMREST

KIT, Includes: Ref. 15 - 23

1шт.

15

D56898

ARMREST

D56424 kit (used with D56409 operator seat only)

2шт.

16

D56899

BRACKET

mounting, L.H., D56424 arm rest kit (used with D56409 operator seat only)

1шт.

17

D56900

BRACKET

mounting, R.H., D56424 arm rest kit (used with D56409 operator seat only)

1шт.

18

D56901

BRACKET

PLATE - mounting, L.H., D56424 arm rest kit (used with D56409 operator seat only)

1шт.

19

D56902

BRACKET

PLATE - mounting, R.H., D56424 arm rest kit (used with D56409 operator seat only)

1шт.

20

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

self-tapping (#8-32 N.C. x 3/8" Phillips hd.), D56424 arm rest kit (used with D56409 operator seat only)

8шт.

21

113-143

BOLT,5/16" x 5/8"

HHCS - (5/16" - 18 N.C. x 5/8"), D56424 arm rest kit (used with D56409 operator seat only)

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , D56424 Arm rest kit (used with D56409 operator seat only) 5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

D56424 arm rest kit (used with D56409 operator seat only) 5/16"-18, G5

2шт.
