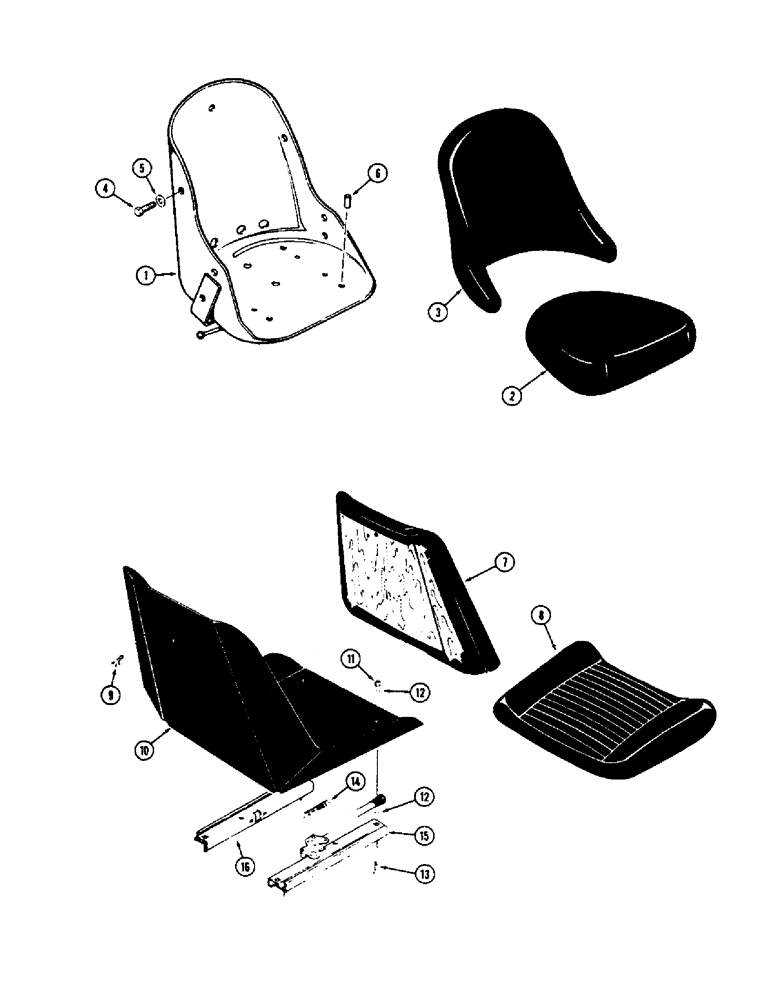

Запчасти Case 580B (174) - SEAT ASSEMBLIES, D49606 JR. ROAD KING SEAT (W/O SEAT BELT SLOTS) (09) - CHASSIS/ATTACHMENTS

D49606

SEAT ASSY.

tractor, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

A42745

SEAT

CUSHION

1шт.

3

A42747

BACKREST

seat

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

w/washer Hex, 3/8"-16 x 5/8", G5, Full Thd

5шт.

5

195-525

WASHER,3/8", SAE

) 3/8", SAE

5шт.

6

L32870

PIN

cushion alignment

2шт.

L46484

SEAT

ASSY. - tractor, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat, L46484 jr. road king seat (with seat belt slots)

1шт.

2

D52470

CUSHION

L46484 jr. road king seat (with seat belt slots)

1шт.

3

A42747

BACKREST

L46484 jr. road king seat (with seat belt slots)

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

L46484 jr. road king seat (with seat belt slots) Hex, 3/8"-16 x 5/8", G5, Full Thd

5шт.

5

195-525

WASHER,3/8", SAE

L46484 jr. road king seat (with seat belt slots) 3/8", SAE

5шт.

6

L33658

PIN

cushion alignment, L46484 jr. road king seat (with seat belt slots)

2шт.

D55381

SEAT

ASSY. - operator, L46484 jr. road king (with seat belt slots), Includes: Ref. 7 - 16

1шт.

7

D55938

CUSHION

D55381 operator seat (id by pleate4d seat & backrest )

1шт.

8

D55939

CUSHION

D55381 operator seat (id by pleate4d seat & backrest cushions)

1шт.

9

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

WASHER ASSY. - hex. hd. (1/4" - 20 N.C. x 3/4") (Cushion to seat shell), D55381 operator seat (id by pleate4d seat & backrest cushions)

5шт.

10

D55940

SHELL

D55381 operator seat (id by pleate4d seat & backrest cushions)

1шт.

11

131-31

LOCK NUT,5/16"-24, G8

NUT - hex., lock (5/16" - 24 N.F.), D55381 operator seat (id by pleate4d seat & backrest cushions)

4шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16"), D55381 operator seat (id by pleate4d seat & backrest cushions)

8шт.

13

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(Slide to shell), D55381 operator seat (id by pleated seat & backrest cushions) Hex, 5/16"-24 x 7/8", G5, Full Thd

4шт.

14

D55954

SPRING

adjustment lever, D55381 operator seat (id by pleate4d seat & backrest cushions)

1шт.

15

D53585

CUSHION

SLIDE - seat, R.H. (Adjustment side), D55381 operator seat (id by pleate4d seat & backrest )

1шт.

16

D53586

SLIDE

L.H. (Plain side), D55381 operator seat (id by pleate4d seat & backrest cushions)

1шт.
