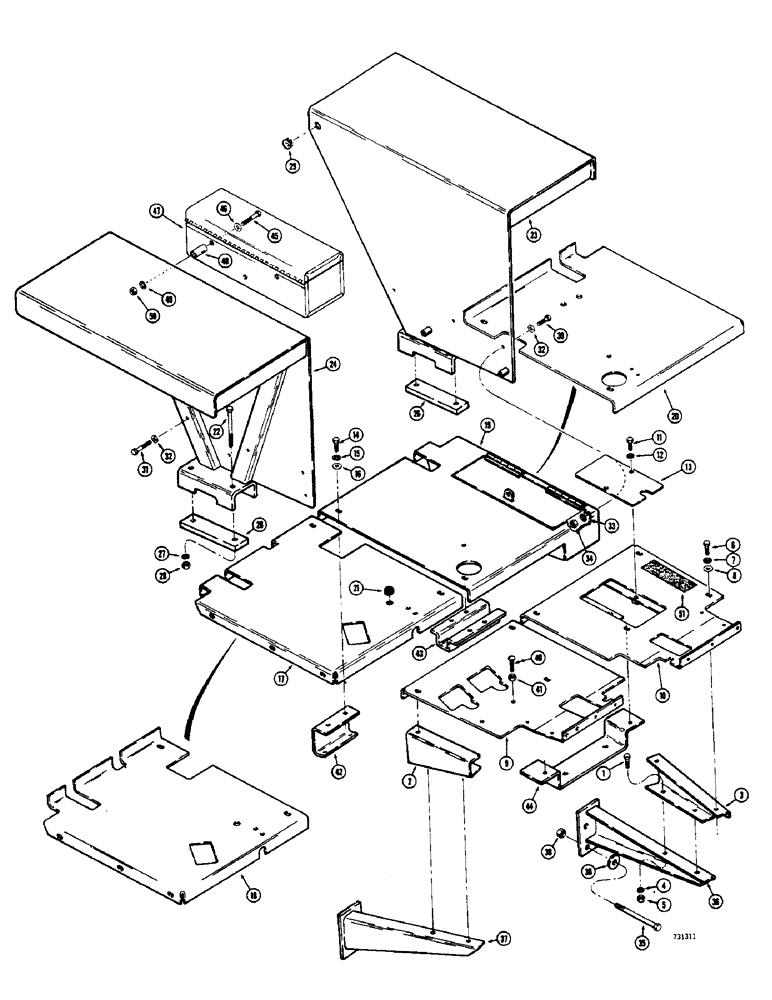

Запчасти Case 580B (170) - FLOOR PLATES AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

D53018

SUPPORT

- floor plate, R.H.

1шт.

3

D52998

SUPPORT - floor plate, L.H.

1шт.

4

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 N.C.)

4шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

7

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

7шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

7шт.

9

D55027

PLATE

- floor, R.H. front

1шт.

10

D55026

PLATE

- floor, L.H. front

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

13

D55028

PLATE

COVER - battery access

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

17

D49714

PLATE

- floor, R.H. rear (Before loader ser. no. 5205025)

1шт.

18

D55461

PLATE

- floor, R.H. rear (Loader ser. no. 5205025 and after)

1шт.

19

D50691

PLATE

- floor, L.H. rear (Before loader ser. no. 5205025)

1шт.

20

D55462

PLATE ASSY.

PLATE - floor, L.H. rear (Loader ser. no. 5205025 and after)

1шт.

21

49562

GROMMET,11/16" ID x 1" Groove Dia

- R.H. rear floor plate

1шт.

22

13-8140

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

HHCS - 1/2" - 13 N.C. x 8-3/4"

4шт.

23

D49697

FENDER

- tractor, L.H. (When stock is exhausted, order F93265 fender)

1шт.

23

F93265

FENDER

- tractor, L.H.

1шт.

24

D49696

FENDER

- tractor, R.H. (When stock is exhausted, order 1-F93264 fender; 1-L42725 spacer; 1-13-632 bolt and 2-25-106 nuts)

1шт.

24

F93264

FENDER - tractor, R.H.

1шт.

25

L42723

SPACER

- fender (Not shown)

1шт.

26

D50703

BAR

- fender mounting

2шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 N.C.)

4шт.

29

205-32

PLUG - button, fender 3/4"

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

32

195-25

WASHER,3/8"

- plain () 3/8"

10шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

6шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 N.C.)

6шт.

35

113-639

BOLT

HHCS - 5/8" 11 N.C. x 8"

4шт.

36

D50285

PLATE - support, L.H. (Used with drawbar models only)

1шт.

37

D50286

PLATE - support, R.H. (Used with drawbar models only)

1шт.

38

A28084

WASHER

- special

4шт.

39

129-563

NUT,5/8"-11, G8

- hex. (5/8" - 11 N.C.)

4шт.

40

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- machine, slotted head (5/16" - 18 N.C. x 1")

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

2шт.

42

D52994

BRACKET

SUPPORT - floor plate, rear

1шт.

43

D54487

SUPPORT

- floor plate, outer (Replaces D52996)

1шт.

44

D52995

SUPPORT - floor plate, front

1шт.

45

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

46

195-525

WASHER,3/8", SAE

- plain (3/8") zinc plated

3шт.

47

32691

SPACER

- tool, Serial Range: box-fender

3шт.

48

32691

SPACER

- tool, Serial Range: box-fender

3шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

51

D55216

PAD,2" x 9"

PAD - anti-skid

2шт.

D124090

BOX, TOOL

1шт.
