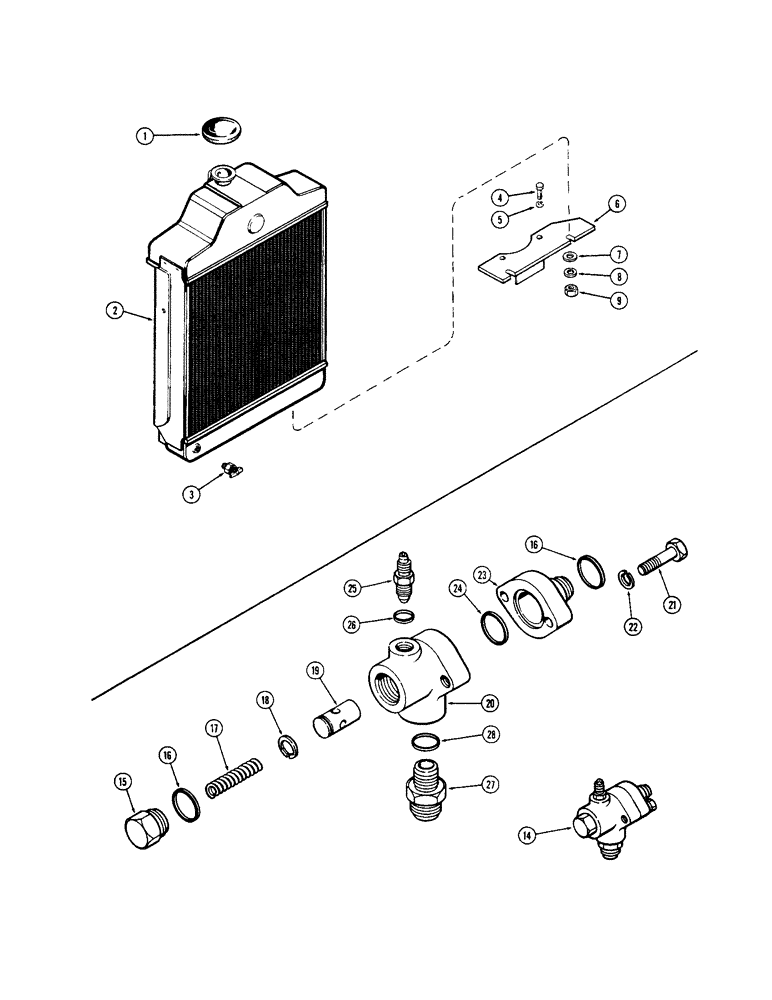

Запчасти Case 580B (012) - RADIATOR, (188) DIESEL ENGINE, OIL FILTER PRESSURE VALVE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A39359
CAP
- radiator
1шт.
2
A39344
RADIATOR
1шт.
3
217-103
COCK, DRAIN
VALVE - radiator drain
1шт.
4
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
5
92-8
LOCK WASHER,1/2"
2шт.
6
A35574
BRACKET
- radiator support
1шт.
7
195-25
WASHER,3/8"
- plain () 3/8"
2шт.
8
92-6
LOCK WASHER,3/8"
2шт.
9
25-106
NUT,3/8"-16, G5
- (3/8" N.C. hex.)
2шт.
14
A39583
CYLINDER END CAP
VALVE ASSY. - oil filter pressure, Includes: Ref. 15 - 28
1шт.
15
A39586
PLUG
- valve body, oil filter pressure valve
1шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - valve body plug (3/4 x 15/16 x 3/32"), oil filter pressure valve
2шт.
17
A23082
SPRING
- valve spool, oil filter pressure valve
1шт.
18
A60273
SNAP RING,#62, Ext
Ring, Snap, , valve spool, oil filter pressure valve #62, Ext
1шт.
19
A39585
SPOOL - valve metering, oil filter pressure valve
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - valve (Order A39583), oil filter pressure valve
1шт.
21
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- (5/16 x 1-1/4" N.C. hex.), oil filter pressure valve
2шт.
22
92-5
LOCK WASHER,5/16"
oil filter pressure valve 5/16"
2шт.
23
A39587
FITTING - flange, oil filter pressure valve
1шт.
24
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
RING - swivel head, oil filter pressure valve
1шт.
25
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
CONNECTOR ASSY. - straight (1/4" tube x 7/16" P.T.), oil filter pressure valve, Incl. Ref. 26
1шт.
26
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
"O" RING - (1/4 x 23/64 x 5/64"), oil filter pressure valve
1шт.
27
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR ASSY. - straight (5/8" tube x 7/8" P.T.), oil filter pressure valve, Includes: Ref. 28
1шт.
28
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - (3/4 x 15/16 x 3/32"), oil filter pressure valve
1шт.
Выбрано товаров: 24
