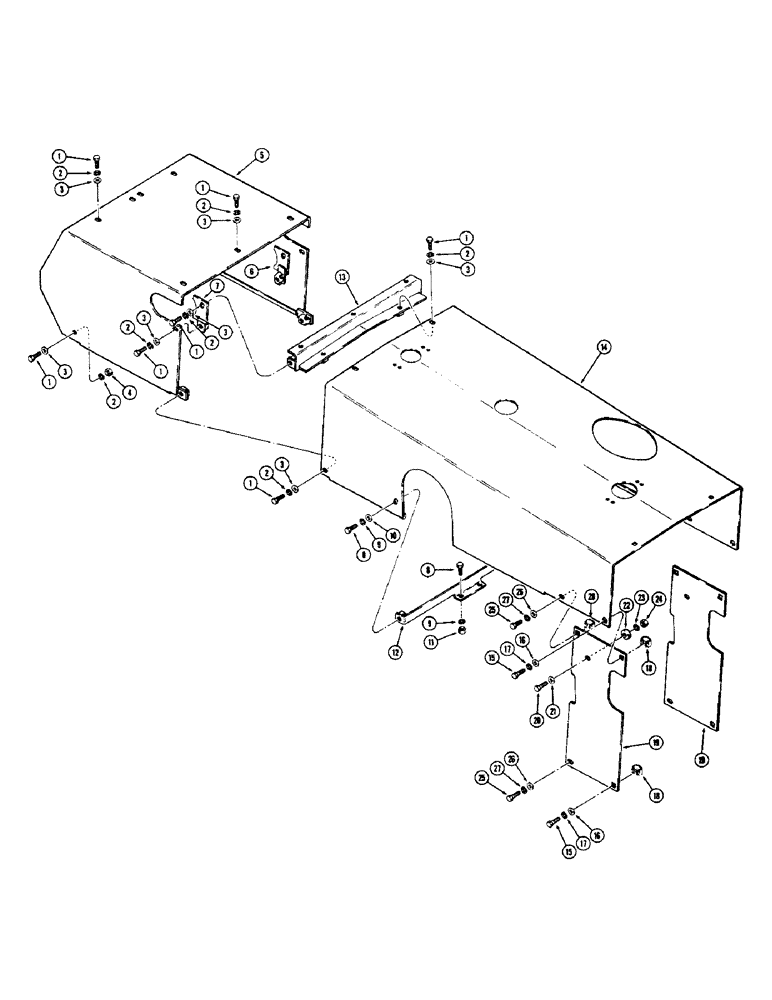

Запчасти Case 580B (166) - HOOD AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

15шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

3

195-525

WASHER,3/8", SAE

- plain (3/8")

15шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 N.C.)

2шт.

5

D49657

WRAPPER - instrument panel

1шт.

6

D49645

COVER PLATE

PLATE - cover, L.H.

1шт.

7

D49646

PLATE

- cover, R.H.

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

195-525

WASHER,3/8", SAE

- plain (3/8")

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 N.C.)

2шт.

12

D53036

STRAP

- hood support, center

1шт.

13

D49644

BRACKET

- hood support, top

1шт.

14

D49653

HOOD - engine

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

16

195-521

WASHER,5/16", SAE

- plain (5/16")

6шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

18

131-113

SPRING NUT,J, Ret, 5/16"-18

6шт.

19

D49656

PANEL ASSY.

PANEL - side, R.H. and L.H. (Used prior to loader serial no. 5228999)

2шт.

19

D55739

PANEL - side, R.H. and L.H. (1st used loader serial no. 5228999)

2шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

195-521

WASHER,5/16", SAE

- plain (5/16")

2шт.

22

D31074

SPACER

- panel

2шт.

23

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 N.C.)

2шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

26

195-521

WASHER,5/16", SAE

- plain (5/16")

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

28

131-113

SPRING NUT,J, Ret, 5/16"-18

2шт.
