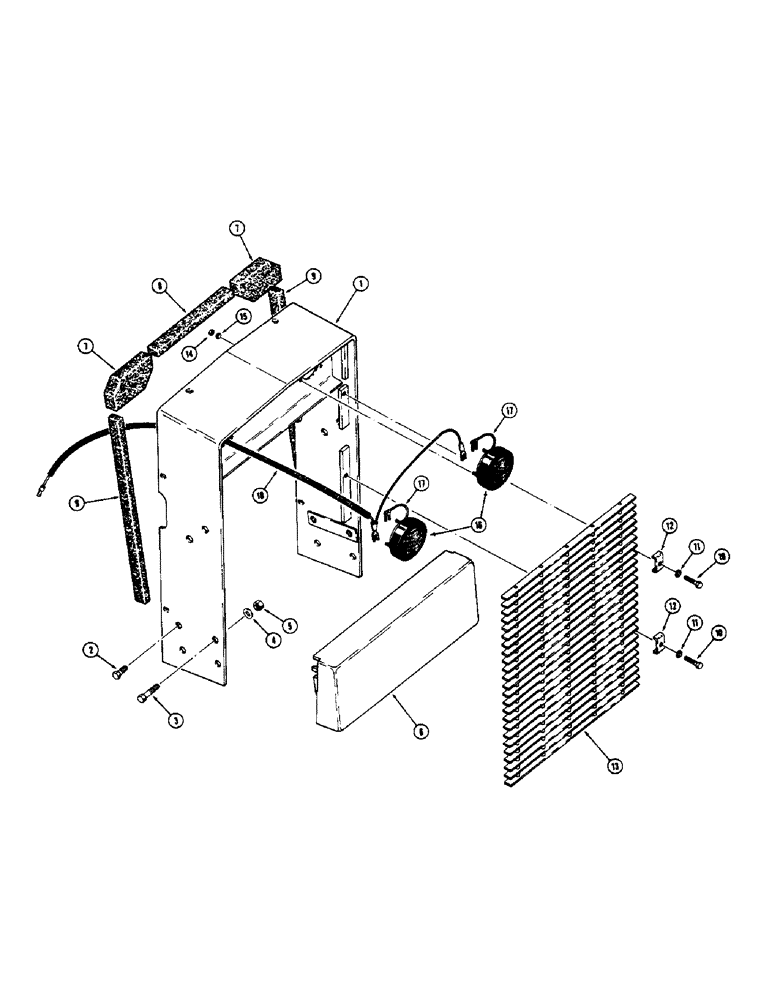

Запчасти Case 580B (164) - RADIATOR WRAPPER, GRILLE AND HEADLIGHTS (09) - CHASSIS/ATTACHMENTS

1

D52661

WRAPPER - radiator

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

4

95-10

WASHER,5/8"

- plain () 5/8"

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8" - 11 N.C.)

4шт.

6

D31082

GUARD ASSY.

GUARD - equipment pump

1шт.

7

G46278

BAFFLE

- radiator, top

2шт.

8

G46280

BAFFLE

- radiator, top center

1шт.

9

D31270

INSULATOR

BAFFLE - radiator, side

2шт.

10

113-273

BOLT

HHCS - 3/8" - 16 N.C. x 1-1/2"

4шт.

11

192-43

WASHER,3/8"

LOCK, 3/8"

4шт.

12

L13218

CLIP

- grille retainer

4шт.

13

D49649

GRILLE ASSY

GRILLE - radiator

1шт.

D49649 grille - Part nbr D55506 was used on later units.

1шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex. ( N.C.) #10-24

6шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

16

D30243

LAMP

LIGHT ASSEMBLY - front head (Parts list Figure 91G)

2шт.

17

A11768

ELECTRICAL WIRE

CABLE - ground, headlight

2шт.

18

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.
