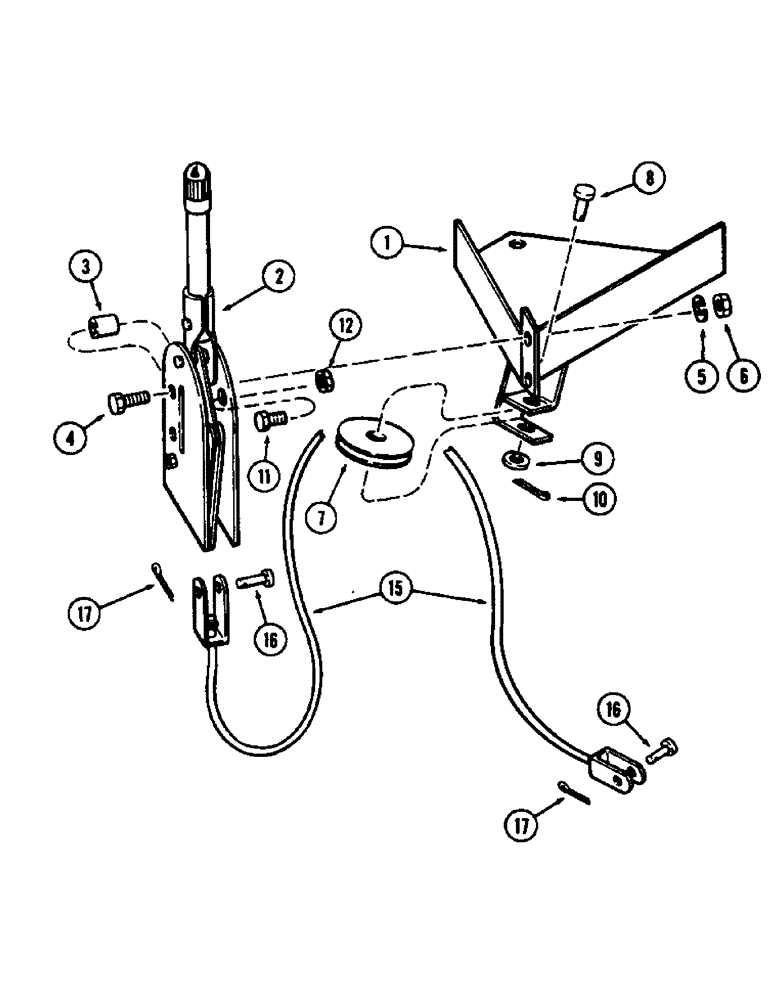

Запчасти Case 580B (162) - PARKING BRAKE (07) - BRAKES

1

D52049

BRACKET

- brake lever

1шт.

2

D52835

LEVER

ASSY. - brake, parking

1шт.

3

D57738

SPACER

- brake lever

2шт.

4

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

7

D32543

SHEAVE

PULLEY - brake cable

1шт.

8

141-12

CLEVIS PIN,3/8" x 1 5/16"

PIN - clevis (Pulley to bracket)

1шт.

9

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

11

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - (3/8 x 1/2" N.C. hex.)

1шт.

12

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

15

D49719

CABLE

- parking brake

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, (Cable to brake & lever) 5/16" x .940"

2шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.
