Запчасти Case 580B (154) - DUMP VALVE PEDAL & LINKAGE (07) - BRAKES

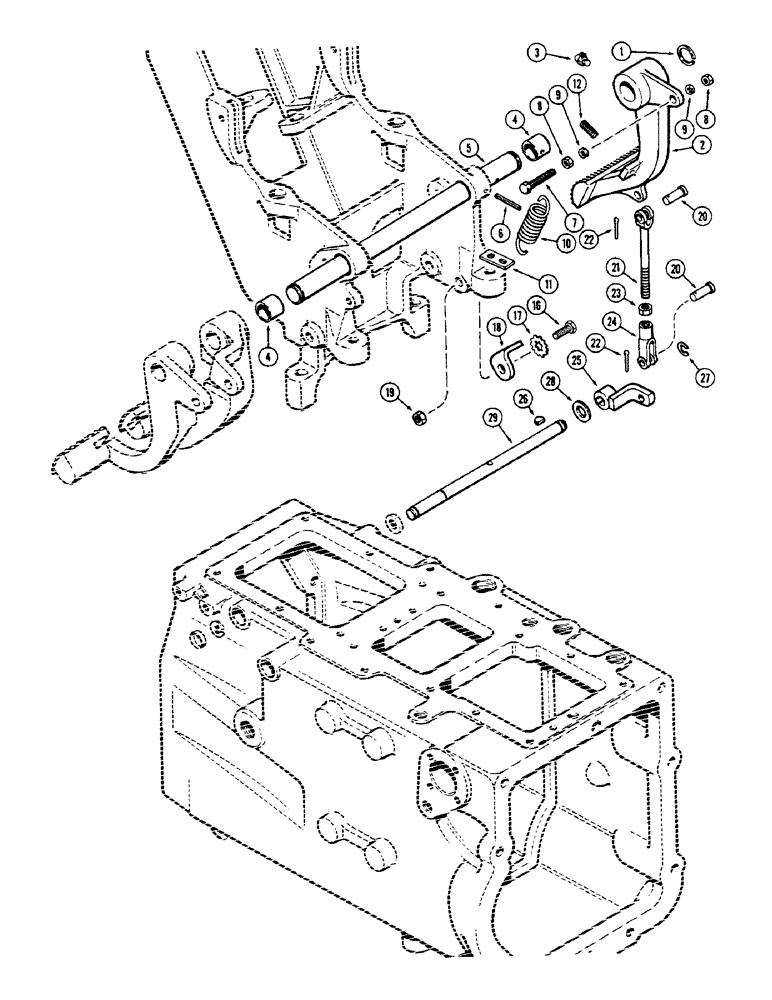

Схема запчастей Case 580B - (154) - DUMP VALVE PEDAL & LINKAGE (07) - BRAKES
28
2
24
4
29
1
22
7
8
19
8
5
25
20
21
3
22
23
18
11
26
6
20
4
9
17
10
27
12
16
9

Артикул

Название

Примечание

Количество

1

A37235

SNAP RING,#100, .941", Ext

- pedal to shaft

1шт.

2

A39808

PEDAL

- dump valve

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

4

A37530

BUSHING

- brake pedal cross shaft

2шт.

5

A37701

SHAFT

- brake pedals & emergency stop pedal

1шт.

6

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, 1/8" x 1 1/2", Slotted

1шт.

7

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(Spring to pedal) Hex, 5/16"-18 x 2 1/2", G5

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

A37724

SPRING

- pedal return

1шт.

11

A38142

BRACKET

- pedal spring

1шт.

12

A59433

SCREW,1/4" - 20 x 1 1/4"

- set (1/4" N.C. x 1-1/4", with nylon insert)

1шт.

16

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

1шт.

17

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

18

A39780

STOP - emergency stop pedal

1шт.

19

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

1шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

21

A39781

ROD - dump shaft

1шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

23

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. hex., jam)

1шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

ROD END - (3/8")

1шт.

25

A39782

LEVER - dump shaft

1шт.

26

126-8

KEY - (#2 Woodruff) (3/32 x 1/2") #2, 3/32" x 1/2"

1шт.

27

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , lever to shaft #50, .392" Dia, E-Type

1шт.

28

A31223

WASHER -, Serial Range: lever-shaft

1шт.

29

A39510

SHAFT - cross, dump control (See Figure 138 for dump control linkage)

1шт.
