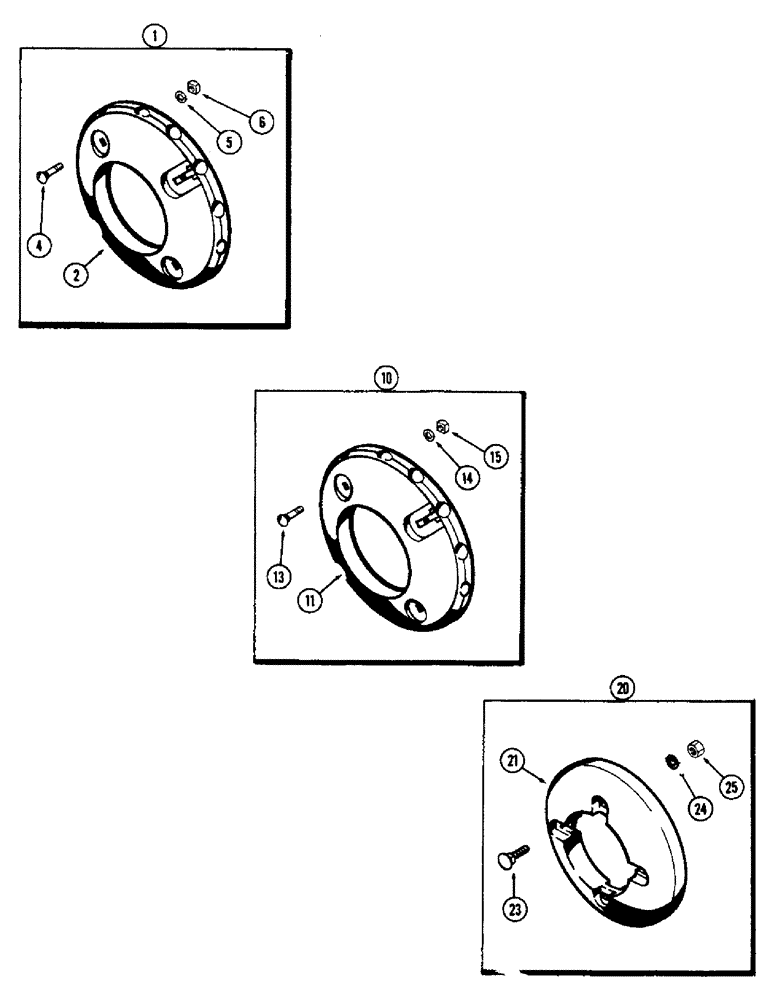

Запчасти Case 580B (161A) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

G12018

WEIGHT SET - 1st & 2nd set for 28" wheels (Mach. item), Includes: Ref. 2 - 6

1шт.

The wheel weights were never set up as parts. They were strictly wholegoods. Drawing for the 28" weight is G1092. (found on old micro film) by

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - (73 lbs. each)

2шт.

G12008

BUNDLE - weight hardware

1шт.

4

11-1052

BOLT (MACHINE)

BOLT - (5/8 x 3-1/4" N.C. rd. hd. sq. neck)

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

25-1010

NUT,5/8"-11, G5

4шт.

10

G12609

WEIGHT SET - 24" wheel (1st set) (Mach. item), Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

WEIGHT - (78 lbs. each)

2шт.

G12007

BUNDLE - weight hardware

1шт.

13

11-1036

BOLT (MACHINE)

BOLT - (5/8 x 2-1/4" N.C. rd. hd. sq. neck)

4шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

25-1010

NUT,5/8"-11, G5

4шт.

20

G12610

WEIGHT SET - 24" wheel (Added set) (Mach. item), Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT - (78 lbs. each)

2шт.

G12008

BUNDLE - weight hardware

1шт.

23

11-1052

BOLT (MACHINE)

BOLT - (5/8 x 3-1/4" N.C. rd. hd. sq. neck)

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

25-1010

NUT,5/8"-11, G5

4шт.
