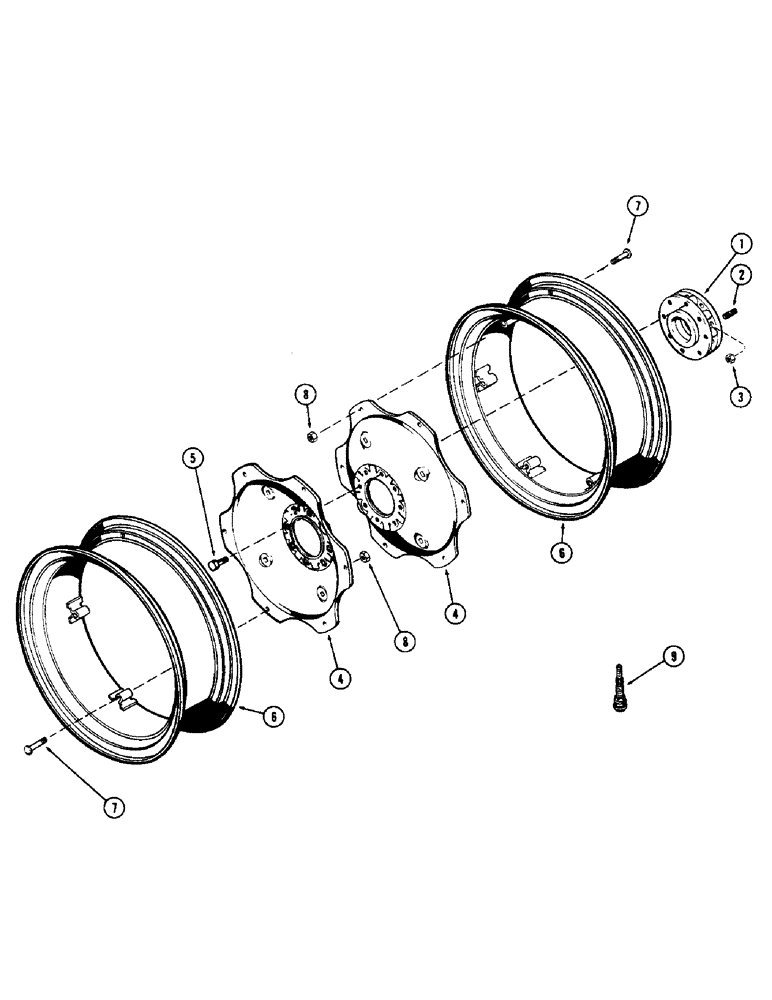

Запчасти Case 580B (160) - DUAL REAR WHEELS, 24" DEMOUNTABLE (06) - POWER TRAIN

1

A38211

ADAPTER

- dual rear wheel

2шт.

2

A38210

STUD

- mounting, dual rear wheel

16шт.

3

25-1710

NUT,5/8"-18, G5, Hvy

- (5/8" N.F. hex.) (Heavy)

16шт.

4

G46240

DISC

- rear wheel

4шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - lug, wheel

16шт.

6

A39538

RIM

- rear wheel (Takes 12.4 x 24 tire)

4шт.

7

G10701

BOLT

-, Serial Range: rim-disc

24шт.

8

129-565

SPECIAL NUT,5/8"-18, G5

- (5/8" N.F. hex.)

24шт.

9

A20058

VALVE STEM

- Rim, tubeless tire

4шт.
