(158) - 28" REAR WHEELS, 28" DEMOUNTABLE

Запчасти Case 580B (158) - 28" REAR WHEELS, 28" DEMOUNTABLE (06) - POWER TRAIN

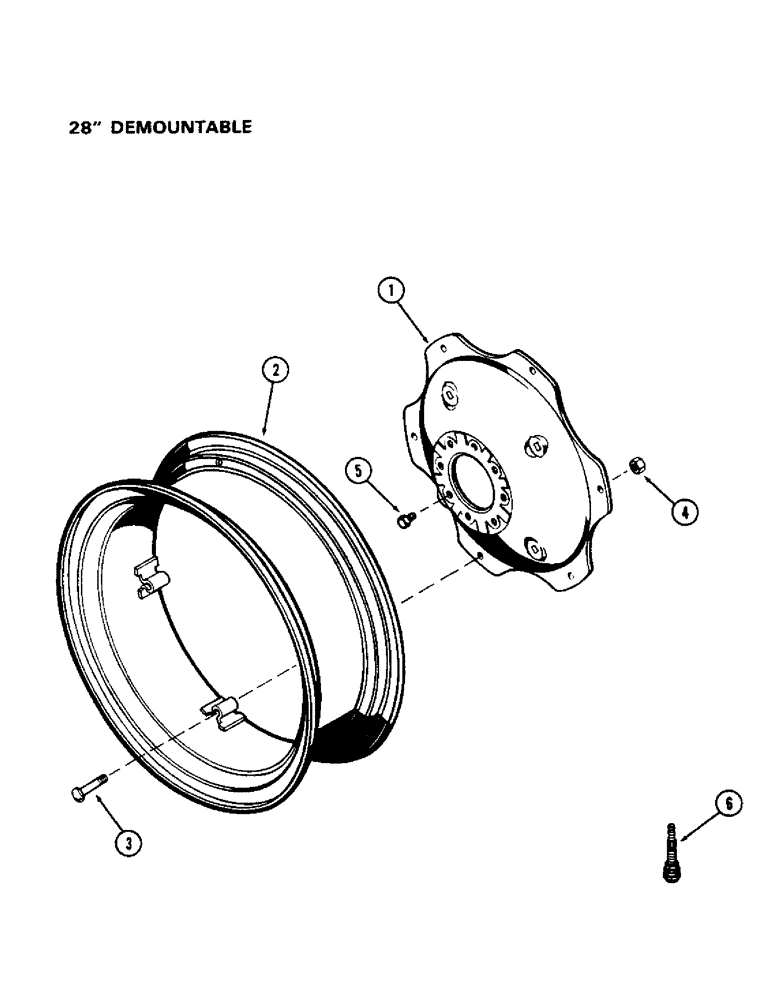

Схема запчастей Case 580B - (158) - 28" REAR WHEELS, 28" DEMOUNTABLE (06) - POWER TRAIN
6
1
2
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G12001

DISC

- wheel, 28" demountable rim

2шт.

2

A39535

RIM

- demountable (Takes 16.9 x 28 tire)

2шт.

3

G10701

BOLT

- rim to disc (5/8 x 2-11/16" N.F. special)

12шт.

4

129-565

SPECIAL NUT,5/8"-18, G5

- (5/8" N.F. hex.) (Plated)

12шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - rear wheel (5/8" N.F. special)

16шт.

6

A20058

VALVE STEM

- Rim, tubeless tire

2шт.
