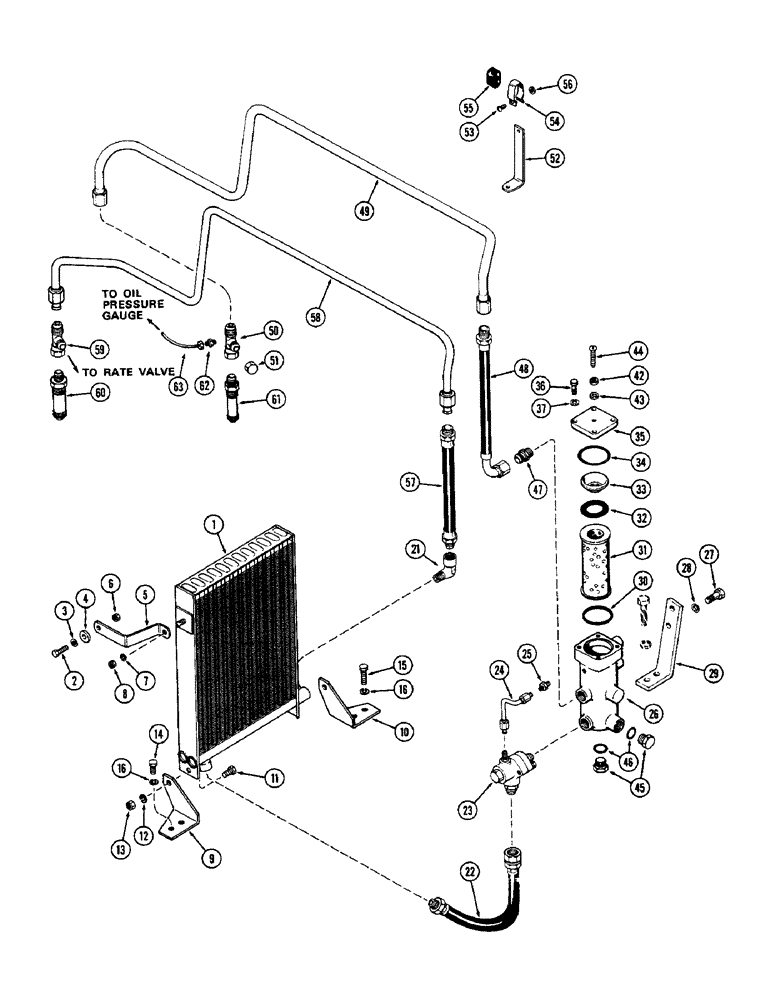

Запчасти Case 580B (010) - TRANSMISSION OIL CIRCUITRY, (188) DIESEL ENGINE (02) - ENGINE

1

A39557

COOLER - oil, transmission

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

2шт.

4

A39785

SPACER - oil cooler bracket (Top of bracket)

2шт.

5

A39784

BRACKET - upper, oil cooler

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex)

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

A39566

BRACKET - oil cooler, lower R.H.

1шт.

10

A39567

BRACKET - oil cooler, lower L.H.

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 X 1-3/8" N.C. hex.)

2шт.

16

92-6

LOCK WASHER,3/8"

4шт.

21

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees street, hose to cooler

1шт.

22

A39596

HOSE - cooler, Serial Range: outlet-filter

1шт.

23

A39583

CYLINDER END CAP

VALVE ASSY. - oil filter pressure (See Figure 12 for Repairs)

1шт.

24

A39592

TUBE - oil filter valve to filter bag

1шт.

25

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight (1/4" tube x 1/8" P.T.)

1шт.

26

A39576

HOUSING - oil filter

1шт.

27

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

A39593

BRACKET - filter housing support

1шт.

30

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - oil filter element (2-1/8 x 2-3/8 x 1/8")

1шт.

31

A51463

FILTER

ELEMENT - oil filter

1шт.

32

A39582

GASKET

- oil filter element cap

1шт.

33

A39579

CAP - oil filter element

1шт.

34

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - oil filter housing cap (2-3/8 x 2-5/8 x 1/8")

1шт.

35

A39577

CAP - oil filter housing

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

42

131-802

LOCK NUT,5/16"-18

NUT - (5/16" N.C. hex.) (Nylock)

1шт.

43

195-400

WASHER

- sealing, adjusting screw

1шт.

44

173-232

SCREW - machine (5/16 x 1-3/4" N.C. rd. hd.)

1шт.

45

86512512

PLUG,7/8" - 14 ORB

- Drain, Incl. Ref. 46 Hex Hd, 7/8"-14 ORB

2шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

47

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight (5/8" tube x 7/8" P.T.)

1шт.

48

A39597

HOSE - filter to return tube

1шт.

49

A39598

TUBE - return, oil filter to torque tube

1шт.

50

A39599

TEE - return tube to torque tube

1шт.

51

218-756

CAP,37 Degree, 7/8"-14

Return tube tee 37º, 7/8"-14

1шт.

52

A37588

BRACKET

- support, oil cooler tube

1шт.

53

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- (#10 x 3/4" N.F. Phill. hd.)

2шт.

54

A37590

CLAMP

- oil cooler tube grommet

2шт.

55

G46835

GROMMET

- oil cooler tube

3шт.

56

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10 N.F.)

2шт.

57

A39595

HOSE - input, Serial Range: tube-cooler

1шт.

58

A39594

TUBE - torque tube to cooler (Input)

1шт.

59

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel (5/8" tube x 7/8" P.T.)

1шт.

60

A39444

FITTING - bulkhead, make up pump to rate valve & cooler

1шт.

61

A39442

FITTING - bulkhead, oil, Serial Range: cooler-pump

1шт.

62

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - tube to tee

1шт.

63

A9366

TUBE

- trans. oil pressure gauge

1шт.
