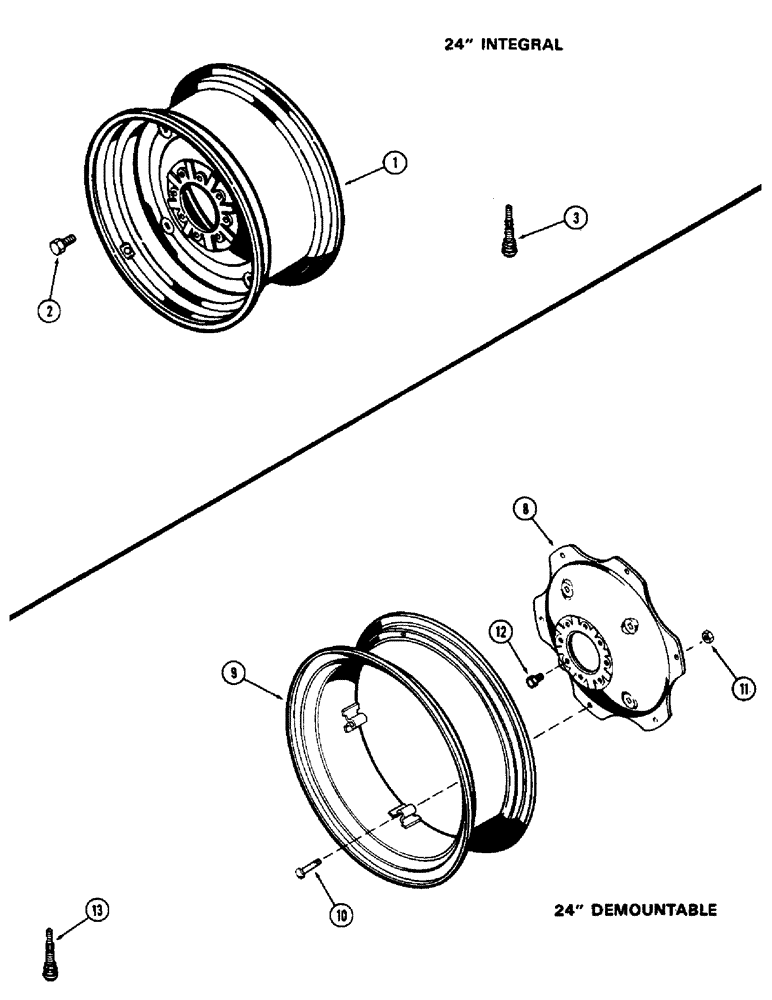

Запчасти Case 580B (156) - 24" REAR WHEELS, 24" INTEGRAL, 24" DEMOUNTABL (06) - POWER TRAIN

1

A38403

RIM

WHEEL - integral (Takes 14.9 x 24 tire) (7/32" offset) (Can be used with or without backhoe) (Replaced A35578)

2шт.

1

A35906

WHEEL

integral (Takes 14.9 x 24 tire) (Must be used without backhoe)

2шт.

1

A39787

SPARE PART

WHEEL - integral (Takes 16.9, 17.5 & 18.4 x 24 tire) (7/32" offset) (Can be used with or without backhoe)

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Lug, rear wheel

16шт.

3

A20058

VALVE STEM

- Rim, tubeless tire

2шт.

8

G46240

DISC

wheel, 24" demountable (Used with 14.9 & 16.9 & 17.5 x 24 tire)

2шт.

9

A39536

RIM

demountable (Used w/16.9 & 17.5 x 24 tire), 24"

2шт.

9

A39537

CYLINDER END CAP

- demountable (Used w/14.9 x 24 tire), 24"

2шт.

10

G10701

BOLT

rim to disc (5/8 x 2-11/16" N.F. special), 24 demountable

12шт.

11

129-565

SPECIAL NUT,5/8"-18, G5

(5/8" N.F. hex.) (Plated), 24 demountable

12шт.

12

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Lug, rear wheel (5/8" N.F. special), 24 demountable

16шт.

13

A20058

VALVE STEM

- Rim, tubeless tire, 24 demountable

2шт.
