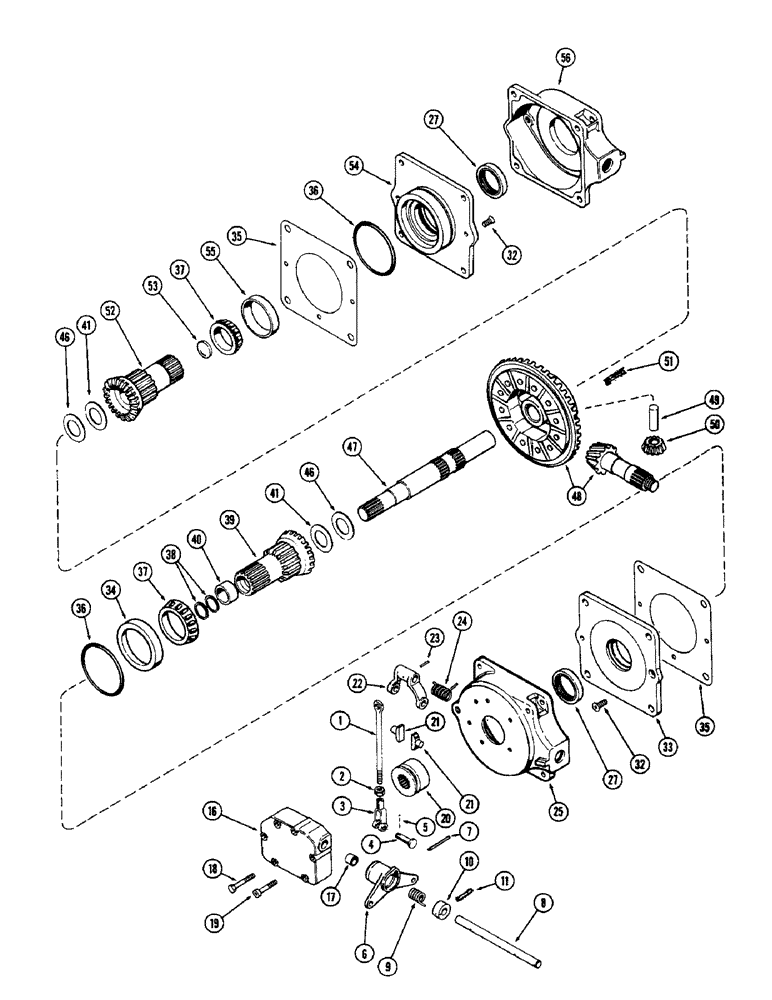

Запчасти Case 580B (148) - DIFFERENTIAL WITH LOCK (06) - POWER TRAIN

1

D51637

ROD

- connecting, differential lock (See Figure 149A)

1шт.

2

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 N.F.)

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

5

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

A39841

LEVER

- differential lock

1шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

8

A37564

SHAFT

- differential lock

1шт.

9

A36446

SPRING

- differential lock lever

1шт.

10

A36447

RETAINER

- lever spring

1шт.

11

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

16

A35923

HOUSING

COVER ASSY. - differential lock outer brake, Includes: Ref. 17

1шт.

17

A35925

BUSHING

- diff. lock outer brake cover

1шт.

18

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

19

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - (5/16 x 2-1/4" N.C. hex. socket hd.)

1шт.

20

A35929

CLAMP

COLLAR - differential lock

1шт.

21

A65101

FINGER

- differential lock lever (Replaced A38750)

2шт.

22

A38749

LEVER

- differential lock collar

1шт.

23

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Lever to shaft 3/16" x 1", Slotted

1шт.

24

A35933

SPRING

- inner, differential lock

1шт.

25

A37052

COVER

- differential brake (R.H.)

1шт.

27

A39273

OIL SEAL

- oil, diff. side gear brg. carrier

2шт.

32

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- carrier to case (3/8 x 3/4" Phill. flat hd. Nylock)

2шт.

33

G30490

CARRIER

ASSY. - diff. side gear bearing (R.H.)

1шт.

34

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

1шт.

35

A39289

SHIM,.007" Thk

Diff. side gear brg. carrier (.003") .007" Thk

1шт.

35

G10719

SHIM,.005" Thk

Diff. side gear brg. carrier .005" Thk

1шт.

35

G10720

SHIM,.010" Thk

Diff. side gear brg. carrier .010" Thk

1шт.

36

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - diff. side gear brg. carrier

2шт.

37

A30114

CONE

- bearing, differential side gear

2шт.

38

A35919

OIL SEAL

- oil, differential shaft

2шт.

39

A38935

GEAR

ASSY. - side, differential (R.H. side), Includes: Ref. 40

1шт.

40

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- differential side gear (R.H. side)

1шт.

41

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheel (.089")

1шт.

41

A39007

WASHER

- thrust, center wheel (.094")

1шт.

41

A39008

WASHER

- thrust, center wheel (.099")

1шт.

41

A39009

WASHER

- thrust, center wheel (.104")

1шт.

41

A39010

WASHER

- thrust, center wheel (.109")

1шт.

41

A39011

WASHER

- thrust, center wheel (.119")

1шт.

46

A29388

WASHER

SHIM - center wheel thrust washer (.010")

1шт.

47

A136955

SHAFT

- cross, diff. (Replaces A35918)

1шт.

48

A39495

RING GEAR

PINION & GEAR ASSY. - (Matched set)

1шт.

49

A39024

SHAFT

PIN - differential pinion gear

3шт.

50

A38933

GEAR

- differential pinion

3шт.

51

138-2036

PIN,3/16" x 2", Coiled

Differential pinion gear 3/16" x 2", Coiled

3шт.

52

A38937

PINION

GEAR ASSY. - side, differential (L.H. side), Includes: Ref. 53

1шт.

53

A29902

PLUG

- expansion

1шт.

54

G30491

CARRIER

ASSY. - diff. side gear bearing (L.H.), Includes: Ref. 55

1шт.

55

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

1шт.

56

G1395

COVER

- differential brake (L.H.)

1шт.
