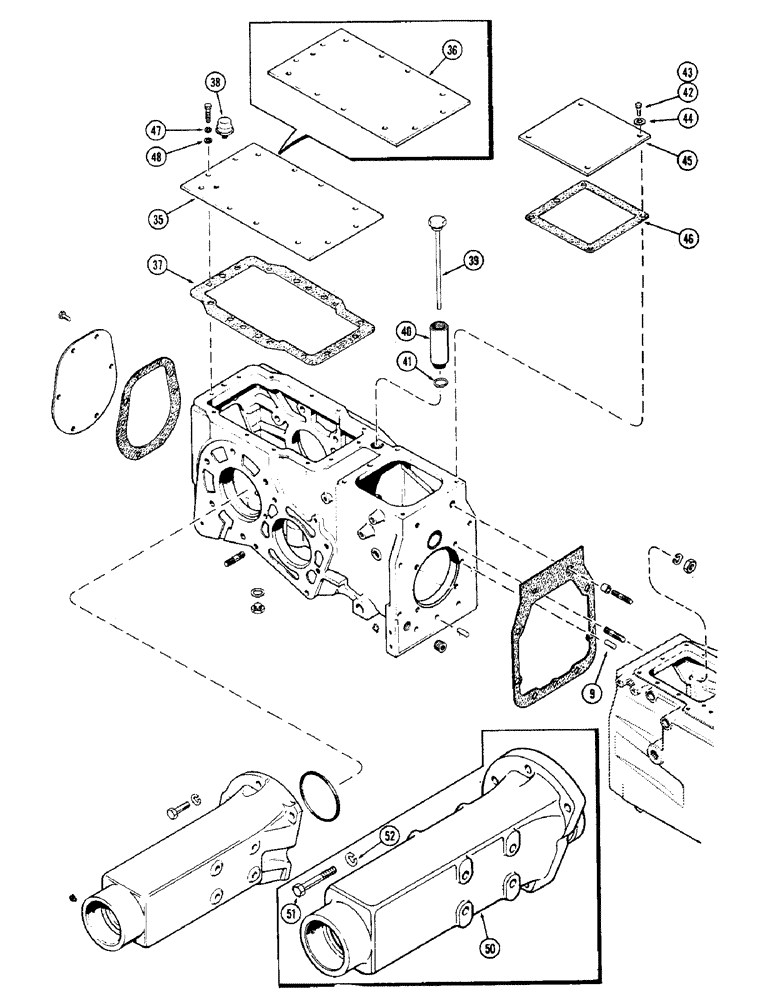

Запчасти Case 580B (143A) - TRANSMISSION AND REAR AXLE HOUSING (06) - POWER TRAIN

35

A39853

COVER

rear, trans. top (1st used trans. ser. no. 2400552)

1шт.

36

A39320

COVER

rear, trans. top (Used prior to trans. ser. no. 2400552)

1шт.

37

G10941

GASKET

trans. rear top cover

1шт.

38

A27173

BREATHER

trans. oil case

1шт.

39

A39323

DIPSTICK

ROD - dipstick

1шт.

40

A39322

TUBE

dipstick

1шт.

41

A38660

GASKET

dipstick

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover to hsg Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

43

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Cover to housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

44

193-72

LOCK WASHER

lock (3/8" int./ext.)

1шт.

45

A39494

COVER - trans. front top

1шт.

46

G10342

GASKET

trans. front top cover

1шт.

47

92-6

LOCK WASHER,3/8"

(Seat support plate to trans. cover) 3/8"

4шт.

48

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

special (Seat support plate to trans. cover)

4шт.

50

E15276

HOUSING

axle, R.H., used w/ side shift backhoe

1шт.

50

E15277

HOUSING

axle, L.H., used w/ side shift backhoe

1шт.

51

113-663

BOLT (SPREADER)

(5/8 x 2-1/4" N.C. hex.). , axle housing used w/ side shift backhoe

8шт.

51

113-667

BOLT - (5/8 x 4" N.C. hex.), axle housing used w/ side shift backhoe

2шт.

52

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Axle housing used w/side shift backhoe 5/8"

10шт.
