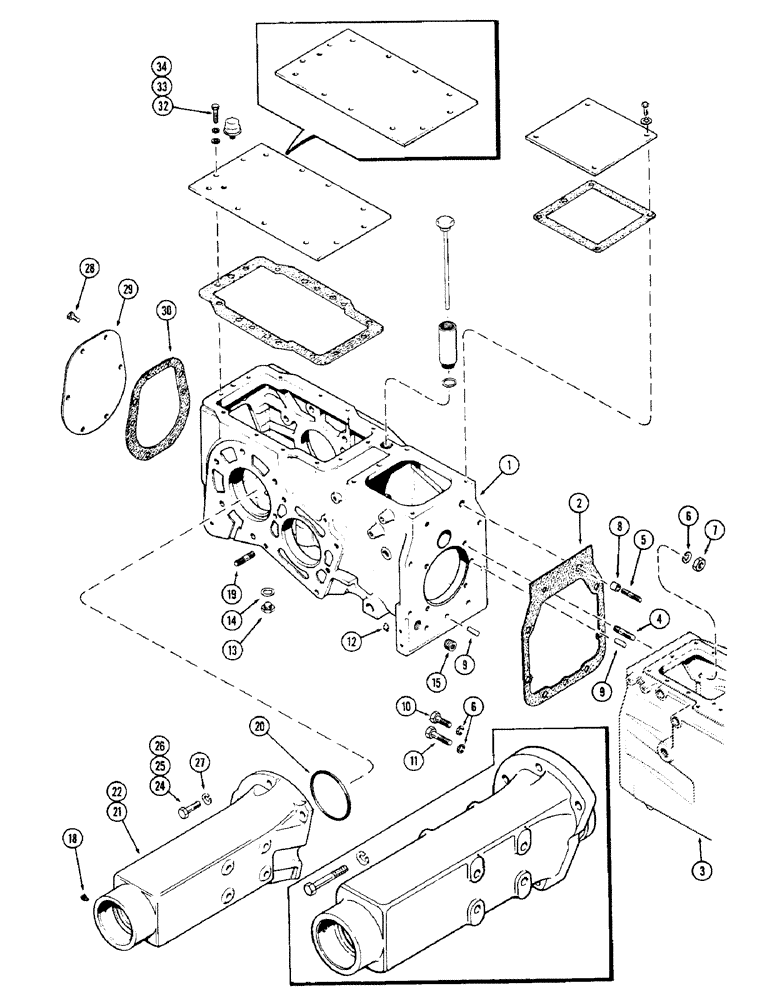

Запчасти Case 580B (142) - TRANSMISSION AND REAR AXLE HOUSINGS (06) - POWER TRAIN

1

A39300

SPARE PART HOUSING

1шт.

2

A39491

GASKET

SPARE PART Trans. hsg. to torque tube hsg.

1шт.

3

A39301

SPARE PART Torque tube

1шт.

4

A38708

STUD

Upper RH, trans. to torque tube (1/2" N.C. - N.F. x 2-3/8")

1шт.

5

A38707

STUD

Upper LH, trans. to torque tube (1/2" N.C. - N.F. x 2-1/2")

1шт.

6

92-8

LOCK WASHER,1/2"

8шт.

7

25-118

NUT,1/2"-20, G5

2шт.

8

A50011

SLEEVE

SLEEVE - dowel, trans. hsg. to torque tube hsg.

1шт.

9

A29540

PIN

Dowel, trans. hsg. to torque tube hsg.

2шт.

10

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

RH & LH side center, trans. housing to torque tube hsg

2шт.

11

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

RH & LH side lower, trans. hsg. to torque tube hsg

4шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

(Clutch & brake shaft)

2шт.

13

A14280

PLUG

Drain, trans. hsg.

1шт.

14

A58608

GASKET

Drain plug

1шт.

15

221-844

PLUG,Hex Soc, 1/2"-14

Pipe, NPT

1шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Axle hsg.

2шт.

19

A38707

STUD

Brake cover to trans. hsg. (1/2" N.C. - N.F. x 2-1/2")

4шт.

20

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

Rear axle hsg. to trans. hsg

2шт.

21

A37068

HOUSING

Rear axle (RH)

1шт.

22

A37069

HOUSING

Rear axle (LH)

1шт.

24

113-662

SCREW

BOLT - (5/8 x 2" N.C. hex.), Serial Range: (Hsg.-case)

2шт.

25

113-663

BOLT (SPREADER)

(5/8 x 2-1/4" N.C. hex.), Serial Range: (Hsg.-case)

6шт.

26

113-667

BOLT - (5/8 x 4" N.C. hex.), Serial Range: (Hsg.-case)

2шт.

27

92-10

LOCK WASHER,5/8"

10шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover to case

6шт.

29

A39105

COVER

Trans. hsg. rear (PTO opening)

1шт.

30

G10447

GASKET

Trans. hsg. rear cover

1шт.

32

113-215

X

BOLT - (3/8 x 1" N.C. hex.) (Grade 8)

3шт.

33

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

(Seat support plate)

4шт.

34

113-230

X

BOLT - (3/8 x 1-1/8" N.C. hex.) (Grade 8)

5шт.
