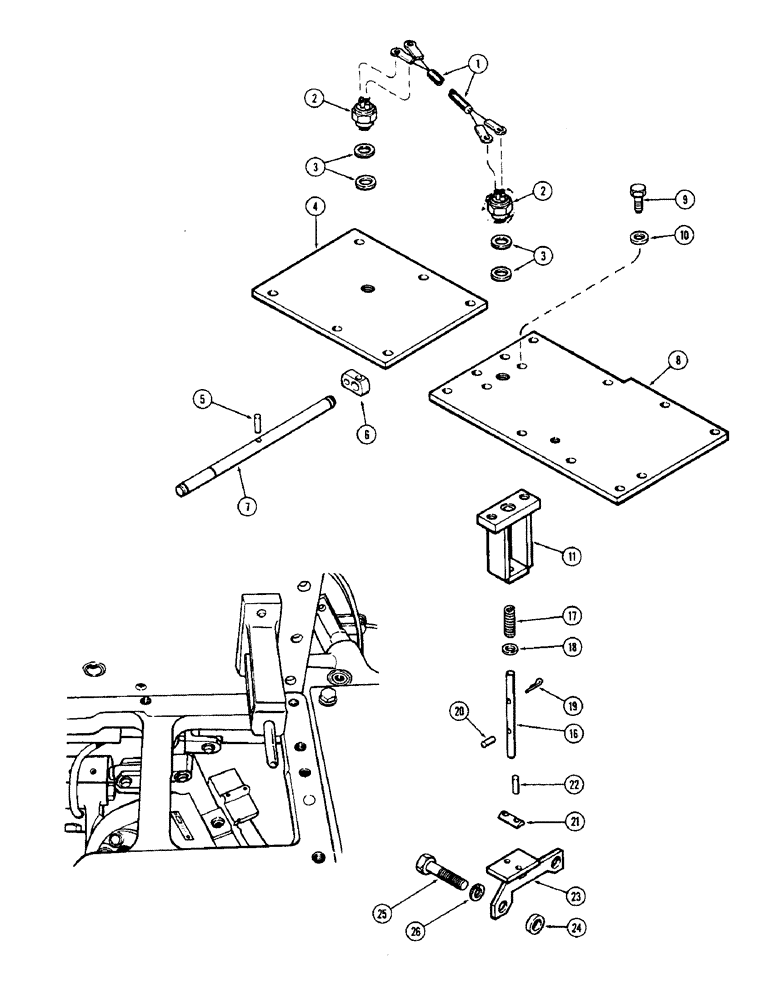

Запчасти Case 580B (140) - NEUTRAL START SWITCH MECHANISM (06) - POWER TRAIN

1

A39741

WIRE - neutral start switches

1шт.

2

A20990

SWITCH

- safety, neutral start

2шт.

3

G49401

SHIM,.005" Thk

Neutral start .005" Thk

1шт.

3

G49402

SHIM,.010" Thk

Neutral start .010" Thk

1шт.

4

A39450

COVER - rear top, torque tube

1шт.

5

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

6

A39513

CAM - neutral start switch

1шт.

7

A39510

SHAFT - cross, dump control

1шт.

8

A39731

COVER - front top, torque tube

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Guide to cover Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

10

195-401

SEALING WASHER,3/8"

WASHER - sealing () 3/8"

2шт.

11

A39732

GUIDE - neutral switch rod

1шт.

16

A39736

ROD

- neutral switch

1шт.

17

A22712

SPRING

- rod

1шт.

18

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

1шт.

19

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20

138-2013

PIN,1/8" x 9/16", Coiled

- roll (1/8 x 9/16")

1шт.

21

A37709

INSERT

CAM - neutral switch

1шт.

22

138-2013

PIN,1/8" x 9/16", Coiled

- roll (1/8 x 9/16")

2шт.

23

A39737

SUPPORT - neutral switch cam

1шт.

24

A39740

SPACER - neutral switch cam support

2шт.

25

13-940

X,Hex, 9/16"-12 x 2 1/2", G5

BOLT - (9/16 x 2-1/2" N.C. hex.)

2шт.

26

92-9

BEARING WASHER,9/16"

2шт.
