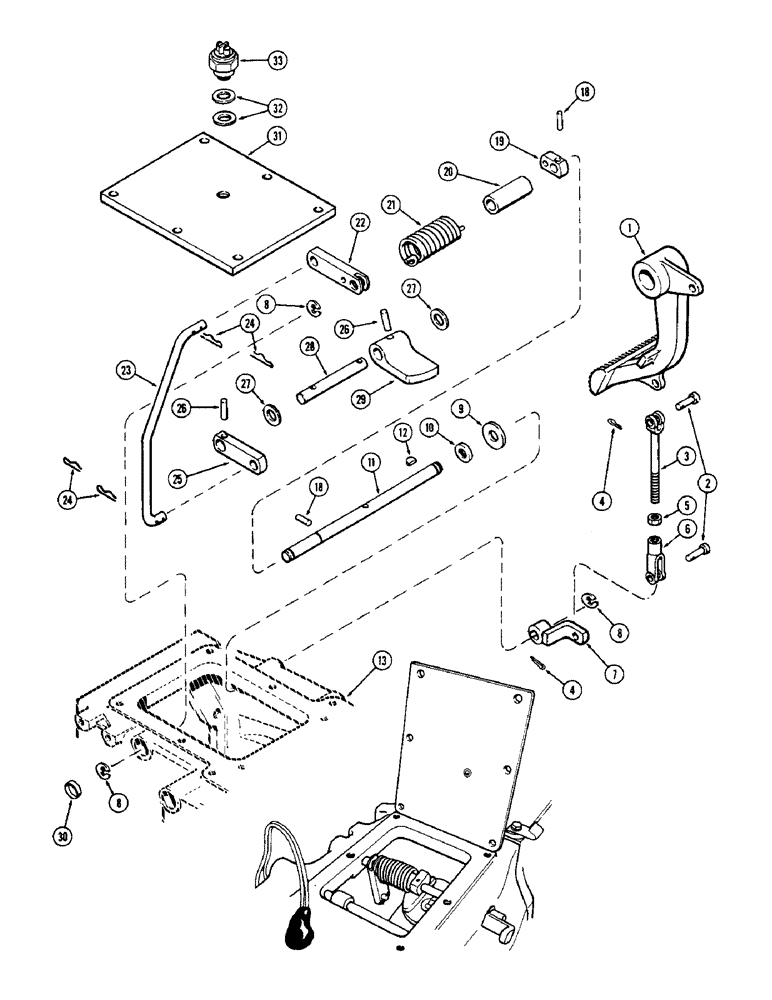

Запчасти Case 580B (138) - DUMP CONTROL LINKAGE (06) - POWER TRAIN

1

A39808

PEDAL

- dump valve

1шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

3

A39781

ROD - dump shaft

1шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. hex., jam)

1шт.

6

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

ROD - (3/8")

1шт.

7

A39782

LEVER - dump shaft

1шт.

8

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

3шт.

9

A31223

WASHER -, Serial Range: lever-shaft

1шт.

10

A39441

SEAL

- oil

1шт.

11

A39510

SHAFT - cross, dump control

1шт.

12

126-8

KEY - (#2 Woodruff) (3/32 x 1/2") #2, 3/32" x 1/2"

1шт.

13

A39301

HOUSING - hydrostatic

1шт.

18

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

2шт.

19

A39513

CAM - neutral start switch

1шт.

20

A39514

CYLINDER END CAP

SPACER - dump control spring

1шт.

21

A39515

SPRING - torsion

1шт.

22

A39511

LEVER - dump shaft control

1шт.

23

A39516

ROD

- dump valve control

1шт.

24

136-107

SPLIT PIN

PIN - cotter, "hair"

4шт.

25

A39517

LINK - control, dump valve

1шт.

26

138-114

LOCK PIN,7/32" x 1", Slotted

Pin, 7/32" x 1", Slotted

2шт.

27

A39519

WASHER

- dump shaft

1шт.

28

A39518

SHAFT - pedal dump

1шт.

29

A39520

LEVER - actuator, dump valve

1шт.

30

41-1016

PLUG,Cup, 1"

- Mercury

1шт.

31

A39450

COVER - rear top, torque tube

1шт.

32

G49401

SHIM,.005" Thk

Neutral start .005" Thk

1шт.

32

G49402

SHIM,.010" Thk

Neutral start .010" Thk

1шт.

33

A20990

SWITCH

- safety, neutral start

1шт.
