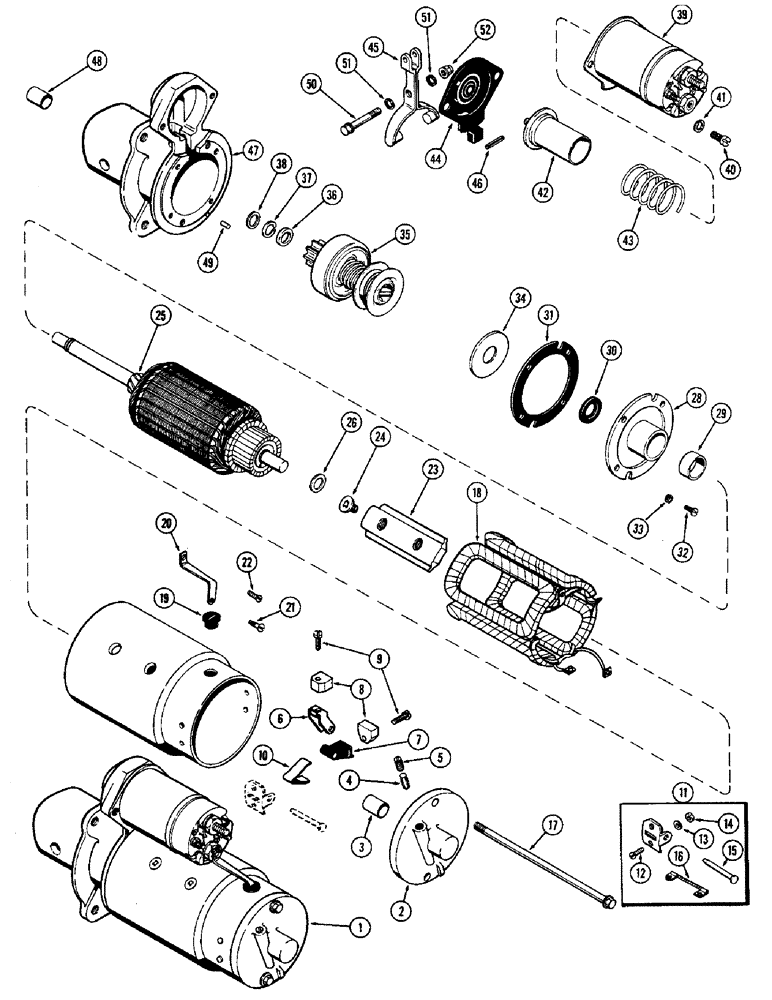

Запчасти Case 580B (127A) - A38413 STARTER, (188) DIESEL ENGINE, POWER SHUTTLE, WITH 9 TOOTH STARTER DRIVE (04) - ELECTRICAL SYSTEMS

1

A38413

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1107874) (See Figure 128) (Order A39839 from Figure 126), Inlcudes: Ref. 2 - 52

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A41870

FRAME

HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 5

1шт.

3

R15020

BUSHING

BUSHING - 9/16 x 11/16 x 29/32"

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - 1/8" P.T., sltd. hd.

1шт.

6

A40217

HOLDER

HOLDER - brush, ground

2шт.

7

R15027

HOLDER

HOLDER - brush, insulated

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush holder

4шт.

10

A25359

SPRING

SPRING - brush tension

2шт.

11

A25379

KIT

SUPPORT KIT - brush holder, Inlcudes: Ref. 12 - 16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - #10 x 1/2" N.C. rd. hd.

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

R15032

X

NUT - #10 N.C. hex.

4шт.

15

A41983

PIN

PIN -, Serial Range: holder-support

1шт.

16

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

17

A25552

BOLT

BOLT - thru

2шт.

18

A25548

COIL

COIL ASSY. - field

1шт.

19

A41980

GROMMET

GROMMET - coil connector (In frame)

1шт.

20

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: coil-solenoid

1шт.

21

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - #10 x 7/16" N.F. rd. hd.

1шт.

22

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

23

A25391

SHOE

SHOE - pole

4шт.

24

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes

8шт.

25

A25547

ARMATURE

ARMATURE

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.

A40223

PLATE

PLATE ASSY. - center bearing, Inlcudes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40223)

1шт.

29

A41982

BUSHING

BEARING - 3/4 x 1-1/4 x 13/32"

1шт.

30

A40228

OIL SEAL

SEAL - oil, 3/4 x 1-1/4 x 1/4"

1шт.

31

A41981

GASKET

GASKET - center bearing

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

SCREW - center bearing to drive housing

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

R15043

WASHER

WASHER - thrust, center bearing

1шт.

35

A41871

DRIVE

DRIVE ASSY. - starter, 9 teeth (See Figure 128 for A43662 rebuild kit)

1шт.

36

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

37

R15048

RING

RING - snap, collar retaining

1шт.

38

A25385

WASHER

WASHER - thrust, starter drive

1шт.

39

G44891

SOLENOID

SOLENOID ASSY. - (See Figure 128)

1шт.

40

A42023

SCREW,#10 - 32 x 1/2"

SCREW - solenoid to drive housing

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

42

A40218

PLUNGER

PLUNGER - solenoid

1шт.

43

A40221

SPRING

SPRING - plunger return

1шт.

44

A40222

BOOT

BOOT - solenoid cover

1шт.

45

A40220

LEVER

LEVER - shift

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

47

A40224

FRAME

HOUSING ASSY. - drive end, Inlcudes: Ref. 48

1шт.

48

A40227

BUSHING

BUSHING - 1/2 x 9/16 x 25/32"

1шт.

49

R15041

SPARE PART PIN - locating, drive end housing

1шт.

50

A25401

SPARE PART PIVOT - shift lever

1шт.

51

A41984

WASHER

SEAL - pivot stud

2шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot stud

1шт.
