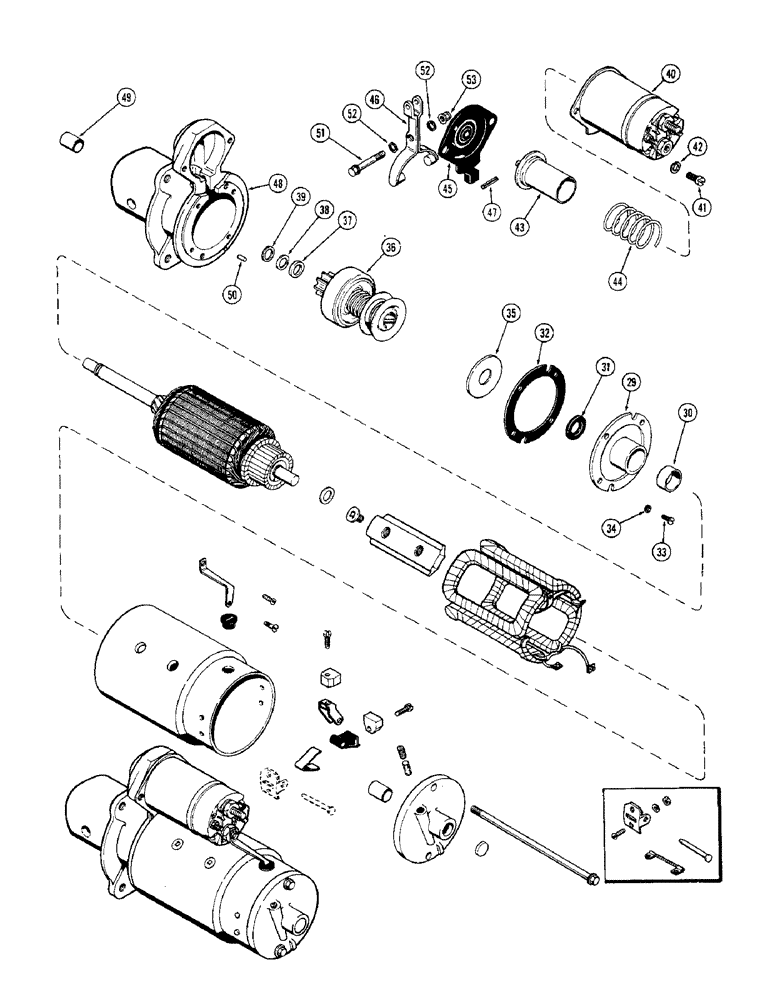

Запчасти Case 580B (125A) - A36583 STARTER, (188) DIESEL ENGINE, MECHANICAL SHUTTLE USED PRIOR TRAC SN 8738684 (04) - ELECTRICAL SYSTEMS

A36583

STARTER MOTOR

STARTER ASSY. - (Cont'd from Figure 124) (See note), Inlcudes: Ref. 29 - 53

1шт.

A40223

PLATE

ASSY. - center bearing, Inlcudes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40223)

1шт.

30

A41982

BUSHING

BEARING - center, 3/4 x 1-1/4 x 13/32"

1шт.

31

A40228

OIL SEAL

SEAL - oil, 3/4 x 1-1/4 x 1/4"

1шт.

32

A41981

GASKET

- center bearing

1шт.

33

A41959

SCREW,#10 - 32 x 3/8"

- center bearing to drive housing

4шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

R15043

WASHER

- thrust, center bearing

1шт.

36

A41871

DRIVE

ASSY. - starter

1шт.

37

R15049

COLLAR

- stop, starter drive

1шт.

38

R15048

RING

- snap, collar retaining

1шт.

39

A25385

WASHER

- thrust, starter drive

1шт.

40

G44891

SOLENOID

ASSY. - (See Figure 128)

1шт.

41

A42023

SCREW,#10 - 32 x 1/2"

- solenoid to drive housing

2шт.

42

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

43

A40218

PLUNGER

- solenoid

1шт.

44

A40221

SPRING

- plunger return

1шт.

45

A40222

BOOT

- solenoid cover

1шт.

46

A40220

LEVER

- shift

1шт.

47

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

48

A40224

FRAME

HOUSING ASSY. - drive end, Inlcudes: Ref. 49

1шт.

49

A40227

BUSHING

- 1/2 x 9/16 x 25/32"

1шт.

50

R15041

PIN - locating, drive end housing

1шт.

51

A40520

BOLT

PIVOT - shift lever

1шт.

52

A42181

SEALING WASHER

SEAL - pivot stud

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

Pivot stud Jam, 5/16"-18, G5

1шт.
