(123A) - A51873 STARTER, (188) DIESEL ENGINE, MECHANICAL SHUTTLE, 1ST USED TRAC SN 838684

Запчасти Case 580B (123A) - A51873 STARTER, (188) DIESEL ENGINE, MECHANICAL SHUTTLE, 1ST USED TRAC SN 838684 (04) - ELECTRICAL SYSTEMS

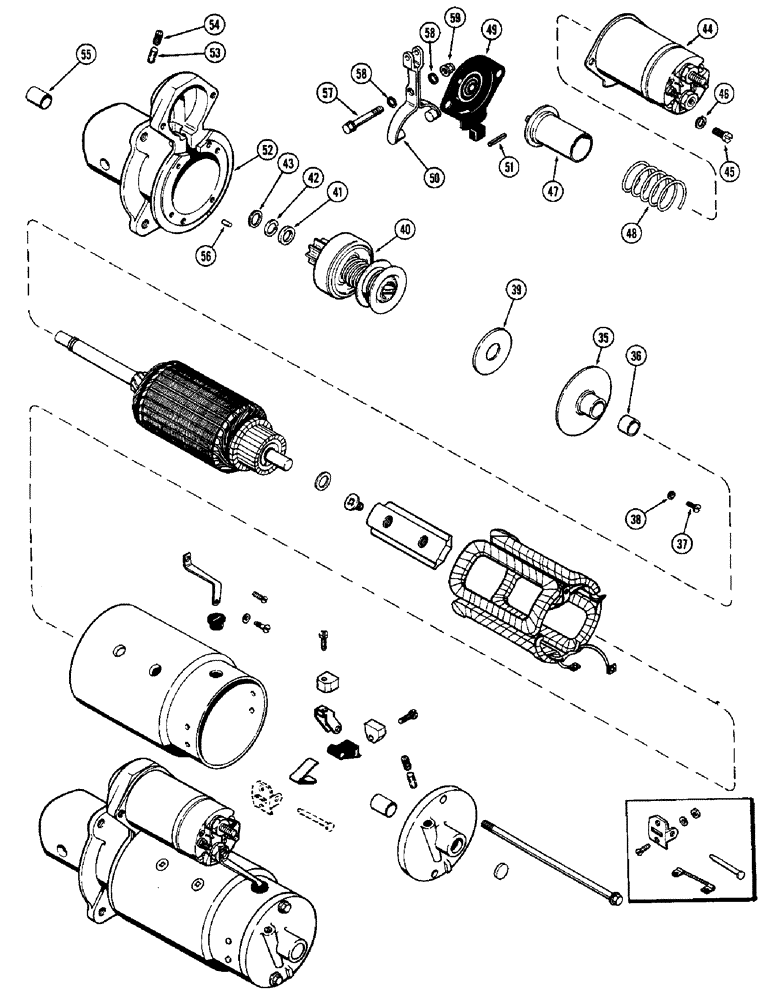

Схема запчастей Case 580B - (123A) - A51873 STARTER, (188) DIESEL ENGINE, MECHANICAL SHUTTLE, 1ST USED TRAC SN 838684 (04) - ELECTRICAL SYSTEMS
42
38
50
37
52
54
58
48
59
44
53
46
36
58
57
55
41
45
56
35
47
43
51
40
39
49
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A51873

STARTER MOTOR

STARTER ASSY. - (Continued from Figure 122), Inlcudes: Ref. 35 - 59

1шт.

A40215

PLATE ASSY.

PLATE ASSY. - center bearing, Inlcudes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40215)

1шт.

36

R15038

BUSHING

BEARING - center plate

1шт.

37

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - bearing plate, #10-32 x 7/16" rd. hd.

2шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

39

R15043

WASHER

WASHER - thrust, center bearing

1шт.

40

A43652

DRIVE

DRIVE ASSY. - starter

1шт.

40

87421540

REMAN-STARTER DRIVE

580B CASE CONSTRUCTION KING TRACTOR W/SHUTTLE TRANSMISSION, DRIVE ASSY, Reman for New PN A43652

1шт.

40

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

41

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

42

R15048

RING

RING - snap, collar retaining

1шт.

43

A25385

WASHER

WASHER - thrust, starter drive

1шт.

44

G44891

SOLENOID

SOLENOID ASSY. - (See Figure 128)

1шт.

45

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

SCREW - solenoid, 1/4 x 1/2" rd. hd.

2шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

47

A40218

PLUNGER

PLUNGER - solenoid

1шт.

48

A40221

SPRING

SPRING - plunger return

1шт.

49

A42126

GASKET

BOOT - solenoid cover

1шт.

50

A40220

LEVER

LEVER - shift

1шт.

51

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

52

A44495

LUG

HOUSING ASSY. - drive end, Inlcudes: Ref. 53 - 55

1шт.

53

R15023

WICK

WICK - oil

1шт.

54

221-1041

PLUG

PLUG - 1/8" P.T. sckt. hd.

1шт.

55

A25387

BEARING

BUSHING - 15/32 x 5/8 x 13/16"

1шт.

56

R15041

SPARE PART PIN - locating, drive end housing

1шт.

57

A40520

BOLT

PIVOT - shift lever

1шт.

58

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

59

425-145

JAM NUT,Jam, 5/16"-18, G5

NUT, , Pivot stud Jam, 5/16"-18, G5

1шт.

Выбрано товаров: 29
