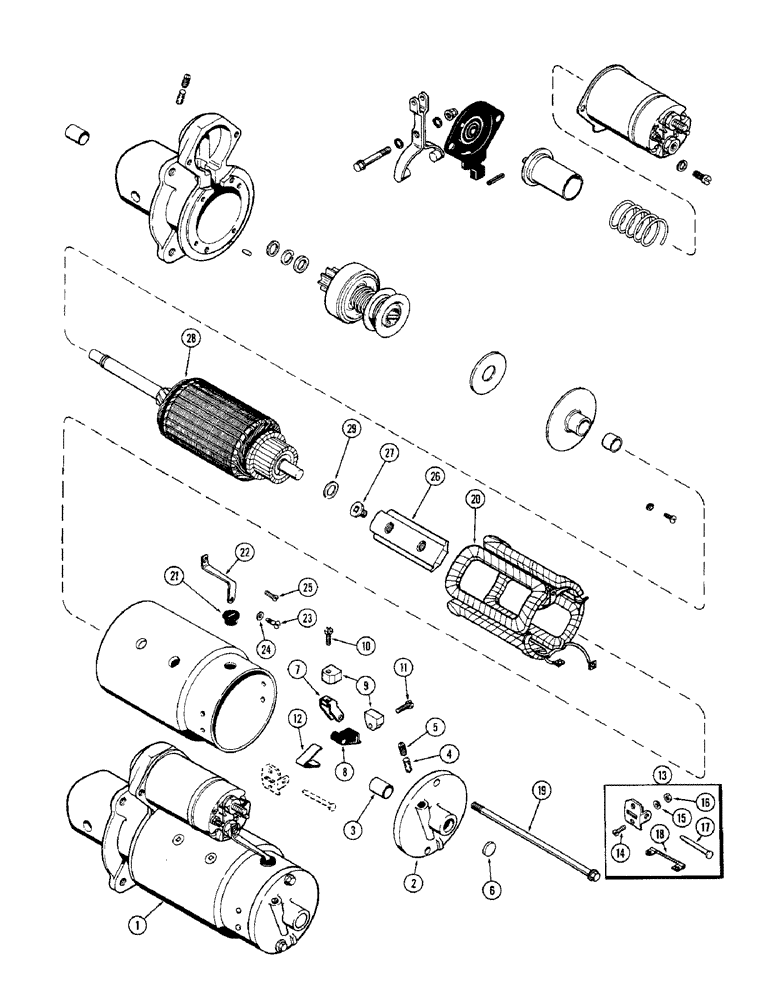

Запчасти Case 580B (122) - A51873 STARTER, (188) DSL ENG, MECHANICAL SHUTTLE, 1ST USEDTRAC SN 8738684 (04) - ELECTRICAL SYSTEMS

1

A51873

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1109190) (Order A39839), Inlcudes: Ref. 2 - 29

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - 1/8" P.T. sltd. hd.

1шт.

6

R15021

PLUG

PLUG - bushing hole

1шт.

7

A40217

HOLDER

HOLDER - brush, ground

1шт.

8

R15027

HOLDER

HOLDER - brush, insulated

1шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

A42124

SCREW,#8 - 32 x 5/8"

SCREW - grounded, Serial Range: brush-holder

2шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - insulated brush to holder

2шт.

12

A25359

SPRING

SPRING - brush tension

2шт.

13

A25379

KIT

SUPPORT KIT - brush holder, Inlcudes: Ref. 14 - 18

2шт.

14

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - #10 x 1/2" N.C., rd. hd.

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

R15032

X

NUT - #10 N.F. hex.

2шт.

17

A41983

PIN

PIN -, Serial Range: holder-support

1шт.

18

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground, #12 wire, 1-5/8" long

1шт.

19

A25552

BOLT

BOLT - thru

2шт.

20

A25319

COIL

COIL ASSY - field

5шт.

21

A41980

GROMMET

GROMMET - coil connector (In frame)

1шт.

22

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: coil-solenoid

1шт.

23

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - #10 x 7/16" N.F. rd. hd.

1шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

25

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

26

A25391

SHOE

SHOE - pole

4шт.

27

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes

8шт.

28

A40219

ARMATURE

ARMATURE

1шт.

29

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.
