Запчасти Case 580B (121G) - FENDER MOUNTED FLOOD AND TAIL LIGHT (04) - ELECTRICAL SYSTEMS

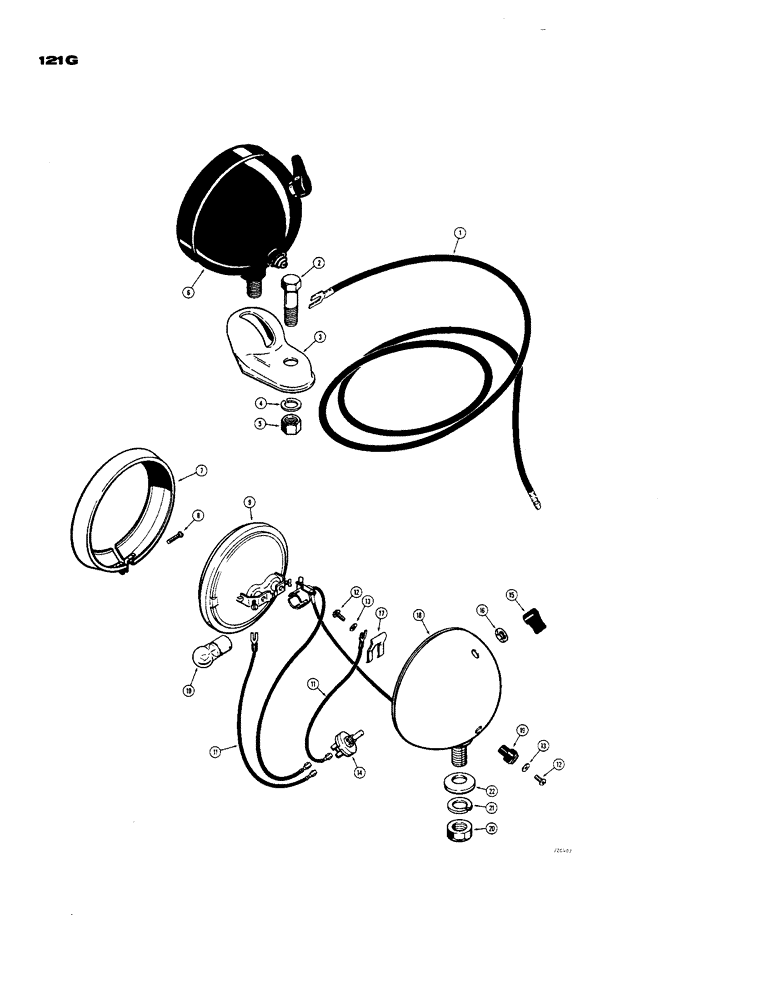

Схема запчастей Case 580B - (121G) - FENDER MOUNTED FLOOD AND TAIL LIGHT (04) - ELECTRICAL SYSTEMS
11
20
3
18
7
15
21
4
6
12
2
11
1
5
19
14
16
6
10
13
9
17
13
22
12

Артикул

Название

Примечание

Количество

1

A37516

WIRE - tractor harness to rear light

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

A34046

BRACKET

- light mounting

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

A20965

LAMP BASE

LIGHT ASSY. - rear, flood & tail, Inlcudes: Ref. 7 - 22

1шт.

7

B50255

MOLDING

MOULDING - light retaining

1шт.

8

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding retainer

1шт.

9

A40855

LAMP BASE

LIGHT - sealed beam

1шт.

10

B50223

BULB

- red, 12 volt (15 C.P.)

1шт.

11

B50273

WIRE - switch

2шт.

12

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8-32 N.C. x 1/4")

2шт.

13

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - med. sect. lock (1/4")

2шт.

14

B50275

SWITCH

- light (Order A43182 when stock is depleted)

1шт.

15

B50310

SWITCH

HANDLE - switch (Order A43182)

1шт.

16

A39888

NUT

- 3/8-32, switch retainer (Replaced B50224)

1шт.

17

10927

SPRING

- terminal

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

19

B50293

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

22

10923

WASHER

- light mounting

1шт.

A43182

KIT

- switch knob & terminals

1шт.

Выбрано товаров: 23
