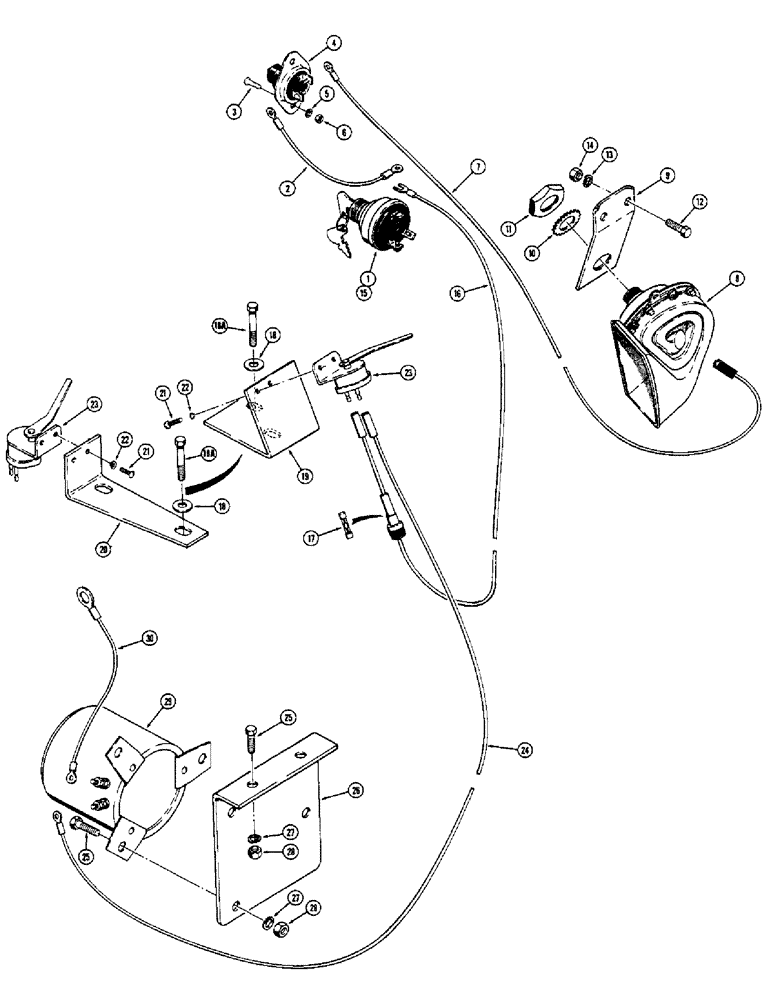

Запчасти Case 580B (121A) - HORN AND BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

A24511

SWITCH

- ignition

1шт.

2

NLS

NO LONGER SERVICED

WIRE - ignition switch to horn button

1шт.

3

173-234

SCREW - machine, round head (#5-40 N.C. x 1/2")

2шт.

4

A36948

SWITCH

- horn control

1шт.

5

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

6

129-14

NUT,#5-40

2шт.

7

A36949

WIRE - horn, Serial Range: button-horn

1шт.

8

A19581

HORN

- warning, 12 volt

1шт.

9

A36946

BRACKET

- horn mounting

1шт.

10

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - lock, external Shakeproof

1шт.

11

L30866

LOCK NUT

- special, Serial Range: horn-bracket

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

A24511

SWITCH

- ignition w/key (Gas)

1шт.

16

D51824

WIRE - ignition switch to alarm switch

1шт.

17

223-14

FUSE,10 Amp, Type SFE

- protective, 14 amp

1шт.

18

195-25

WASHER,3/8"

- plain () 2 used with D51822 bracket - 6 used with D51821 bracket (If required) 3/8"

2-6шт.

18a

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

19

D51822

BRACKET - switch mtg. (Used on mechanical shift models)

1шт.

20

D51821

BRACKET

- switch mounting (Used on power shuttle models)

1шт.

21

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, round head (#10-32 N.C. x 7/16")

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

23

A33977

SWITCH

- backup alarm

1шт.

24

D51823

ELECTRICAL WIRE

WIRE - alarm, Serial Range: switch-alarm

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

26

D51906

BRACKET

- mounting, alarm

1шт.

27

92-5

LOCK WASHER,5/16"

5шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16"-18 N.C.)

5шт.

29

D51820

ALARM

- backup safety

1шт.

30

D51905

ELECTRICAL WIRE

WIRE - ground, alarm

1шт.
