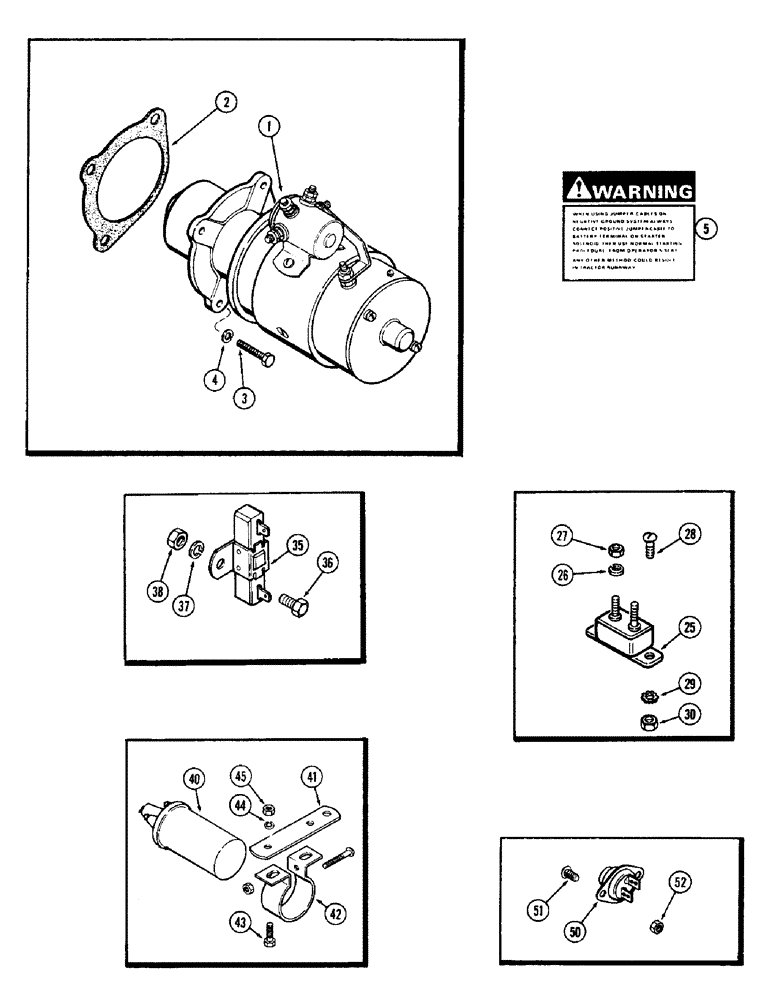

Запчасти Case 580B (120) - ELECTRICAL EQUIPMENT MOUNTING, (159 & 188) SPARK IGNITION ENG. (04) - ELECTRICAL SYSTEMS

1

A36584

STARTING MOTOR

STARTER ASSY. - (See Figure 130)

1шт.

1

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

2

G46873

GASKET

GASKET - starter (Power shuttle)

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

4

193-72

LOCK WASHER

WASHER - Shakeproof, 3/8" int./ext.

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

321-2788

DECAL

DECAL - warning (1st used trac. ser. no. 8742574)

1шт.

25

A22877

BREAKER,40A

BREAKER - circuit

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27

129-37

NUT,#10-32

NUT, #10-32

2шт.

28

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - #8 x 3/8" N.C. rd. hd.

2шт.

29

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

30

129-16

NUT,#8-32

NUT, #8-32

2шт.

35

F22316

RESISTOR,75 Ohms 0.2 Amps DC

RESISTOR - 75 OHM

1шт.

36

113-24

BOLT - 1/4 x 5/8" N.C. hex.

1шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

1шт.

40

A40778

COIL

COIL ASSY. - ignition

1шт.

41

G11705

BRACKET

BRACKET - coil mounting

1шт.

42

G46106

BRACKET

CLAMP ASSY. - coil

1шт.

43

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

BOLT - 5/16 x 3/4" N.F. hex. (Mech. shuttle)

2шт.

43

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT, (Power shuttle) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

50

A36948

SWITCH

SWITCH - starter

1шт.

51

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

SCREW - #10 x 1/2" N.C. Phillips hd.

2шт.

52

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10 N.C. hex. Keps

2шт.
