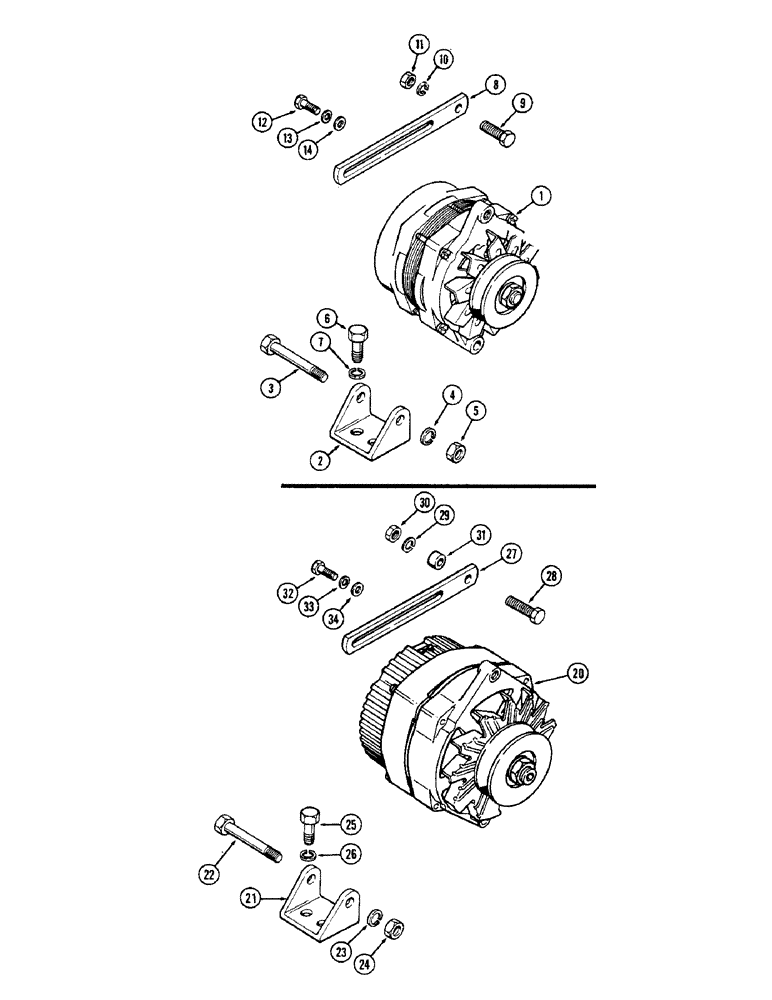

Запчасти Case 580B (119A) - ALTERNATOR MOUNTING, (159 & 188) SPARK IGNITION ENGINES PRESTOLITE, DELCO (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
ALTERNATOR ASSY. - Prestolite (See Figure 132)
1шт.
2
A38492
BRACKET
- mounting
1шт.
3
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
5
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
6
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
2шт.
7
92-6
LOCK WASHER,3/8"
WASHER - lock, 3/8"
2шт.
8
A59167
STRAP
- alternator adjusting
1шт.
9
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
10
92-6
LOCK WASHER,3/8"
WASHER - lock, 3/8"
1шт.
11
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
12
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
13
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
14
195-103
WASHER,5/16"
- 3/8 x 7/8 x 5/64"
1шт.
20
REF
INSTRUCTION
ALTERNATOR ASSY. - delco (See Figure 133A)
1шт.
21
A38492
BRACKET
- mounting,delco
1шт.
22
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
Delco Hex, 3/8"-16 x 3", G5
1шт.
23
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Delco 3/8"
1шт.
24
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , Delco 3/8"-16, G5
1шт.
25
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Delco Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
26
92-6
LOCK WASHER,3/8"
WASHER - lock, , Delco 3/8"
2шт.
27
A59167
STRAP
- alternator adjusting,delco
1шт.
28
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Delco Hex, 3/8"-16 x 1 3/4", G5
1шт.
29
92-6
LOCK WASHER,3/8"
WASHER - lock, , Delco 3/8"
1шт.
30
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.,delco
1шт.
31
A37418
SPACER
-, Serial Range: strap-cover,delco
1шт.
32
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, Delco
1шт.
33
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Delco 5/16"
1шт.
34
195-103
WASHER,5/16"
- 3/8 x 7/8 x 5/64",delco
1шт.
Выбрано товаров: 29
