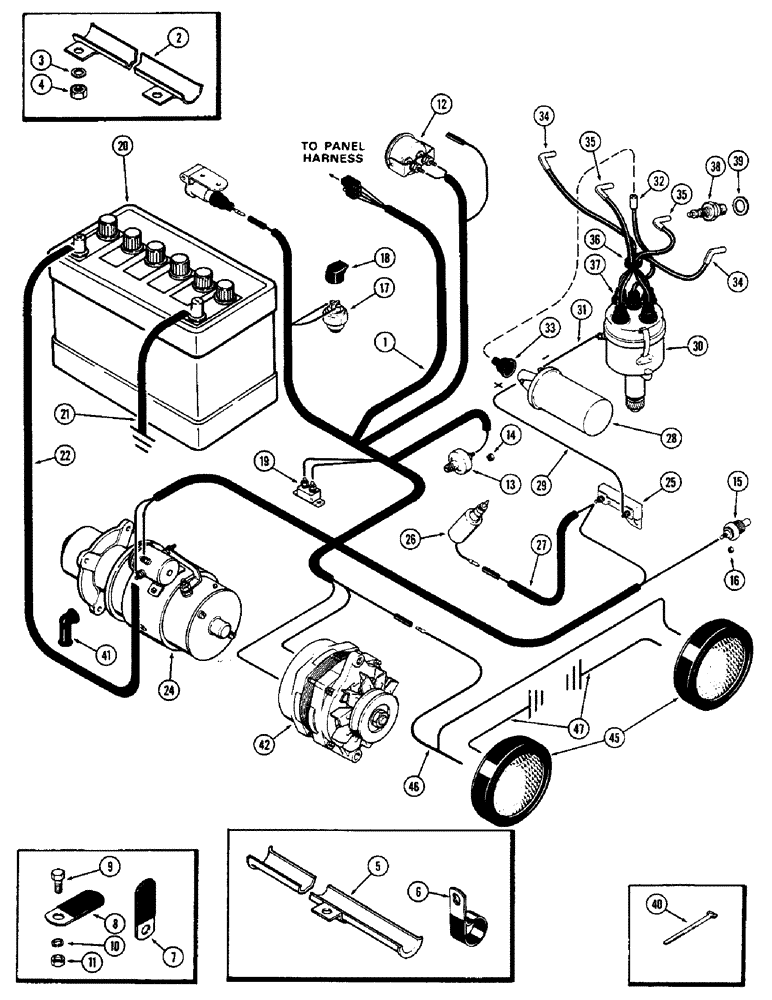

Запчасти Case 580B (118) - ELECTRICAL EQUIPMENT AND WIRING, (159 & 188) SPARK IGNITION ENG. (04) - ELECTRICAL SYSTEMS

1

A39392

HARNESS

ASSY. - main wiring (Use w/Prestolite alternator)

1шт.

1

A135774

HARNESS

ASSY. - main wiring (Use w/Delco alternator)

1шт.

2

A37506

CONDUIT - wire

1шт.

3

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

A51269

CONDUIT - wiring harness (Replaces A37506)

1шт.

6

49838

CLAMP

- front fuel tank stud (Used w/51269)

1шт.

7

A37179

CLIP

- harness

2шт.

8

A39394

CLIP - harness & breather hose

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

12

A39802

AMMETER

- 60 amp.

1шт.

13

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps

1шт.

15

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps

1шт.

17

A20990

SWITCH

- safety, neutral start

1шт.

18

A61028

BOOT

- switch

1шт.

19

A22877

BREAKER,40A

- circuit (See Figure 120)

1шт.

20

F22631

DRY BATTERY

- 12 volt (Dry)

1шт.

20

D60337

BATTERY - 12 volt (Wet-charged)

1шт.

21

A38414

STRAP

- battery ground

1шт.

22

A51549

CABLE

- battery to starter solenoid (Replaces A38415)

1шт.

24

REF

INSTRUCTION

STARTER ASSY. - (See Figure 120)

1шт.

25

A24504

RESISTOR

- ballast

1шт.

26

A38253

SOLENOID

ASSY. - (Mech. shuttle) (See Figure 78)

1шт.

26

A137011

SOLENOID

ASSY. - (Power shuttle) (See Figure 108) (Replaces A39569)

1шт.

27

A38244

WIRE -, Serial Range: resistor-solenoid

1шт.

28

A40778

COIL

ASSY. - ignition

1шт.

29

A38832

ELECTRICAL WIRE

WIRE - resistor to coil (Positive terminal)

1шт.

30

A18461

DISTRIBUTOR

ASSY. - (See Figure 134)

1шт.

31

G13085

ELECTRICAL WIRE

WIRE - distributor to coil (Negative terminal)

1шт.

32

A62857

ELECTRICAL WIRE

WIRE -, Serial Range: coil-distributor

1шт.

33

G46803

BOOT

NIPPLE - hi-tension coil wire

1шт.

34

A39186

CABLE

WIRE - #1 & #4 spark plugs

2шт.

35

A39187

CABLE

WIRE - #2 & #3 spark plugs

2шт.

36

A30109

WASHER

RING - tie, hi-tension wires

1шт.

37

A29338

COVER

NIPPLE - hi-tension distributor wires

5шт.

38

G44840

SPARK PLUG

- ignition, Inlcudes: Ref. 39

4шт.

39

G46839

GASKET

- spark plug

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - carb. wire to oil press. wire

1шт.

41

A21753

CAP

NIPPLE - starter solenoid cable

1шт.

42

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 119A)

1шт.

45

D30243

LAMP

LIGHT ASSY. - front head (See Figure 121C)

2шт.

46

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.

47

A11768

ELECTRICAL WIRE

CABLE - ground, headlight

2шт.
