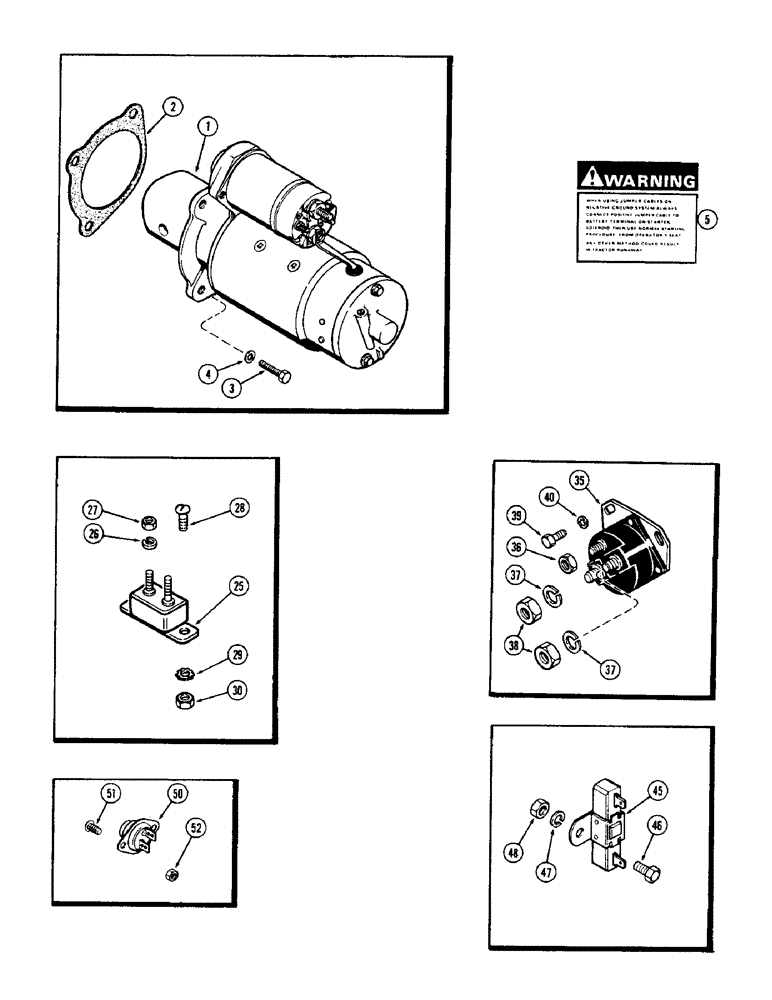

Запчасти Case 580B (114) - ELECTRICAL EQUIPMENT MOUNTING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSY. - (Mech. shuttle) (See Figures 122-123A)

1шт.

1

REF

INSTRUCTION

STARTER ASSY. - (Power shuttle) (See Figures 126, 127A)

1шт.

2

G46873

GASKET

- starter (Power shuttle)

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

4

193-72

LOCK WASHER

- Shakeproof, 3/8" int.

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

321-2788

DECAL

- warning (1st used trac. ser. no. 8742574)

1шт.

25

A22877

BREAKER,40A

- circuit

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27

129-37

NUT,#10-32

2шт.

28

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" N.C. rd. hd.

2шт.

29

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

30

129-16

NUT,#8-32

2шт.

35

A39079

SOLENOID

- manifold heater

1шт.

36

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

2шт.

39

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

40

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

45

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

46

113-24

BOLT - 1/4 x 5/8" N.C. hex.

1шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

50

A36948

SWITCH

- starter

1шт.

51

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. Phillips hd.

2шт.

52

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10 N.C. hex. Keps

2шт.
