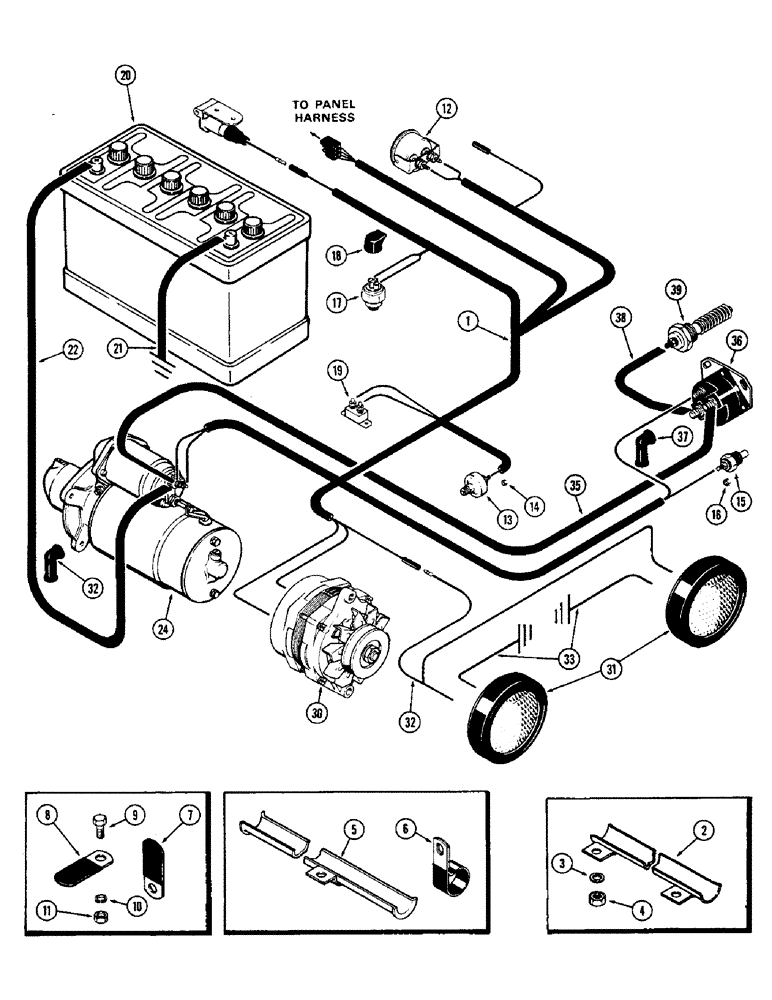

Запчасти Case 580B (112) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A39392

HARNESS

ASSY. - main wiring (Use w/Prestolite alternator)

1шт.

1

A135774

HARNESS

ASSY. - main wiring (Use w/Delco alternator)

1шт.

2

A37506

wire (w/ring) (Order A51269)

1шт.

3

195-521

WASHER,5/16", SAE

11/32 x 11/16 x 1/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

A51269

wiring harness (Replaces A37506)

1шт.

6

49838

CLAMP

front fuel tank stud (Used w/A51269)

1шт.

7

A37179

CLIP

harness

3шт.

8

A39394

harness & breather hose

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

1шт.

12

A39802

AMMETER

- 60 amp.

1шт.

13

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

#10 N.F. hex. Keps

1шт.

15

A21462

SENDER UNIT

engine temperature

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

#10 N.F. hex., Keps

1шт.

17

A20990

SWITCH

- safety, neutral start

1шт.

18

A61028

BOOT

switch

1шт.

19

A22877

BREAKER,40A

circuit (See Figure 114)

1шт.

20

A38411

DRY BATTERY

12 volt (Dry)

1шт.

20

L49990

X

BATTERY - 12 volt (Wet-charged)

1шт.

21

A38414

STRAP

battery ground

1шт.

22

A51549

CABLE

battery to solenoid (57") (Replaces A38415)

1шт.

24

REF

INSTRUCTION

STARTER ASSY. - (See Figure 114)

1шт.

30

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 115A)

1шт.

31

D30243

LAMP

LIGHT ASSY. - front head (See Figure 121C)

2шт.

32

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.

33

A11768

ELECTRICAL WIRE

CABLE - ground, headlight

2шт.

35

A36896

CABLE PULLING GRIP

starter solenoid to heater solenoid, maifold

1шт.

36

A39079

SOLENOID

heater (See Figure 114), manifold

1шт.

37

A21753

CAP

NIPPLE - solenoid terminals, manifold heater

2шт.

38

A21483

CABLE

solenoid to , manifold heater

1шт.

39

A37775

HEATER

ASSY. - manifold (See Figure 15A)

1шт.
