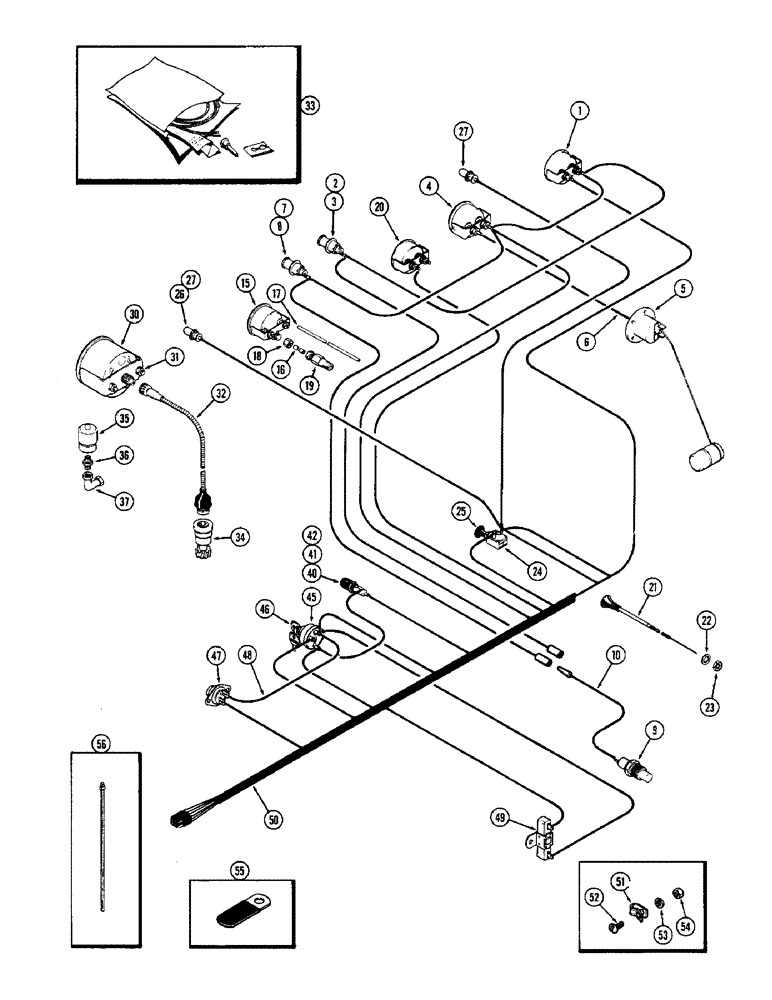

Запчасти Case 580B (110) - INSTRUMENTS AND WIRING, (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A39804

GAUGE

- engine temperature

1шт.

2

A24084

LAMP

ASSY. - wiring, engine oil pressure, Inlcudes: Ref. 3

1шт.

3

A24354

BULB

- oil pressure lamp

1шт.

4

A39805

GAUGE

- fuel

1шт.

5

A23480

SENDER UNIT

SENDER - fuel level

1шт.

6

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to sending unit

1шт.

7

A39395

LIGHT ASSY.

LAMP ASSY. - converter oil temp. (Power shuttle), Inlcudes: Ref. 8

1шт.

8

A24354

BULB

- oil pressure lamp

1шт.

9

A33241

SWITCH

SENDER - converter temperature (Power shuttle)

1шт.

10

A36677

ELECTRICAL WIRE

WIRE -, Serial Range: sender-lamp

1шт.

15

A39849

ELECTRICAL GAUGE

GAUGE - converter oil pressure (Power shuttle) (Replaces A39800)

1шт.

16

A9366

TUBE

- converter oil pressure

1шт.

17

A35903

LOOM

- oil pressure tube

1шт.

18

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - tube to gauge

1шт.

19

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR - tube to valve

1шт.

20

A39802

AMMETER

- 60 amp.

1шт.

21

A38454

CONTROL LEVER

CONTROL - fuel shut-off

1шт.

22

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

23

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.F. hex. jam

1шт.

24

A39887

SWITCH

- lights (Replaced G13142)

1шт.

A39887 switch - This part does not include the retaining nut (A39888).

1шт.

25

A137204

KNOB

- light switch (Replaces G13141)

1шт.

26

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Inlcudes: Ref. 27

2шт.

27

A22349

BULB

- panel lamp

1шт.

30

A39806

TACHOMETER

ASSY.

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps

2шт.

32

A39403

CABLE

ASSY. - tachometer drive, Inlcudes: Ref. 33

1шт.

33

A24523

KIT

CABLE - replacement core (Cut to length required)

1шт.

34

A38942

DRIVE ASSY.

- tachometer (In block)

1шт.

35

A59568

INDICATOR

- air cleaner

1шт.

36

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

- indicator to mounting block

1шт.

37

222-5113

FITTING,90 Degree, 7/16"-24 x 1/8" NPTF

- 90 degrees, tube mounting block

1шт.

40

A22874

HOLDER

ASSY. - fuse, Inlcudes: Ref. 41

1шт.

41

NLS

NO LONGER SERVICED

CAP - fuse holder

1шт.

42

223-20

FUSE,20 Amp, Type SFE

- 20 amp.

1шт.

45

A24510

SWITCH

ASSY - starting w/key (Diesel)

1шт.

46

A24509

KEY

- ignition switch (Set of 2)

1шт.

47

A36948

SWITCH

- starter

1шт.

48

A39405

ELECTRICAL WIRE

WIRE - starter switch to starter botton

1шт.

49

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm.

1шт.

50

A39393

HARNESS

- instrument wire

1шт.

51

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tach. cable to fuel tank

1шт.

52

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

53

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

54

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

55

A39394

CLIP - harness wire

2шт.

56

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

1шт.
