Запчасти Case 580B (108) - CARBURETOR, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

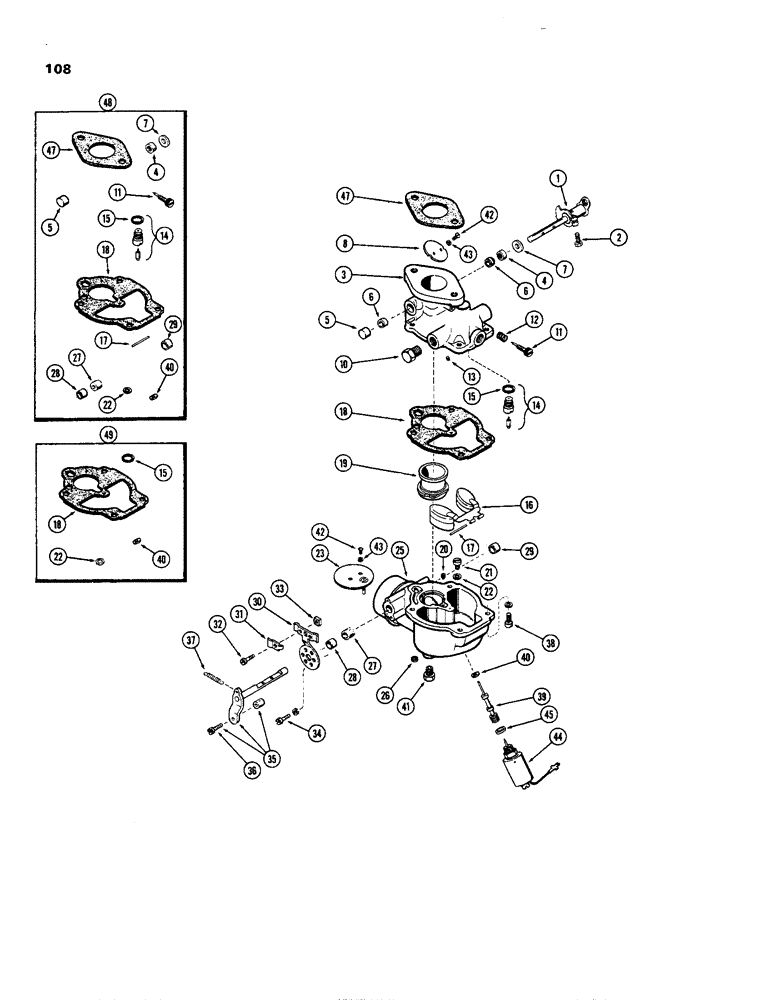

Схема запчастей Case 580B - (108) - CARBURETOR, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
15
43
15
1
22
18
40
13
26
40
28
47
49
2
12
8
7
39
3
42
36
31
21
27
22
22
39
6
37
5
11
29
14
4
17
41
7
20
5
30
16
44
45
34
43
14
42
15
18
19
28
27
40
10
4
23
33
47
17
6
29
11
35
48
32
18
25

Артикул

Название

Примечание

Количество

A39568

CARBURETOR

ASSY., Inlcudes: Ref. 1 - 43

1шт.

1

A43459

SHAFT

ASSY. - throttle

1шт.

2

B51581

SCREW - stop

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A39568)

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

A40612

PLUG

- throttle shaft hole

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B59360

RETAINER

WASHER - throttle shaft seal retaining

1шт.

8

B51211

PLATE

- throttle

1шт.

10

B51541

PLUG

- fuel inlet

2шт.

11

A41389

SCREW

NEEDLE - idle adjusting

1шт.

12

B51404

SPRING

- idle needle

1шт.

13

B51306

JET

- idle

1шт.

14

A40938

VALVE

& SEAT - fuel (Matched)

1шт.

15

B51618

WASHER

- fuel valve seat

1шт.

16

B51359

FLOAT

- fuel lever

1шт.

17

B51433

AXLE

- float

1шт.

18

B51471

GASKET

- bowl

1шт.

B51471 bowl gasket - This part is used on carb model #267 and has V in venturi hole. It is slightly larger than B51470 (used on carb model #67) which does not have V in venturi hole (see Figure 78).

1шт.

19

A25170

VENTURI

1шт.

20

B51338

TUBE

JET - well vent

1шт.

21

B51287

JET - main

1шт.

22

B51619

WASHER

- main jet

1шт.

23

B51365

PLATE

- choke

1шт.

25

B51180

BOWL

ASSY. - fuel, Inlcudes: Ref. 26 - 29

1шт.

26

B51442

FILTER

DISC - drain

1шт.

27

B51533

WASHER

- packing, choke shaft

1шт.

28

B51439

RETAINER

- packing

1шт.

29

B51509

PLUG

- choke shaft hole

1шт.

30

A42350

BRACKET ASSY. - choke, Inlcudes: Ref. 31 - 33

1шт.

31

B51403

CLIP

- choke rod

1шт.

32

B51580

SCREW

- clip

1шт.

33

129-76

SQUARE NUT,#8 - 36

- clip screw

1шт.

34

B51458

SCREW,#8 - 32 x 0.37"

- bracket

2шт.

35

A43458

SHAFT ASSY . - choke, Inlcudes: Ref. 36

1шт.

36

B51579

SCREW - swivel, choke rod

1шт.

37

B51412

SPRING

- return, choke lever

1шт.

38

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

39

B51323

JET

- discharge

1шт.

40

B51610

WASHER

- discharge jet

1шт.

41

B51541

PLUG

- bowl drain

1шт.

42

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- throttle plate

4шт.

43

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

44

A137011

SOLENOID

ASSY. - (Replaces A39569)

1шт.

45

B51707

GASKET

- solenoid mounting

1шт.

47

B51459

GASKET

-, Serial Range: carburetor-manifold

1шт.

48

CASA40940

KIT

- carburetor repair (Incl. items 4, 5, 7, 11, 14, 15, 17, 18, 22, 27 thru 29, 40 & 47)

1шт.

49

B51496

GASKET

KIT - carburetor gasket (Incl. items 15, 18, 22 & 40)

1шт.
