Запчасти Case 580B (100) - GOVERNOR AND TIMING GEAR COVER, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

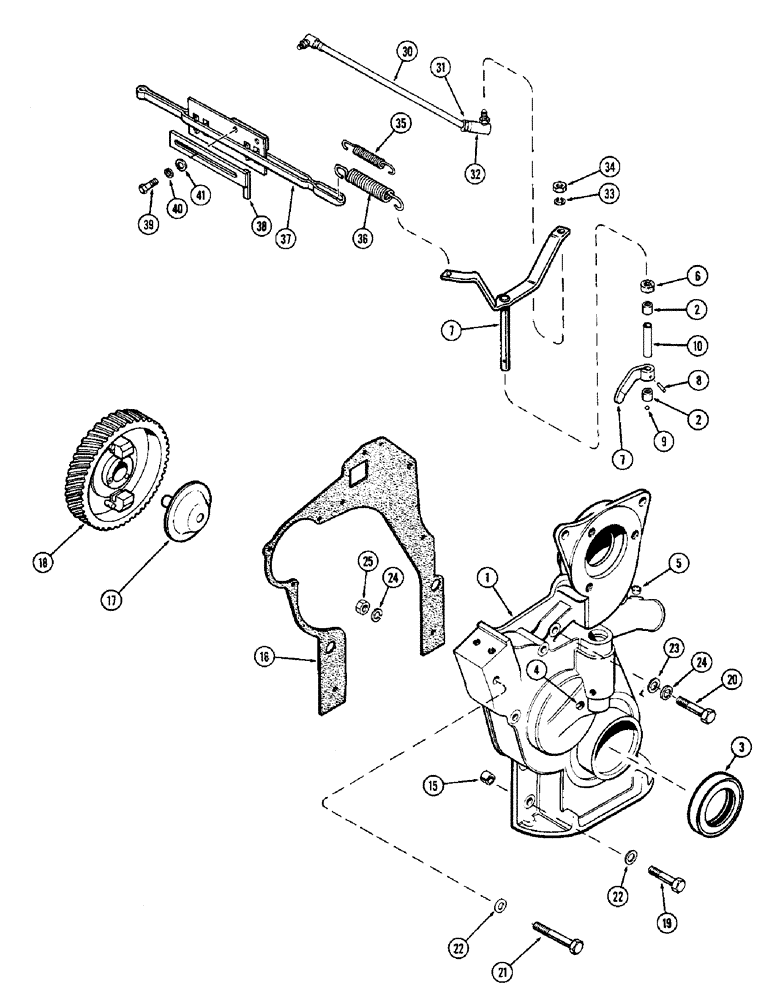

Схема запчастей Case 580B - (100) - GOVERNOR AND TIMING GEAR COVER, (188) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
2
35
15
3
22
32
19
40
9
30
38
4
24
10
8
5
31
16
33
37
17
1
36
7
18
23
34
39
41
25
7
21
20
6
24
2
22

Артикул

Название

Примечание

Количество

1

A39102

COVER

ASSY. - timing gear, Inlcudes: Ref. 2 - 5

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

3

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

4

A30016

FITTING

PLUG - 1/8" P.T., sltd. hd.

1шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T., hex. sckt. hd.

1шт.

6

A30011

SEAL

- dust, governor shaft

1шт.

7

A51754

LEVER

SHAFT & LEVER ASSY. - governor control (Repl. A39095), Inlcudes: Ref. 8

1шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

9

211-5

BALL,3/16" Dia

- thrust, governor shaft

1шт.

10

A30012

SPACER

- thrust, governor shaft

1шт.

15

A29442

RING

- dowel, Serial Range: cover-block

2шт.

16

A38227

GASKET

-, Serial Range: cover-block

1шт.

17

A29957

SHAFT

ASSY. - governor

1шт.

18

G37066

GEAR

- camshaft, w/governor weights

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

1шт.

20

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

21

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

22

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

5шт.

23

G49400

WASHER

- 13/32 x 1-5/32 x 10 ga.

1шт.

24

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

10шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

30

G45228

ROD

ASSY. - governor to carburetor, Inlcudes: Ref. 31 and 32

1шт.

31

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

32

A10329

BALL JOINT,1/4" - 28 x 1"

- rod

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

35

A37005

SPRING

- inner, governor speed (Red)

1шт.

36

G48511

SPRING

- outer, governor speed (Black)

1шт.

37

G45793

ROD

- governor control

1шт.

38

G45792

STOP

GUIDE - control rod

1шт.

39

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

41

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

Выбрано товаров: 35
