Запчасти Case 580B (078) - CARBURETOR, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

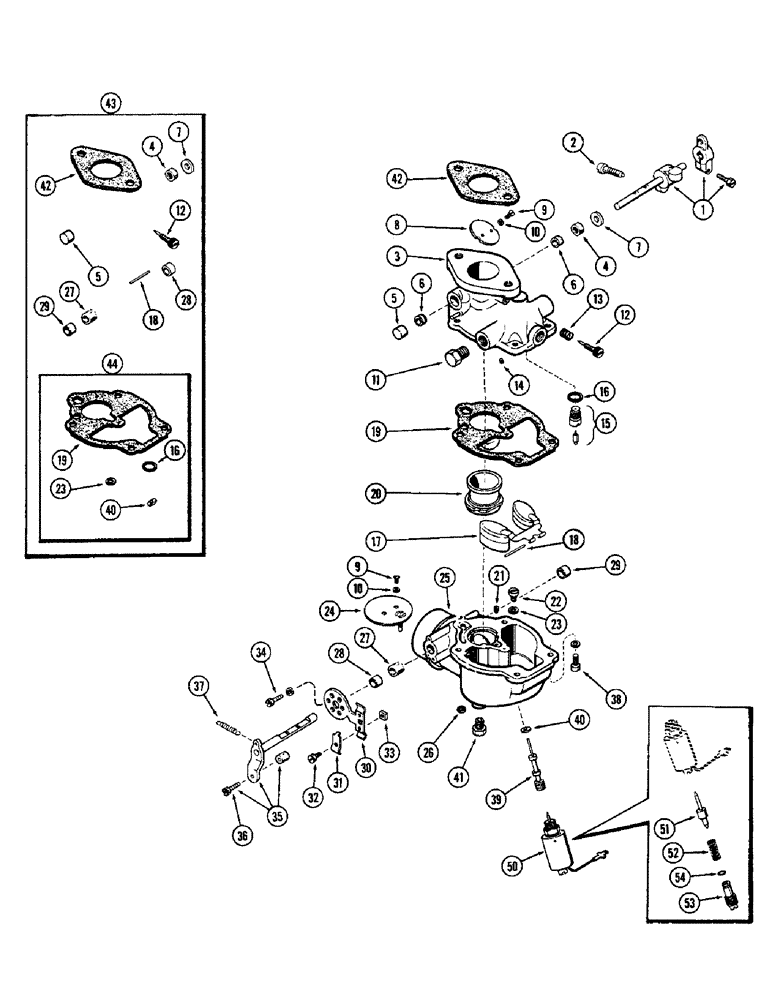

Схема запчастей Case 580B - (078) - CARBURETOR, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
32
7
33
30
31
5
38
17
34
27
22
9
24
1
42
4
29
7
28
18
23
9
14
3
35
18
50
12
12
29
13
27
51
28
11
6
40
43
44
54
6
23
4
16
42
52
15
19
25
53
39
36
8
28
37
19
21
2
41
10
40
5
10
26
16

Артикул

Название

Примечание

Количество

CASA38249

CARBURETOR

ASSY., Inlcudes: Ref. 1 - 41

1шт.

1

B51245

SHAFT

ASSY. - throttle

1шт.

2

B51581

SCREW - stop

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A38249)

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

A40612

PLUG

- throttle shaft hole

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B59360

RETAINER

WASHER - throttle shaft seal retaining

1шт.

8

B51211

PLATE

- throttle

1шт.

9

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- plate, #6-32 x 1/4" pan hd. (Replaces A24896)

4шт.

10

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

11

B51541

PLUG

- fuel inlet

2шт.

12

B51265

HOSE

NEEDLE - idle adjusting

1шт.

13

B51404

SPRING

- idle needle

1шт.

14

A25174

JET

- idle

1шт.

15

A40186

VALVE & SEAT - fuel (Matched), Inlcudes: Ref. 16

1шт.

16

B51618

WASHER

- fuel valve seat

1шт.

17

B51359

FLOAT

1шт.

18

B51433

AXLE

- float

1шт.

19

B51470

GASKET

- bowl

1шт.

B51470 bowl gasket - Artwork is not correct. B51470 (used on carb model #67 does not have V in venturi hole. Gasket showing is B51471 (see Figure 108) which is used on carb model #267 (slightly larger than B51470 and has V in venturi hole.

1шт.

20

A25187

VENTURI

1шт.

21

B51340

JET

- well vent

1шт.

22

A25173

JET

- main

1шт.

23

B51619

WASHER

- main jet

1шт.

24

B51365

PLATE

- choke

1шт.

25

B51180

BOWL

ASSY. - fuel, Inlcudes: Ref. 26 - 29

1шт.

26

B51442

FILTER

DISC - drain

1шт.

27

B51533

WASHER

- packing, choke shaft

1шт.

28

B51439

RETAINER

- packing

1шт.

29

B51509

PLUG

- choke shaft hole

1шт.

30

B51400

SUPPORT

BRACKET ASSY. - choke, Inlcudes: Ref. 31 - 33

1шт.

31

B51403

CLIP

_ choke rod

1шт.

32

B51580

SCREW

- clip

1шт.

33

129-76

SQUARE NUT,#8 - 36

- clip screw

1шт.

34

B51458

SCREW,#8 - 32 x 0.37"

- bracket

2шт.

35

B59632

SHAFT

ASSY. - choke, Inlcudes: Ref. 36

1шт.

36

B51579

SCREW - swivel, choke rod

1шт.

37

B51412

SPRING

- return, choke lever

1шт.

38

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

39

B51323

JET

- discharge

1шт.

40

B51610

WASHER

- discharge jet

1шт.

41

B51541

PLUG

- bowl drain

1шт.

42

B51459

GASKET

-, Serial Range: carburetor-manifold

1шт.

43

A41085

KIT

- carburetor repair (Incl. items 4, 5, 7, 11, 15,18, 22, 27 thru 29, 40, 42 & 44)

1шт.

44

B51496

GASKET

KIT - carburetor overhaul (Incl. items 15, 18, 22 & 40)

1шт.

50

A38253

SOLENOID

ASSY., Inlcudes: Ref. 51

1шт.

51

A41560

PLUNGER

- solenoid

1шт.

52

A41557

SPRING

- plunger

1шт.

53

A41559

SCREW

- lead

1шт.

54

A41558

O-RING

"O"RING - screw

1шт.
